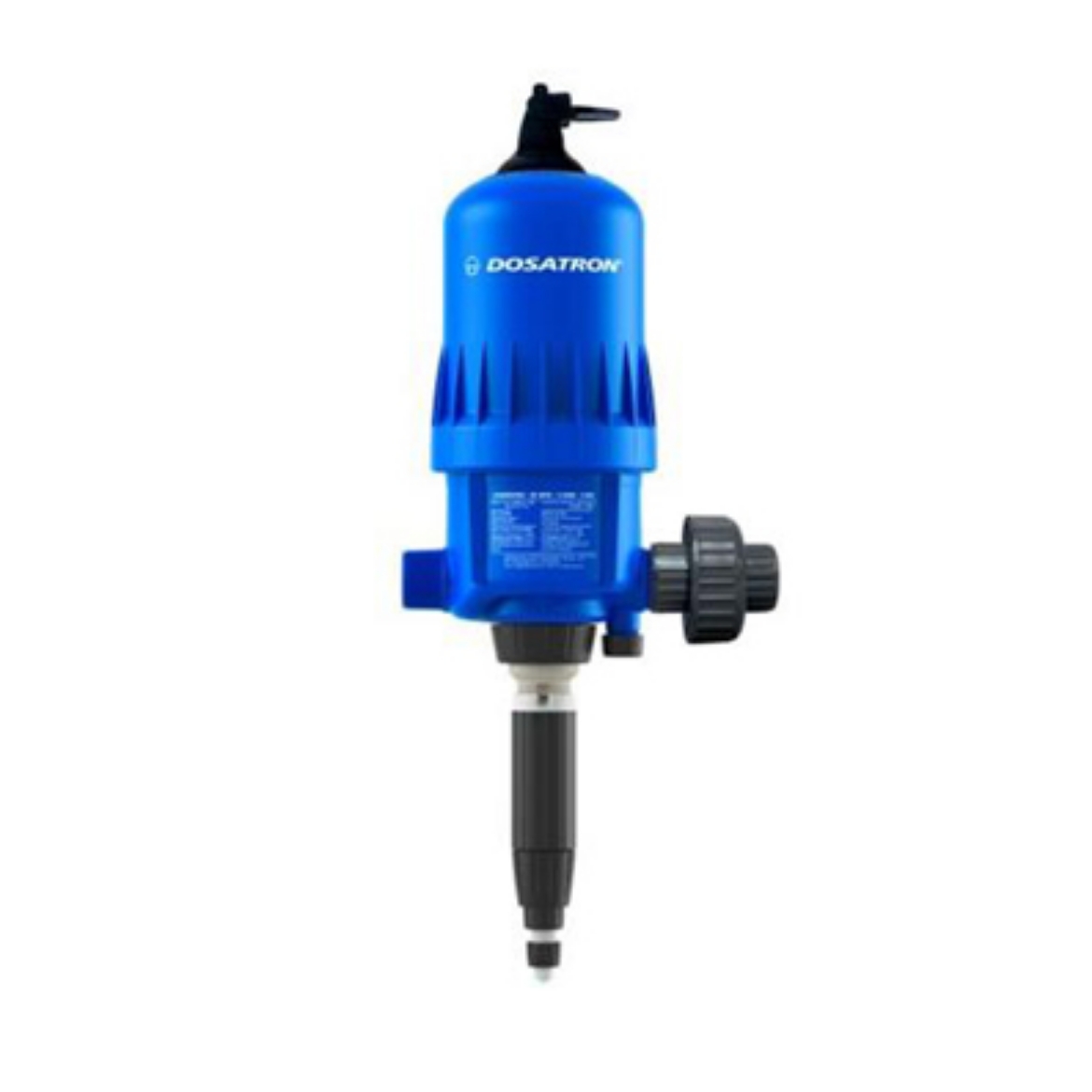

    Dosatron Water Powered Doser 40 GPM 1:3000 to 1:500, AFLAS Seals [D40MZ3000BPAFHY]

    Manufacturer: Dosatron
    • High flow hydroponic pump.
    • Dilution Range: 1:3000 to 1:500 (0.03% to 0.2%).
    • Ratio Range mL: 1.25 to 7.5 mL.
    • Ratio Range tsp: 0.25 to 1.5 tsp.
    • Water Flow Range: 2.2 to 40 GPM.
    • Operating Pressure Range: 4.3 to 116 PSI.
    • Dimensions: 25 1/4″ x 8 1/2″.
    • Weight: 12 lbs.
    • Connection Size: 1 1/2″ NPT.
    • Maximum Temperature: 104°F (40°C).
    • 63% fewer parts, metal free piston.
    • Can be installed in parallel to increase the water flow.
    • Includes a union for easy installation into the Nutrient Delivery System.
    SKU: Q102180
    Manufacturer part number: D40MZ3000BPAFHY
    Availability:
    Contact Us
    i h h

    The Dosatron® D40MZ3000BPAFHY is perfect for the indoor grower. This water-powered doser is directly installed into the water supply line, operating by using water pressure as the power source (no electricity needed). The water activates the Dosatron, which takes up the required percentage of concentrate. Inside the Dosatron, the concentrate is mixed with the water. The water pressure forces the solution downstream. It includes a union for easy installation into the Nutrient Delivery System.

    Operating pressure range is 4.3 to 116 PSI and water flow range is 2.2 to 40 GPM. Injection capabilities of 1:3000 to 1:500 (0.03% to 0.2%). Unit has 1.5-inch NPT connections.

    Included Accessories: 6-inch clear suction tube, weighted strainer, mounting bracket and operating manual.

    Recommended Accessories: 200 mesh filter, check valve.

    D40MZ3000BPAFHY Maintenance Kits

    • Mini-Maintenance Kit (Part#: PJDl216MINI) - For regular maintenance
    • Injection Seal Kit (Part#: PJDl216) - For yearly maintenance
    *
    *
    *
