Dosatron

The Dosatron® Water-Powered Nutrient Delivery System Mixing Chamber Kit enhances the blending as the solution passes through. It’s a must for silicates.

Includes:

• Union.
• Mixing chamber.
• Nipples.
• Seal thread tape.

• The best fertilizer injector for drip irrigation.
• Dilution Range: 1:500 to 1:50 (0.2% to 2%).
• Ratio Range mL: 7.5 to 75 mL/gal.
• Ratio Range tsp: 1.5 to 15 tsp.
• Water Flow Range: 0.05 to 14 GPM.
• Operating Pressure Range: 4.3 to 85 PSI.
• Dimensions: 19 1/18″ x 6 5/16″.
• Weight: 6 lbs.
• Connection Size: 3/4″ NPT.
• Maximum Temperature: 104°F (40°C).
• Includes a union for easy installation into the Nutrient Delivery System.

Dosatron®'s Water-Powered Nutrient Delivery System Lo-Flo Monitor Kit measures and displays the well-blended outgoing solution providing peace of mind.

Features: Union, close nipples, nipples, tee, pressure gauge, pressure gauge tee, cross, check valve, fittings, ball valves, hose adapter, monitor, probe holder assembly, and seal thread tape.

• 3/4 inch water hammer arrestor kit.
• Normal operating pressure - 35 to 500 psi.
• Spike pressure not to exceed 2,000 psi.

Features: stainless steel water hammer arrestor, 4-inch nipple, tee, elbow, close nipple, union, and a roll of thread seal tape.

• Includes all necessary parts for the inlet of your Nutrient Delivery System.
• Best suited for systems with consistent inlet pressure or a constant pressure pump.
• Ideal for use with a booster pump or a pump with VFD control.
• A pressure regulator is recommended for inlet pressures above 85 PSI.

Features: Union, check valve, elbows, nipples, tee, hose adapter, ball valves, coupler, filter, pressure gauge, seal thread tape.

To Complete the Lo-Flo Nutrient Delivery System, you will also need Dosatron Injectors, Mixing Chamber Kit(s), pH/ EC Monitor Kit or END Kit, and a Water Hammer Arrestor Kit.

• The best pump for mixing nutrients.
• Dilution Range: 1:3000 to 1:333 (0.03% to 0.3%).
• Ratio Range mL: 1.25 to 11 mL.
• Ratio Range tsp: 0.25 to 2.25 tsp.
• Water Flow Range: 0.05 to 14 GPM.
• Operating Pressure Range: 4.3 to 85 PSI.
• Dimensions: 21″ x 6 5/16″.
• Weight: 6 lbs.
• Connection Size: 3/4″ NPT.
• Maximum Temperature: 104°F (40°C).
• Includes a union for easy installation into the Nutrient Delivery System.

• Low-flow water-powered pumps.
• Available in a range of models with tailored dilution ranges.
• Ideal for nutrient and pH dosing in hydroponic applications.
• Consistent and precise injection without electricity.
• Two seal options for acidic vs. alkaline additives.
• Easy to integrate into existing irrigation systems.

• High flow nutrient dosing pump.
• Dilution Range: 1:500 - 1:50 (0.2 to 2%).
• Ratio Range mL: 7.5 to 75 mL.
• Ratio Range tsp: 1.5 to 15 tsp.
• Water Flow Range: 2.2 to 40 GPM.
• Operating Pressure Range: 4.3 to 116 PSI.
• Dimensions: 25 1/4″ x 8 1/2″.
• Weight: 12 lbs.
• Connection Size: 1 1/2″ NPT.
• Maximum Temperature: 104°F (40°C).
• 63% fewer parts, metal free piston.
• Can be installed in parallel to increase the water flow.
• Includes a union for easy installation into the Nutrient Delivery System.

• High flow hydroponic pump.
• Dilution Range: 1:3000 to 1:500 (0.03% to 0.2%).
• Ratio Range mL: 1.25 to 7.5 mL.
• Ratio Range tsp: 0.25 to 1.5 tsp.
• Water Flow Range: 2.2 to 40 GPM.
• Operating Pressure Range: 4.3 to 116 PSI.
• Dimensions: 25 1/4″ x 8 1/2″.
• Weight: 12 lbs.
• Connection Size: 1 1/2″ NPT.
• Maximum Temperature: 104°F (40°C).
• 63% fewer parts, metal free piston.
• Can be installed in parallel to increase the water flow.
• Includes a union for easy installation into the Nutrient Delivery System.

• High flow hydroponic pump.
• Dilution Range: 1:3000 to 1:500 (0.03% to 0.2%).
• Ratio Range mL: 1.25 to 7.5 mL.
• Ratio Range tsp: 0.25 to 1.5 tsp.
• Water Flow Range: 2.2 to 40 GPM.
• Operating Pressure Range: 4.3 to 116 PSI.
• Dimensions: 25 1/4″ x 8 1/2″.
• Weight: 12 lbs.
• Connection Size: 1 1/2″ NPT.
• Maximum Temperature: 104° F.
• Can be installed in parallel to increase the water flow.
• 63% fewer parts, metal free piston.
• Includes a union for easy installation into the Nutrient Delivery System.

• High flow hydroponic pump.
• Dilution Range: 1:100 to 1:20 (1% to 5%).
• Ratio Range mL: 37.5 to 190 mL.
• Ratio Range tsp: 7.5 to 38 tsp.
• Water Flow Range: 2.2 to 40 GPM.
• Operating Pressure Range: 7.2 to 116 PSI.
• Dimensions: 25 1/4″ x 8 1/2″.
• Weight: 12 lbs.
• Connection Size: 1 1/2″ NPT.
• Maximum Temperature: 104° F.
• Can be installed in parallel to increase the water flow.
• 63% fewer parts, metal free piston.
• Includes a union for easy installation into the Nutrient Delivery System.

• The best pump for mixing nutrients.
• Dilution Range: 1:3000 to 1:333 (0.03% to 0.3%).
• Ratio Range mL: 1.25 to 11 mL.
• Ratio Range tsp: 0.25 to 2.25 tsp.
• Water Flow Range: 0.05 to 14 GPM.
• Operating Pressure Range: 4.3 to 85 PSI.
• Dimensions: 21″ x 6 5/16″.
• Weight: 6 lbs.
• Connection Size: 3/4″ NPT.
• Maximum Temperature: 104° F.
• Includes a union for easy installation into the Nutrient Delivery System.

• Ideal injector for common liquid fertilizer programs.
• Dilution Range: 1:1000 - 1:100 (0.1% to 1%).
• Ratio Range mL: 3.75 to 37.5 mL.
• Ratio Range tsp: 0.75 to 7.5 tsp.
• Water Flow Range: 0.05 to 14 GPM.
• Operating Pressure Range: 4.3 to 85 PSI.
• Dimensions: 19 1/18″ x 6 5/16″.
• Weight: 6 lbs.
• Connection Size: 3/4″ NPT.
• Maximum Temperature: 104° F.
• Higher flow rates and greater chemical compatibility compared to existing technology.
• Easy installation; can be adapted to new or existing Lo-Flo Nutrient Delivery Systems.
• Extended dosing range achieved by swapping out the injection stem and plunger assembly.

• Ideal injector for common liquid fertilizer programs.
• Dilution Range: 1:1000 - 1:100 (0.1% to 1%).
• Water Flow Range: 2.2 to 40 GPM.
• Operating Pressure Range: 4.3 to 116 PSI.
• Dimensions: 125 1/4″ x 8 1/2″.
• Weight: 6 lbs.
• Connection Size: 1.5″ NPT.
• Maximum Temperature: 104°F.
• Higher flow rates and greater chemical compatibility compared to existing technology.
• Easy installation; can be adapted to new or existing Hi-Flo Nutrient Delivery Systems.
• Extended dosing range achieved by swapping out the injection stem and plunger assembly.

Light blocking mixing chamber sunshade for Dosatron® 3/4" mixing chambers. Prevents the light from impacting nutrient rich water, eliminating the potential for biofilm and algae growth in the chamber. Removable cover for the clear bowl portion of the mixing chamber.

Extend the life of your Dosatron® D14MZ2 - 14 GPM and D14MZ2-HY with Dosatron's Rebuild Kit.

Two-Part Kit Includes:

• Part 1: piston kit contents
• Part 2: seal kit contents, complete, detailed instructions

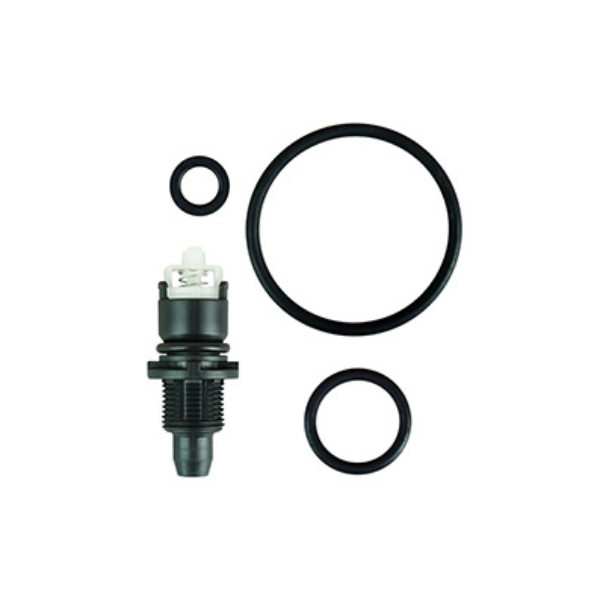

Injection seal kit for the Dosatron® D14MZ2 - 14 GPM. Recommended for a yearly maintenance.

Kit Includes:

• Injection sleeve o-ring.
• Check valve assembly.
• Injection stem o-ring.
• Plunger seal.

Mini maintenance kit for the Dosatron® D14MZ2 - 14 GPM. Recommended for a regular maintenance.

Kit Includes:

• Plunger seal.
• Top guide.
• Check valve cone.
• Check valve spring.
• Check valve cone o-ring.
• Dosa-Lube (Silicone).

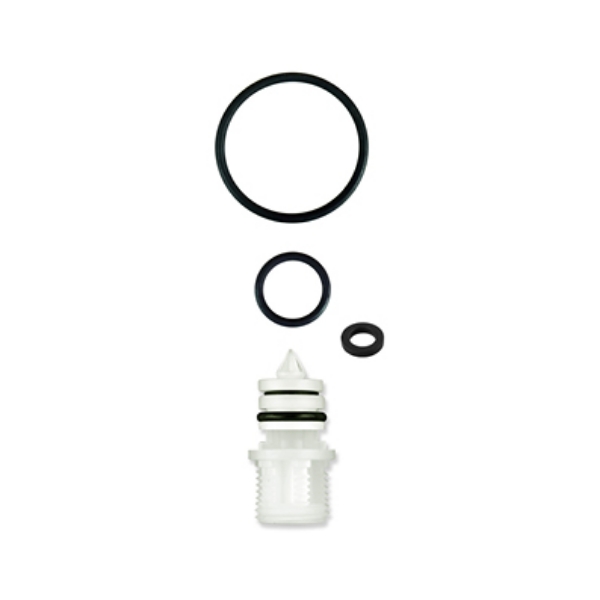

Injection seal kit with AFLAS seals for the Dosatron® D14MZ3000 - 14 GPM.

Kit Includes:

• Injection sleeve o-ring.
• Check valve assembly.
• Injection stem o-ring.
• Plunger with seal.

Injection seal kit with Viton seals for the D14MZ3000 - 14 GPM .

Kit Includes:

• Injection sleeve o-ring.
• Check valve assembly.
• Injection stem o-ring.
• Plunger with seal.

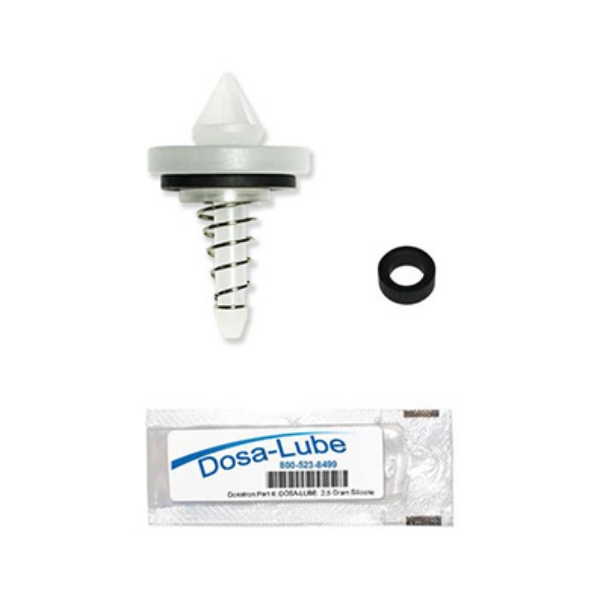

Mini maintenance kit for the Dosatron® D14MZ3000 and D14TMZ3000 - 14 GPM.

Kit Includes:

• Plunger seal.
• Upper check valve assembly.
• Dosa-Lube (Silicone).

Mini maintenance kit for the Dosatron® D14MZ3000 and D14TMZ3000 - 14 GPM.

Kit Includes:

• Plunger seal.
• Upper check valve assembly.
• Dosa-Lube (Silicone).

• Tank Size: 5 gallons (19 liters).
• Cart Construction: Polyethylene.
• Cart Dimensions (L x W x H): 22 x 19 x 44.5 in (55.9 x 48.3 x 113 cm).
• Tire Size: 10 in (25.4 cm) no-flat tires.
• Includes 5-gallon (19 liter) bucket with lid.
• Dosatron doser not included.

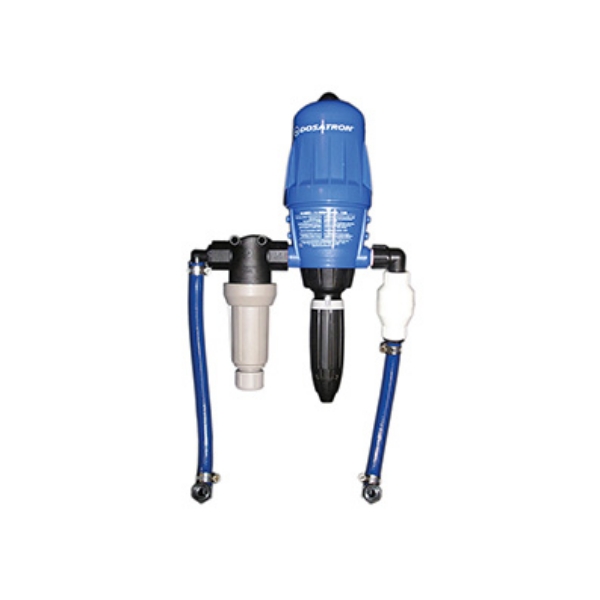

Dosatron® Li'l Bud-D Cart Hook-Up Kit for the 11 and 14 GPM Dosatron Injectors.

Includes:

• Filter.
• Check valve.
• Stainless steel clamps.
• 5/8 inch hose.
• Adaptors.

Dosatron injectors, and hook-up kit sold separately.

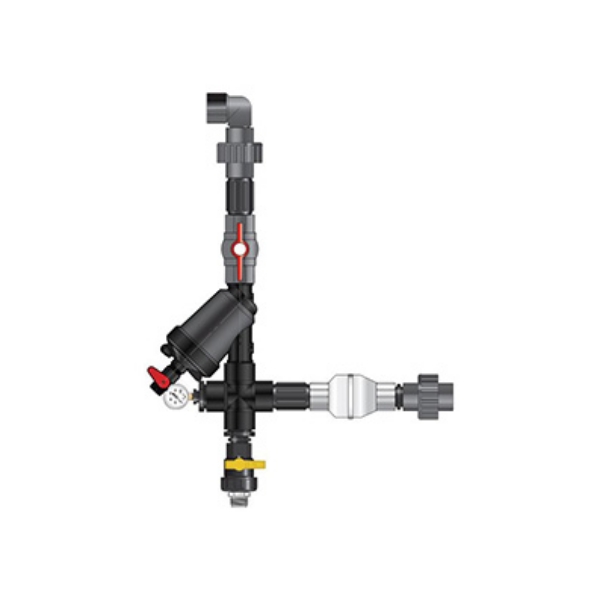

Dosatron® Water-Powered Nutrient Delivery System Hi-Flo Starter Kit includes all the parts you need for the inlet of your Nutrient Delivery System.

Features: Union, gauge, check valve, elbows, nipples, cross, reducer bushings, hose adapter, ball valve, filter, pressure regulator, seal thread tape.

Dosatron®'s Water-Powered Nutrient Delivery System Mixing Chamber Kit enhances the blending as the solution passes through. It's a must for silicates.

Includes:

• Union.
• Mixing chamber.
• Nipples.
• Seal thread tape.

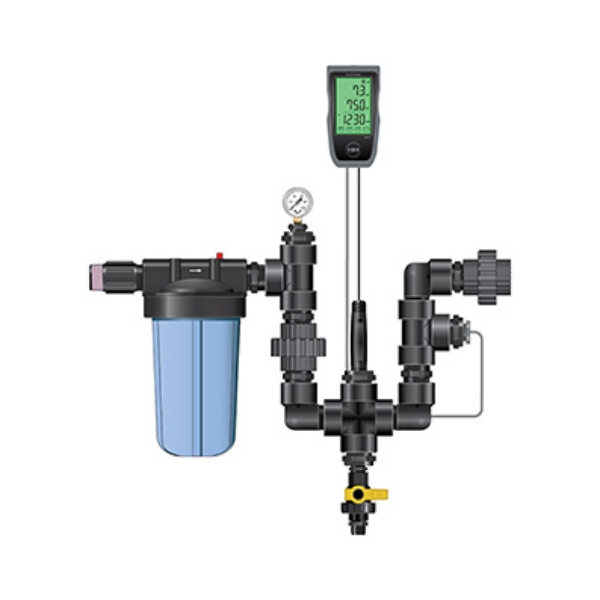

Dosatron Water-Powered Nutrient Delivery System Hi-Flo Monitor Kit measures and displays the well-blended outgoing solution providing peace of mind.

Includes: unions, close nipples, mixing chamber, nipples, tees, pressure gauge, cross, ball valves, hose adapter, monitor, probe holder assembly, seal thread tape.

• 1 1/2 inch water hammer arrestor kit.
• Normal operating pressure - 35 to 500 psi.
• Spike pressure not to exceed 2,000 psi.

Features: stainless steel water hammer arrestor, 4-inch nipple, tee, elbow, close nipple, union, and a roll of thread seal tape.

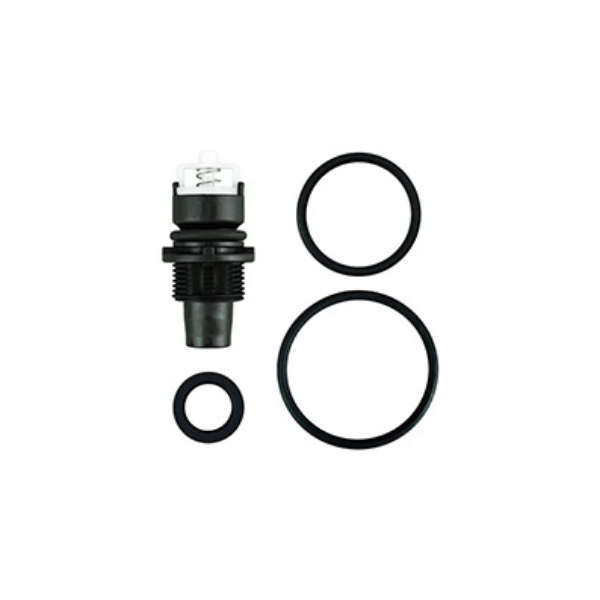

Injection seal kit for the Dosatron® D14MZ5 - 14 GPM, D14TMZ5 - 14 GPM, and D40MZ2-40 GPM.

Includes:

• Injection sleeve o-ring.
• Check valve assembly.
• Injection stem o-ring.
• Plunger seal.

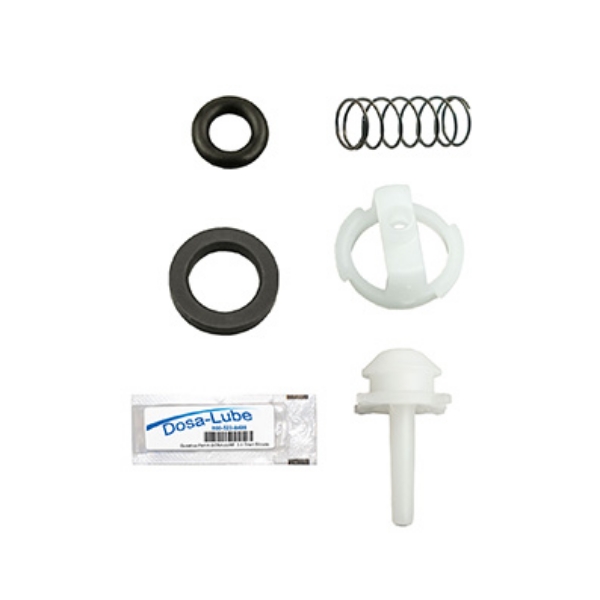

Mini maintenance kit for the Dosatron® D40MZ2 - 40 GPM.

Includes:

• Plunger seal.
• Top guide.
• Check valve cone.
• Check valve spring.
• Check valve cone o-ring.
• Dosa-Lube (Silicone).

Injection seal kit for the Dosatron® D40MZ3000 - 40 GPM. Keep your Dosatron in tip-top shape with a yearly maintenance using their seal kit.

Includes:

• Check valve assembly.
• Injection sleeve o-ring.
• Plunger seal.
• Upper injection stem insert o-ring.
• Injection stem o-ring.

Mini maintenance kit for the D40MZ3000 -40 GPM. The Mini Maintenance Kits are the perfect, economical solution for Dosatron® users and growers who perform maintenance on a regular schedule.

Kit Includes:

• Plunger seal
• Upper check valve assembly
• Dosa-Lube (Silicone)

Mini maintenance kit for the Dosatron® D14MZ10, D14MZ10-HY, and D14TMZ10 - 14 GPM.

Includes:

• Plunger seal.
• Top guide.
• Check valve cone.
• Check valve spring.
• Check valve cone o-ring.
• Dosa-Lube (Silicone).

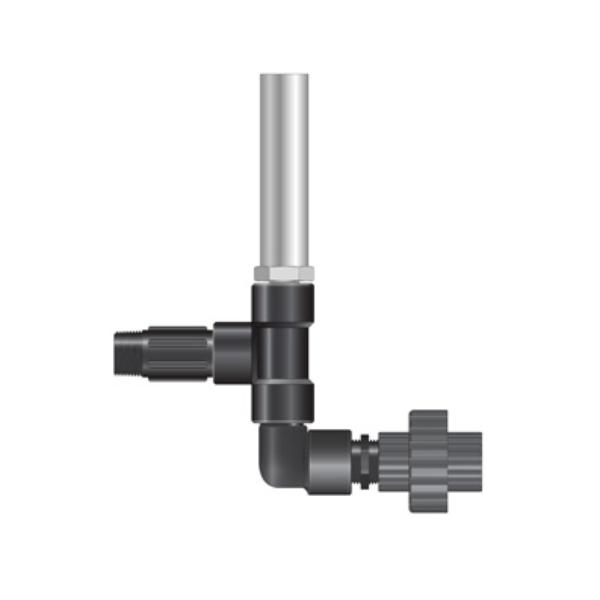

Dosatron® Water Hammer Arrestor Kits are used to prevent the potential damaging effects of water hammer, which is defined as a pressure surge or shock wave caused when a fluid in motion is forced to stop or change directions suddenly, often due to a quick-closing valve.

• Engineered specifically for indoor home grows with an average of 4 to 24 lights or 12 to 96 plants.
• Flow Rates: 0.5 to 5 GPM (1.89 to 18.9 LPM)
• Pressure Range: 35 – 87 psi (2.5 - 6 BAR)
• Connection Size: ¾ inch inlet / outlet
• Dosing Range %: 0.05 - 0.5
• Dosing Range mL/gallon: 1.875 - 18.75 mL/G
• Dosing Range Ratio: 1:2000 to 1:200
• Maximum Temperature: 104 F (40 C)
• System Weight: 14.5 lb (6.585 kg)
• Spare Unit Weight: 2.5 lb (1.15 kg)
• Assembled System Dimensions: 11.81 L x 12.4 W x 17.72 H in (L 300 x l 315 x H 450 mm)
• Max Dosing Unit Dimensions: 6.3 L x 5.26 W x 13.58 H in (L 160 x l 133.5 x H 345 mm)
• Included Accessories: Mounting bracket, suction hose, weighted strainer, union connections and quick start guide.

The Dosatron® Hobby Cultivator Expansion Unit allows you to adapt your multi-pump system by adding more pumps based on the needs of your application.

Maintenance kit for Dosatron® Hobby Expansion Dosers [D15RE05] and Dosatron Hobby Cultivator System Dosers [SYSD15RE05VF].

Strainer Assembly for the D40MZ1000 40 GPM and D40MZ1000-HY 40 GPM Dosatron® injectors.

• Engineered specifically for indoor home grows with an average of 4 to 24 lights or 12 to 96 plants.
• Flow Rates: 0.5 to 5 GPM (1.89 to 18.9 LPM)
• Pressure Range: 35 – 87 psi (2.5 - 6 BAR)
• Connection Size: ¾ inch inlet / outlet
• Dosing Range %: 0.05 - 0.5
• Dosing Range mL/gallon: 1.875 - 18.75 mL/G
• Dosing Range Ratio: 1:2000 to 1:200
• Maximum Temperature: 104 F (40 C)
• System Weight: 14.5 lb (6.585 kg)
• Spare Unit Weight: 2.5 lb (1.15 kg)
• Assembled System Dimensions: 11.81 L x 12.4 W x 17.72 H in (L 300 x l 315 x H 450 mm)
• Max Dosing Unit Dimensions: 6.3 L x 5.26 W x 13.58 H in (L 160 x l 133.5 x H 345 mm)
• Included Accessories: Mounting bracket, suction hose, weighted strainer, union connections and quick start guide.

• Alternative to the Dosatron® Monitor Kit.
• Requires additional components: Dosatron Injectors, Standard Starter Kit, Mixing Chamber Kit, Water Hammer Arrestor Kit.
• Compatible with Hobby Cultivator by Dosatron for indoor home grows and basement grows.

• Dilution Range: 1:100 to 1:10 (1% to 10%).
• Injection Range mL: 37.5 to 375 mL/gal.
• Injection Range tsp: 7.5 to 75 tsp/gal.
• Water Flow Range: 0.05 to 14 GPM.
• Operating Pressure Range: 7 to 85 PSI.
• Available Housing Materials: Polypropylene.
• Dimensions: 19 1/18 x 6 5/16 in (48.40 cm x 16.03 cm).
• Weight: 6 lbs (2.72 kg).
• Connection Size: 3/4 in NPT.
• Maximum Temperature: 104°F (40°C).

Injection seal kit for the Dosatron® D14MZ1000 - 14 GPM.

Kit Contains:

• (1) PJDI234 Check valve assembly.
• (1) JDI100 Injection sleeve O-ring.
• (1) JDI208 Plunger seal.
• (1) JDI120 Injection stem O-ring.

Top o-ring for Dosatron Lo-Flo Mixing Chamber.

Bottom o-ring for Dosatron Lo-Flo Mixing Chamber.

DM11 and D14 Series replacement part.
