Gavita

• Designed to be used with Gavita® 1700e LED fixtures.
• Allows users to control fixtures with a Gavita EL series controller.
• Utilizes cables with RJ45 connectors for daisy chaining the control signal between adapters.
• Adapters are cETLus listed and IP66 rated for commercial use.
• Additional RJ45 to RJ45 cables available.
• Use RJ45 to RJ9 cable for connection to the Gavita Master Controller EL1 or EL2.
• Use three-way splitter for branching signal into dual paths.

• The Gavita® CT 1930e is the first LED to directly replace HPS.
• Fits seamlessly into existing HPS layouts.
• Highly energy-efficient delivering serious growing power.
• Designed as a 1:1 layout replacement for the Gavita Pro 1000e DE HPS.
• Compatible with wiring and electrical requirements for most indoor growing environments.
• Limits the cost and downtime required to convert facilities of every size.
• Delivers more light in a broader spectrum with up to 20% energy savings compared to Gavita 1000 W DE and single-ended HPS fixtures.*
• Compatible with Gavita EL Master Controllers (sold separately) and most building automation systems.
• Embedded controller technology enables control of up to 2,000 fixtures per EL Master control channel.

*based on average wattage of each fixture.

• Designed to maximize the performance of your compatible Gavita® fixtures.
• Simplifies lighting management with under-friendly interfaces.
• Range of models ensures the right fit for equipment needs.
• Latest generation EL3 controller compatible with Titan Controls™ Grow Room Sensors.

• Eight-foot (2.4 meter) power cords for Gavita® LED fixtures.
• Plug or bare-wire to 5-pin Wieland connections.
• 120-volt, 208- to 240-volt, 277- to 400-volt options.

Replacement bracket for Gavita® CT 1930e LED.

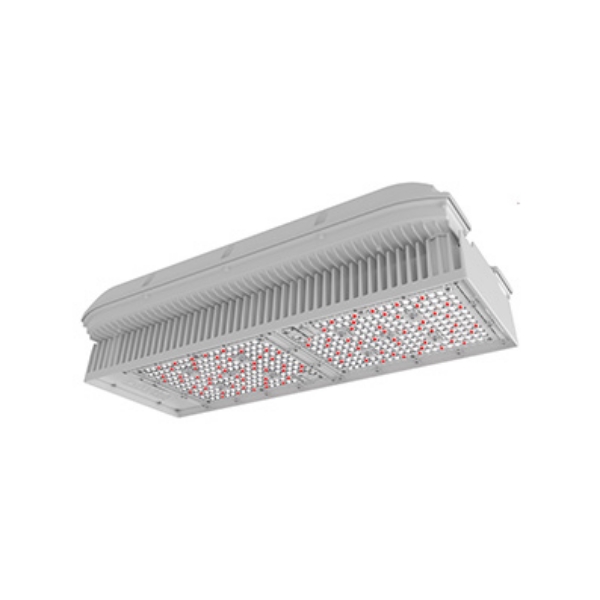

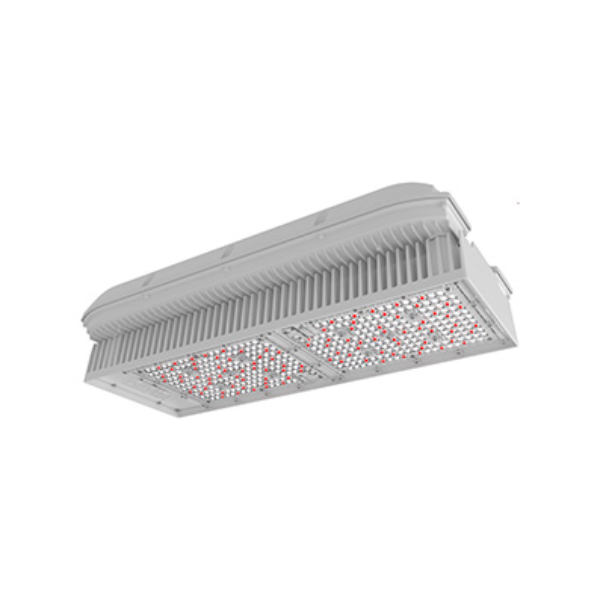

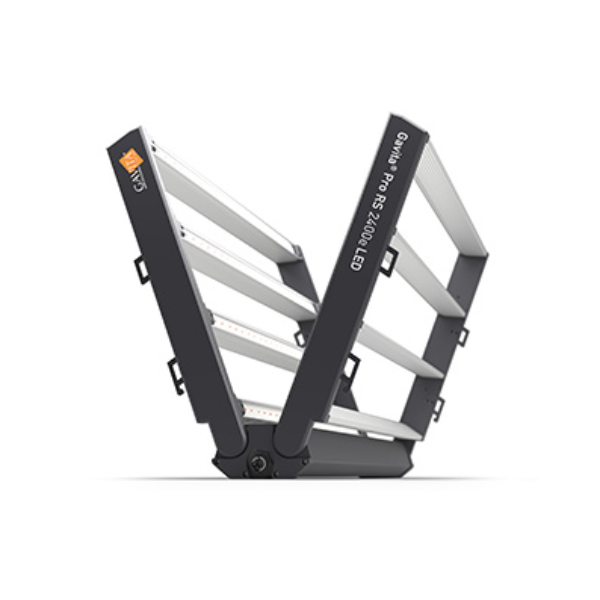

• PPF: 2,400 umol/s (±7%).
• PPE: 3.2 umol/J (±%).
• Input Voltage: 208 to 480 volts.
• Input Watts: 750 watts (±5%).
• Current:
• 3.6 amps at 208 volts.
• 2.7 amps at 277 volts.
• 1.56 amps at 480 volts.
• Frequency: 50/60 hertz.
• Power Factor: (cosø) > 0.95
• Ambient Temp: 0° to 40°C (32° to 104°F).
• Dimming: 10% to 100%
• Weight: 33.6 pounds (15.24 kilograms).

• PPF: 2,000 umol/s (±7%).
• PPE: 3.0 umol/J (±7%).
• Input Voltage: 208 to 480 volts.
• Input Watts: 650 watts.
• Current:
• 3.125 amps at 208 volts.
• 2.35 amps at 277 volts.
• 1.35 amps at 480 volts.
• Frequency: 50/60 hertz.
• Power Factor: (cosø) > 0.90.
• Ambient Temperature: 0° to 40°C (32° to 104°F).
• Dimming: 35% to 100%.
• Weight: 34.5 pounds (15.65 kilograms).

• Perfect replacement for T5 fluorescent light fixture.
• 60% more efficient, running off 18 watts.
• Tested in nursery applications.
• Color temperature: 9,000° K.
• 39.6 µmol.
• Beam angle: 120°.
• 18W per strip (0.15 amps on 120V).
• Daisy chain up to 100 strips on a 20 amp circuit.
• Two strips in array per shelf.
• Easy installation with hanging clip and zip tie slot.
• Fully waterproof with water-resistant housing and connectors.
• Rated for 54,000 hours.
• Standard 5-year warranty.
• Two strips per pack.

• Includes 1,000 W EL DE 400 V lamp and HR 96 reflector.
• One of the best 1,000 watt high-pressure sodium (HPS) lamps on the market.
• It is specifically designed for high frequency electronic ballasts.
• Connection at each end of the lamp removes need for a frame wire inside.
• Lamp jacket is made from quartz glass.
• For use with Gavita fixtures only.

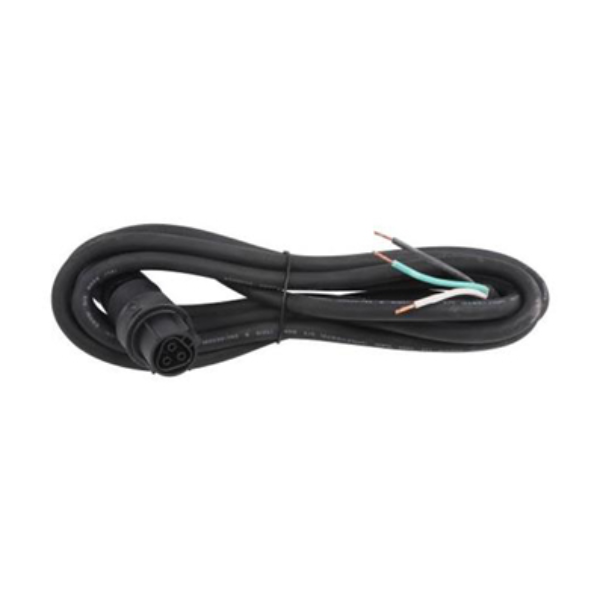

• Optional power cord for 277 volt or higher Gavita® fixtures.
• Can be disconnected by a fixture-side IP68 Wieland RST plug.
• Can be hardwired.
• 10 foot (3 meter) cord.

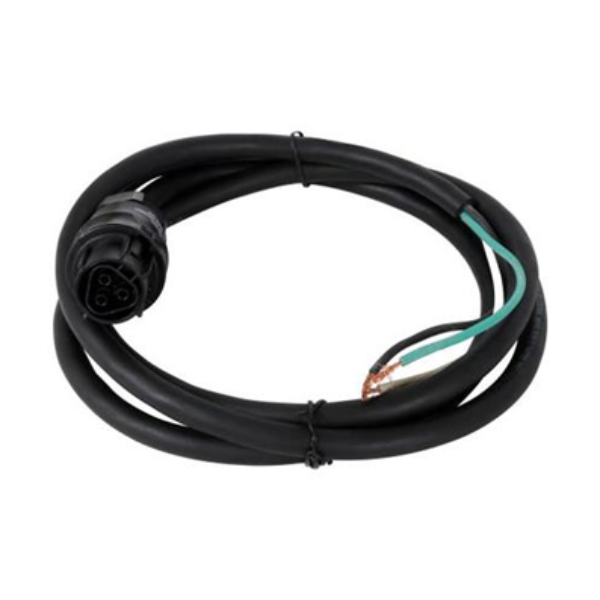

• Optional power cord for 277 volt or higher Gavita® fixtures.
• Can be disconnected by a fixture-side IP68 Wieland RST plug.
• Can be hardwired.
• 6 foot 6 inch (198 centimeter) cord.

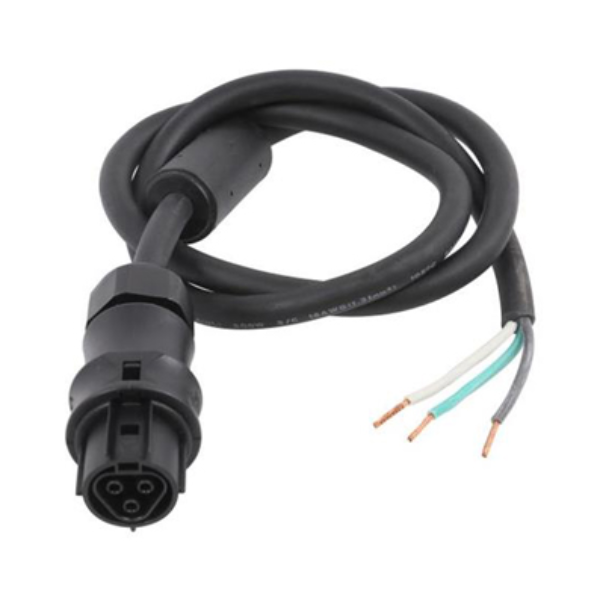

• Optional power cord for 277 volt or higher Gavita® fixtures.
• Can be disconnected by a fixture-side IP68 Wieland RST plug.
• Can be hardwired.
• 3 foot (1 meter) cord.

• Three-way splitter.
• 6P6C connection jacks.
• Four-piece kit.

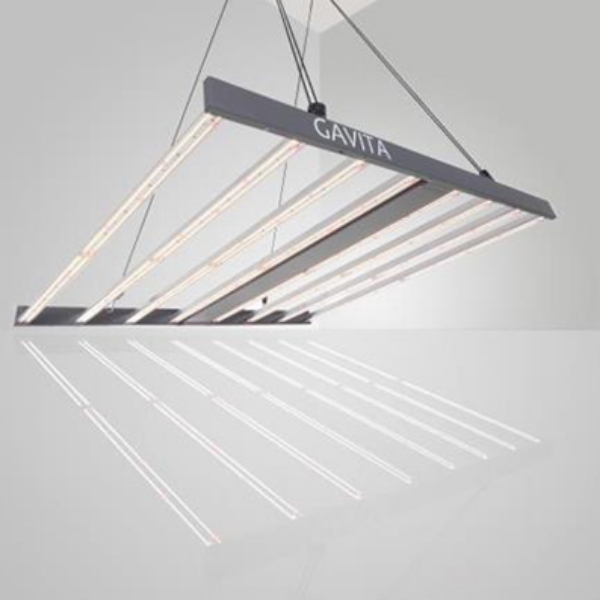

• Eight (8) passively cooled bars eliminate moving parts.
• Provides full-spectrum, broad-coverage light for full-term growth.
• High-output 1,700 μmol s-1 PAR and an impressive efficacy of 2.6 μmol s-1 per watt.
• Dimmable to 50% when using the Gavita Master Controller and E-Series Adapter.
• Reliably sourced components including Samsung white LEDs and Osram deep-red LEDs make the 1700e built to last.
• Sun Grip® light hangers included for quick, easy installation.
• DLC Listed.
• FCC compliant, UL8800.
• Dimensions (L x W x H): 44.1 in x 43.7 in x 2.3 inches (112 x 111 x 5.8 centimeters).
• Weight: 28.4 pounds (12.9 kilograms).

• Single-ended horticultural fixture.
• Contains two Philips 315 watt 4,200° Kelvin CMH lamps.
• Ideal for vegetative or supplemental use.
• Repeater Bus interface enables external control with the Gavita® Master controllers.
• This compact fixture integrates ballast and reflector.
• Intelligent double-ballast concept: switch off one lamp in the fixture.
• Reflector is designed for CMH only installations:
• Medium 132° beam angle for double CDM 315 fixtures.
• High-grade Miro® aluminum.
• Provides 90%+ uniformity and optimal horizontal crop penetration.

• An entry-level system for centrally controlling large rooms with Gavita E-series fixtures.
• Improved and expanded second generation of Master controllers.
• Can control 1,000 max. repeater bus fixtures and 80 max. single bus fixtures without a booster.
• Features bar-raising functionality:
• Non-volatile memory.
• High-temperature dimming and safety feature shut-off.
• Event logging.
• Independent sunrise and sunset settings.
• Independent light cycles.
• Programmable External Contactor Modules (ECMs).

Note: The purchase of an E-Series LED Adapter Interconnect Cable [HGC906717] is required for use with Gavita LED fixtures.

• Suitable for lighting a 15-sq.ft. (1.39-sq.m.) area with 1,000 µmol s-1 m-2.
• 400 V EL DE lamp has an efficiency of 2 µmol s-1 per watt in a wide control range of 600-825 watt.
• Rivals air-cooled 1,000 watt HPS fixtures at 825 watts with an output of 1650 µmol s-1.
• Outshines the best 600 watt lamps at 600 watts.
• Can be dimmed down to 375 watt.
• Compatible with the Gavita Master Controller.
• High-grade MIRO® aluminum HR 96 reflector.
• Medium-wide reflector provides optimal reflectance of light to the crop.
• Unit includes a 240 V power cord.
• Requires professional installation.
• One-year warranty on the lamp.

Each Gavita LED Bracket unit includes 2 brackets (sold as a pair).

• Maximizes the performance of compatible fixtures.
• Build and program entire schedules for the grow cycle.
• Spray feature dims lights to help protect against crop burn during spray applications.
• Independent sunrise and sunset settings.
• High-temperature dimming and safety feature shut-off.
• Event logging.
• Data logging saves setting history for trend and performance data.
• Compatible with Titan Controls™ environmental sensors.
• 8-inch (20-centimeter) touchscreen interface.
• Controls up to 512 fixtures.
• Easily updatable via USB.

• Replacement reflector for Gavita® Pro line and HortiStar.
• Easy to install; no tools required.
• Wide spread for optimal uniformity (150° beam angle).
• Suitable for double-ended 750-1000W HPS.
• This reflector is most suitable for overlapping plans.
• Designed for uniformity.
• Made from MIRO® aluminum.

• Designed to be used with Gavita e-series LED adapter and 1700e LED fixtures.
• Runs inline with the power cord to the fixture.
• Allows users to control LED fixtures with an EL series controller.
• Utilizes cables with RJ45 connectors for daisy chaining the control signal between adapters.
• cETLus listed.
• IP66 rated for commercial use.

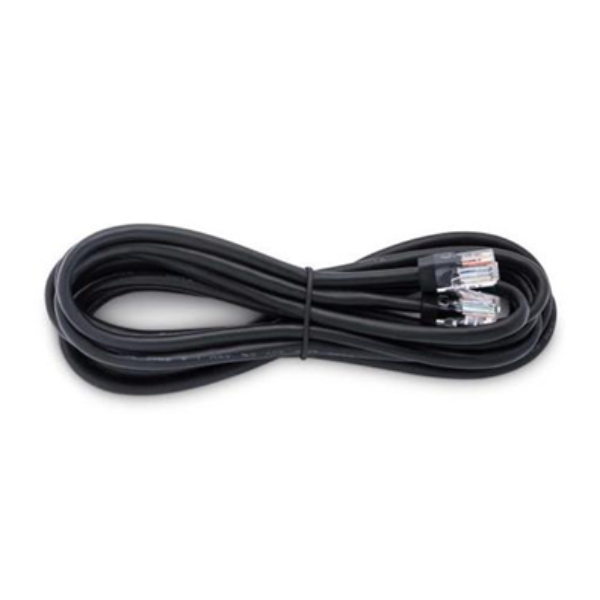

• 6 foot (1.8 meter) RJ45-RJ45 cable.

• Conversion cable for Gavita LED fixtures.
• 3-pin to 5-pin Wieland connections.

• Double-ended (DE), high-pressure sodium (HPS) horticultural lamp.
• High-output and extreme long light maintenance.
• Light maintenance: 5,000 hours, >96%.
• Color temperature: 2,100° K.
• Lamp base: K12 x 30s.
• Suitable for high-frequency Gavita ballasts.
• Jacket made from quartz glass.
• Change once a year for best results.

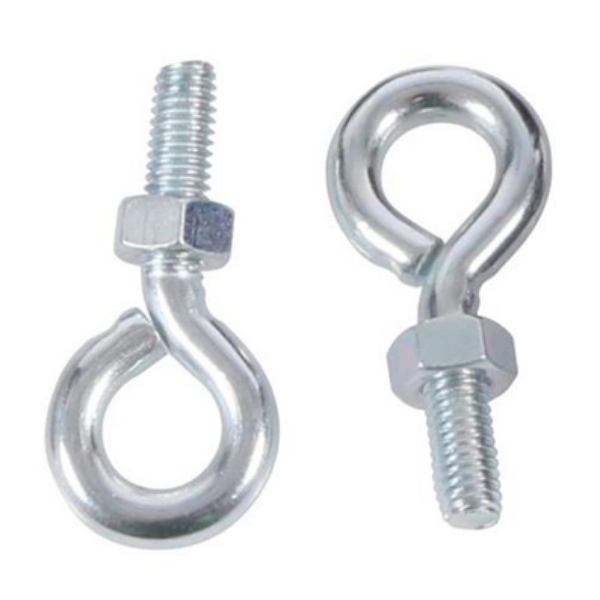

• For hanging Gavita lighting fixtures.
• Two (2) M6 eye bolts.
• Three (3) M6 hex nuts.
• Case of 12.

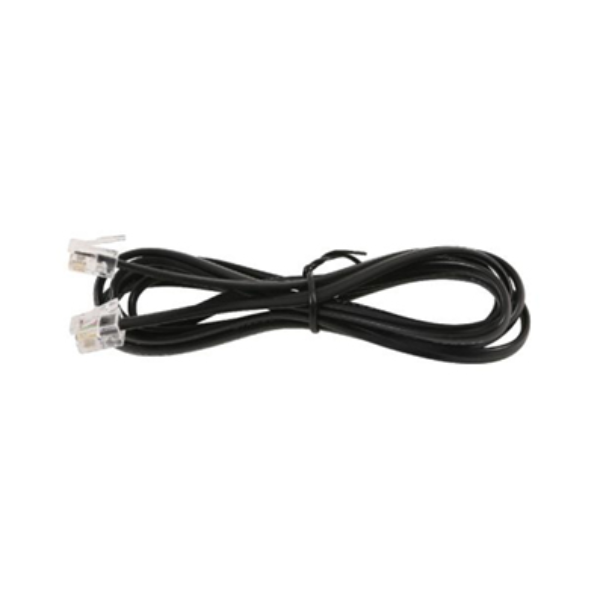

• For use with the Gavita® Master Controllers.
• Used to supply controller signal from ballast to additional ballasts (daisy chain).
• 10-foot (3-meter) cable.

• Attaches the Gavita® Master controller to the Gavita® E-Series ballast.
• 25-foot (7.5-meter) cable.

• Eight-foot (2.4 meter) power cord for Gavita® LED fixtures.
• 120-volt plug to 5-pin Wieland connection.

• Eight-foot (2.4 meter) power cord for Gavita® LED fixtures.
• 208- to 240-volt plug to 5-pin Wieland connection.

• Includes the HR96 Reflector for maximum efficiency and uniformity.
• Designed with broad light dispersion in mind.
• Highly efficient passive ballast cooling for longer fixture life.
• Sealed housing with a Gore-Tex® ventilation plug.
• Controllable output up to 1,150 watts.
• Equipped with a dimming knob for manual light output adjustment.
• Features a Repeater Bus interface for control with a Gavita EL Controller (sold separately).
• Connect up to 100 fixtures in a single daisy chain series, up to five daisy chains per EL controller output.
• A single EL controller output can control up to five 100-fixture daisy chains.

• The Gavita® CT 1930e is the first LED to directly replace HPS.
• Fits seamlessly into existing HPS layouts.
• Highly energy-efficient delivering serious growing power.
• Designed as a 1:1 layout replacement for the Gavita Pro 1000e DE HPS.
• Compatible with wiring and electrical requirements for most indoor growing environments.
• Limits the cost and downtime required to convert facilities of every size.
• Delivers more light in a broader spectrum with up to 20% energy savings compared to Gavita 1000 W DE and single-ended HPS fixtures.*
• Compatible with Gavita EL Master Controllers (sold separately) and most building automation systems.
• Embedded controller technology enables control of up to 2,000 fixtures per EL Master control channel.
• Voltage: 120-277 V.

*based on average wattage of each fixture.

• The Gavita® CT 1930e is the first LED to directly replace HPS.
• Fits seamlessly into existing HPS layouts.
• Highly energy-efficient delivering serious growing power.
• Designed as a 1:1 layout replacement for the Gavita Pro 1000e DE HPS.
• Compatible with wiring and electrical requirements for most indoor growing environments.
• Limits the cost and downtime required to convert facilities of every size.
• Delivers more light in a broader spectrum with up to 20% energy savings compared to Gavita 1000 W DE and single-ended HPS fixtures.*
• Compatible with Gavita EL Master Controllers (sold separately) and most building automation systems.
• Embedded controller technology enables control of up to 2,000 fixtures per EL Master control channel.
• Voltage: 277-480 V.

*based on average wattage of each fixture.

• One of the best 1,000 watt HPS lamps on the market.
• It is specifically designed for high frequency electronic ballasts.
• Connection at each end of the lamp removes need for a frame wire inside.
• Lamp jacket is made from quartz glass.
• For use with Gavita fixtures only.

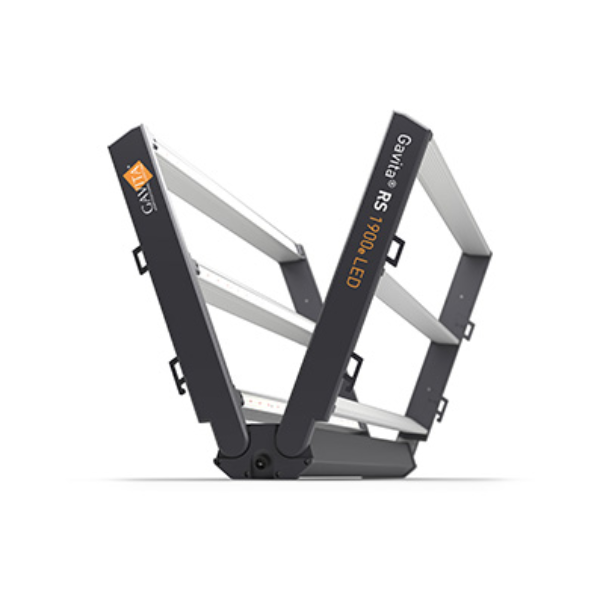

• High light intensity to help produce higher yields.
• Broad white light with enhanced blue spectrum which may intensify terpene and cannabinoid profiles.
• Dimmable down to 10% with the Gavita® EL3 Master controller (sold separately).
• Premium Gavita diodes and drivers.
• Delivers the highest efficiency of any full spectrum.
• DLC listed LED fixture at an impressive 3.0 μmol/J*.
• Embedded adapter for maximum controllability with the Gavita EL3 Master controller (sold separately).
• Foldable 8-rail fixture is a breeze to ship, store, and install.
• IP66 wet rating and ANSI/CAN/UL 8800 compliant.
• Assembled in the USA using foreign components.
• Five-year limited warranty.
• Dimensions: 44.1 x 43.7 x 3.3 inches (112.01 x 111 x 8.4 centimeters).
• Weight: 36 pounds (16.33 kilograms).

• Used to operate one or more Gavita® CT 1930e light fixtures without the use of a lighting controller.
• Ensures continuous operation at 100% output* when placed on the input of the first fixture.

• Connects Gavita LED fixtures together.
• 10-foot (3-meter) RJ45-to-RJ45 signal cable.

• Connects Gavita® EL1 or EL2 controllers to the first Gavita LED fixture.
• 25-foot (7.5-meter) RJ45-to-RJ9 signal cable.

• Designed to be used with Gavita 1700e LED fixtures.
• Branches the signal into dual output paths.
• For cables with RJ45 connectors.

• Extension cable for the Gavita® EL series controller temperature probe.
• 96-foot (30-meter) cable.

• Eight-foot (2.4 meter) power cord for Gavita® LED fixtures.
• 277- to 400-volt bare wire to 5-pin Wieland connection.

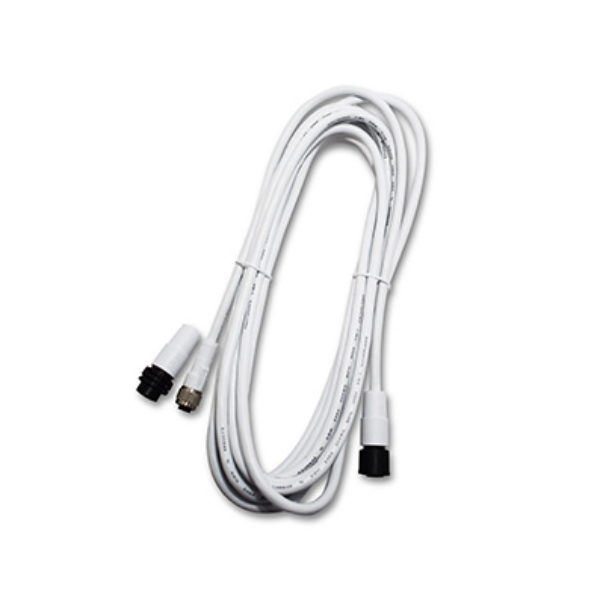

• Connects Gavita® EL3 Master controller to first Titan Controls® VPD Sensor or Titan Controls® Substrate Sensor.
• Products then daisy chain together after this first connection.

• An entry-level system for centrally controlling large rooms with Gavita e-series fixtures.
• The original industry-standard controller for e-series fixtures.
• Switch, dim and boost centrally.
• Easy plug-and-play installation.
• Simple programming.
• Extra signaling LEDs.
• Advanced temperature safety features.
• Alarm notifications.
• Separate room temperature sensors.
• Sunrise/sunset settings.
• Controls up to 1,200 ballasts.
• Controls auxiliary equipment.
• Optional connections to Gavita's ECM units.

• Broad white light with enhanced blue spectrum which may intensify terpene and cannabinoid profiles.
• A light weight, foldable, 6-bar design based on the Gavita® Pro RS 2400e LED platform for balanced output and efficiency.
• Dimmable down to 10% with the Gavita EL3 Master controller (sold separately).
• Premium Gavita diodes.
• Embedded adapter for maximum controllability with the Gavita EL3 Master controller (sold separately).
• Broad range Gavita driver to accommodate a larger voltage range of 208 - 480 V.
• IP66 wet rating and ANSI/CAN/UL 8800 compliant.
• Assembled in the USA using foreign components.
• Five-year limited warranty.
• Dimensions: 44.8 x 43.25 x 3.3 inches (113.8 x 110 x 8.38 centimeters).
• Weight: 29.8 pounds (13.5 kilograms).
