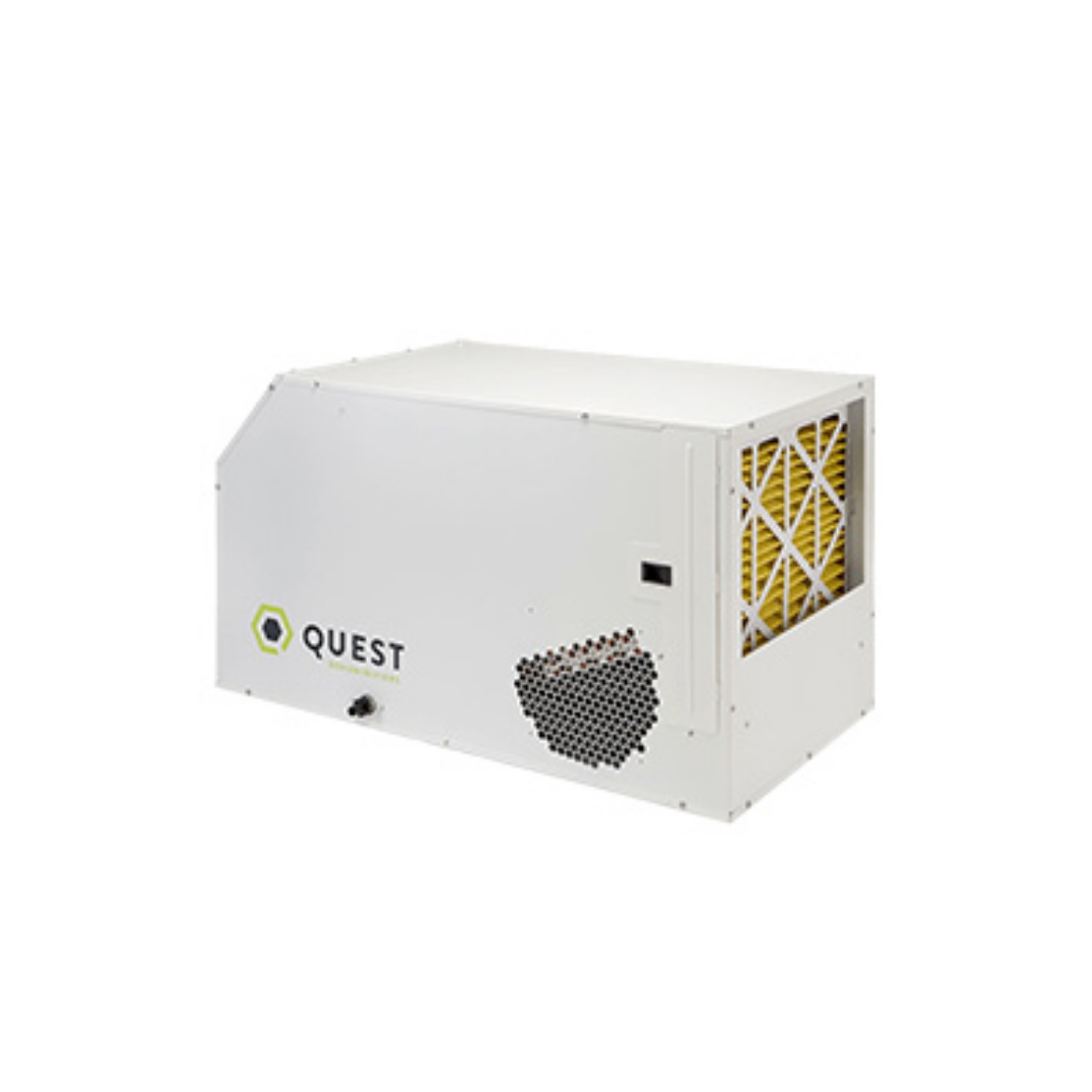

Quest 205 Dehumidifiers

Little brother to the well-known Quest 225 and Quest 335, the Quest 205 is Quest’s highest capacity 115 V dehumidifier for use in a standard outlet. Using 10 amps, the Quest 205 removes 200 pints of water per day at 80 degrees Fahrenheit and 60% relative humidity, making it even more energy-efficient than its predecessor and its competitors.

Priding itself on innovation, Quest redesigned its 205-pint dehumidifier utilizing its ground-breaking refrigeration design, called M-CoRR™ Technology. This patented new technology has many benefits, but the most notable is that it recycles energy during dehumidification, resulting in a 30% capacity boost. M-CoRR is the secret behind their industry-leading performance and energy efficiency. Learn more about its benefits here.

Easily operate the Quest 205 with onboard digital controls, or connect remotely using its low-voltage terminal block. Simply install the Quest 205 dehumidifier overhead with integrated hang points to free up floor space. Effortlessly remove a side panel to access internal components for cleaning and maintenance, without having to uninstall from the ceiling. Customer feedback is at the core of their product development, resulting in this user-friendly design.

Like all Quest products, the Quest 205 is engineered and assembled in Madison, Wisconsin using the highest quality components and materials available.

Features

• High efficiency: No dehumidifier is more efficient at this capacity.
• Patented multi-coil technology: Achieves highest efficiencies available in the market.
• Onboard dehumidistat: Precise setpoints and a low voltage terminal block.
• Overhead or ground placement: Built to fit what works for your space.
• Plug-n-play: No installation required.
• Widest operating range: Of temperature and relative humidity.
• UL rated and ETL listed: The highest safety standard.
• Long power cord: For extended reach.
• Auto restart: Unit automatically defaults to prior settings in the event of a power outage.
• MERV 13 filtration: Superior filtration removes more harmful contaminants from the air such as dust, pollen, and mold, as well as bacteria and some viruses.
• Digital control: Digital control interface with external control option.
• Integrated handles and hanging points: For easier movement and installation,
• Assembled in Madison, Wisconsin: Built to last.

Specifications

@ 80°F | 60% RH

• Water removal: 200 pints/day.
• Efficiency: 7.7 pints/kWh.
• Energy factor: 3.6 liters/kWh.
• Current draw: 10 amps.
• Power: 1,100 watts.
• BTU (total): 12,800.
• BTU (heat of condensation): 9,100.
• BTU (motor load): 3,700.

@ 75°F | 50% RH

• Water removal: 135 pints/day.
• Efficiency: 5.4 pints/kWh.
• Energy factor: 2.6 liters/kWh.
• Current draw: 8.9 amps.

• Dehumidifier type: Refrigerant dehumidifier.
• CFM: 575.
• Operating temperature: 56°F min – 95°F max (13.3°C min – 35°C max).
• Supply voltage: 110–120 VAC, 1 phase, 60 Hz.
• Unit dimensions (L x W x H): 26.8 x 23.6 x 20.9 in (68.072 x 59.944 x 53.086 cm).
• Unit weight: 130 lb (59 kg).
• Control type: Onboard controls with low voltage terminal block
• Air filter MERV rating: MERV 13.
• Air filter dimensions: 18 x 18 x 2 in (45.7 x 45.7 x 5.1 cm).
• Power cord: 9 ft (2.7 m), NEMA 5-15P.
• Refrigerant type: R454B.
• Refrigerant amount: 3 lb 2 oz (1.45 kg).
• Drain port connection: 3/4 in threaded NPT.
