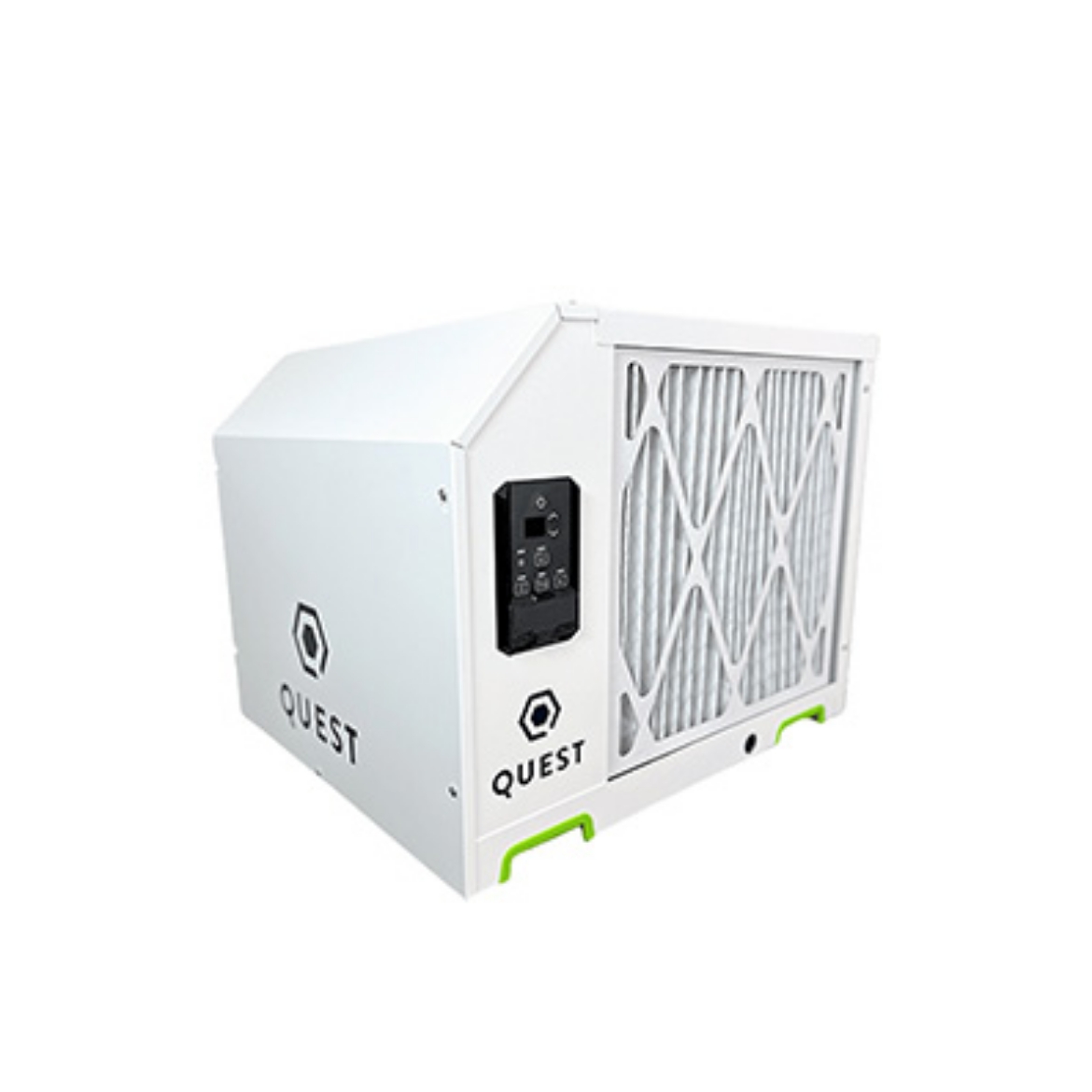

Quest 225 208/230 V Dehumidifier

The Quest 225 208/230V Dehumidifier boasts Quest’s energy-efficient M-CoRR™ Technology, a compact size, digital controls with a terminal block for optional external controls, and the Quest-signature integrated lift and hang points. As its name suggests, this new and improved Quest 225 also features a flexible voltage range for more installation options.

The Quest 225 208/230V utilizes their unique, patented refrigeration system, M-CoRR, which recycles excess heat to provide the highest energy efficiencies available on the market, while reducing heat (BTUs) output into your space. Less heat in your space results in less A/C run time, cutting additional operational costs. Rest assured, this high-efficiency unit meets California Title 24 requirements for ducted (“whole-home”) installations.

Along with its unmatched efficiency, this model exhibits exceptional MERV-13 air filtration without weakening the machine’s performance like other options on the market. MERV-13 air filtration (20% more effective than MERV-11) keeps your air safer and healthier while helping to prevent product loss from mold, mildew, viruses, and other airborne particulates.

The Quest 225 208-230V dehumidifier is proudly engineered and assembled in Madison, Wisconsin, USA

Features

• High efficiency: No dehumidifier is more efficient at this capacity.
• Patented multi-coil technology: Achieves highest efficiencies available in the market.
• Superior air filtration: MERV-13 air filter is 20% more effective than MERV-11, eliminating more particulates for cleaner air.
• Compact unit: For mobility and a small footprint that won’t interfere with operations.
• Overhead or ground placement: Built to fit what works for your space.
• UL rated and ETL listed: The highest safety standard.
• MERV 13 filtration: Superior filtration removes more harmful contaminants from the air such as dust, pollen and mold as well as bacteria and some viruses.
• Integrated handles & hanging points: For easier movement and installation.
• Plug-n-play: No installation required.
• High efficiency: No dehumidifier is more efficient.
• Auto restart: Unit automatically defaults to prior settings in the event of a power outage.
• Widest operating range: Of temperature and relative humidity.
• Long power cord: For extended reach.
• Digital control: Digital control interface with external control option.

Specifications

@ 80°F | 60% RH

• Water removal: 225 pints/day.
• Efficiency: 7.6 pints/kWh.
• Energy factor: 3.6 liters/kWh.
• Current draw: 5.5 amps @230 V / 6.1 amps @ 208 V.
• Power: 1,230 watts.
• BTU (total): 14,400.
• BTU (heat of condensation): 10,200.
• BTU (motor load): 4,200.

@ 75°F | 50% RH

• Water removal: 130 pints/day.
• Efficiency: 4.7 pints/kWh.
• Energy factor: 2.2 liters/kWh.
• Current draw: 5.0A @ 230 V / 5.5A @ 208 V.

• Dehumidifier type: Refrigerant dehumidifier.
• CFM: 630.
• Operating temperature: 56°F min – 95°F max (13.3°C min – 35°C max).
• Supply voltage: 208-230 V.
• Unit dimensions (L x W x H): 26.8 x 23.6 x 20.9 in (68.07 x 59.94 x 53.09 cm).
• Unit weight: 130 lb (59 kg).
• Control type: Onboard controls with low voltage terminal block
• Air filter MERV rating: MERV 13.
• Air filter dimensions: 18 x 18 x 2 in (45.7 x 45.7 x 5.1 cm).
• Recommended breaker size: 15.
• Power cord: 14/3, SJTW (6 ft / 1.8 m) / NEMA 6-15P.
• Refrigerant type: R454B.
• Refrigerant amount: 3 lb 4 oz (1.47 kg).
• Drain port connection: 3/4 in threaded NPT.
• Fans: Single speed impeller.
