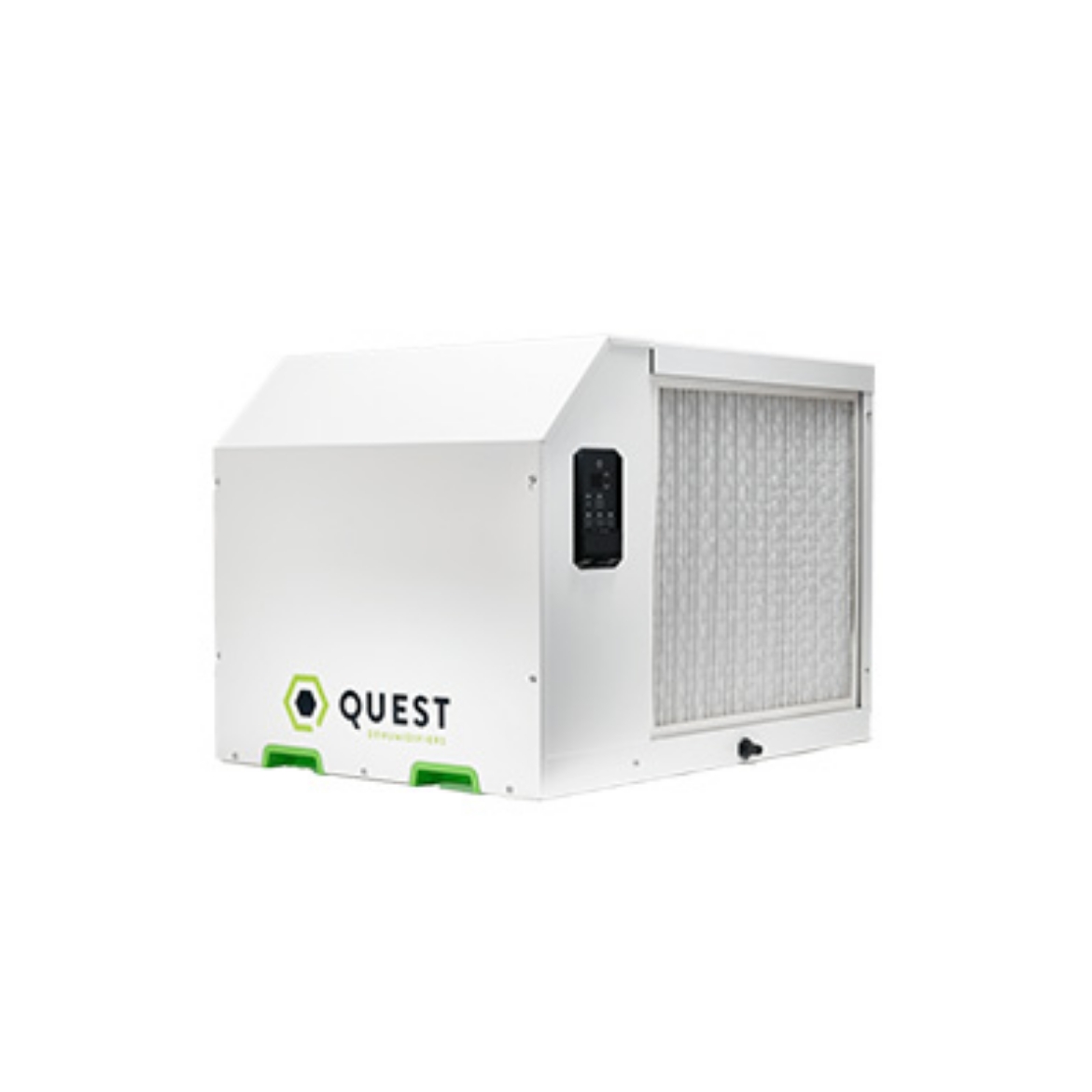

The Quest 335 208/230V Dehumidifier is engineered specifically for commercial spaces facing a heavy moisture load, like indoor agriculture and water treatment facilities. At the core of Quest’s 335 features are their sophisticated refrigeration system, M-CoRR™ Technology, and digital controls with the versatility to work with external controls.
In addition to industry-leading MERV-13 filtration, the 335 features Quest’s filter compensation technology, which increases fan speed as the filter becomes increasingly clogged with pollen, powdery mildew, dust, and dirt. This speed adjustment with static pressure changes allows for the same amount of air to pass through the filter without reducing the cubic feet for minute (CFM). As a result, the Quest 335 can work consistently and constantly to optimize your environment with maximum energy efficiency and consistency.
Both Quest 335 units (208/230 V and 277 V) boast their unique patented M-CoRR Technology. This advanced multi-coil design is similar to the one used in the Quest 506. The end result is 345 pints of water pulled from the air every 24 hours at 80F and 60% relative humidity at an impressive 8 pints/kWh.
All refrigerant dehumidifiers create heat as a byproduct of the dehumidification process. Their multi-coil refrigeration design recycles excess heat to provide the highest efficiencies available on the market, while reducing heat (BTUs) output into your space. When you combine the dollars associated with low energy consumption, reduced air conditioning usage, and a consistent environment to prevent product loss and support product quality, the Quest 335 is one of the most cost-effective units on the market.
The Quest 335 dehumidifier is engineered and assembled in Madison, Wisconsin. In addition, this unit meets California Title 24 requirements for both ducted (whole-home) and non-ducted (portable) installations.
Features
- Industry's lowest amp draw: More efficient units have less heat output and free up electricity for other equipment.
- Patented multi-coil technology: Achieves highest efficiencies available in the market.
- Superior MERV 13 filtration: 20% more effective in capturing harmful contaminants in the air than MERV-11 and 65% more effective than MERV-8.
- Overhead or ground placement: Built to fit what works for your space.
- Plug-n-play: No installation required.
- High efficiency: No dehumidifier is more efficient.
- Widest operating range: Of temperature and relative humidity.
- UL rated and ETL listed: The highest safety standard.
- Digital control: Digital control interface with external control option.
- Integrated handles: For ease of movement.
- Long power cord: For extended reach.
- Auto restart: Unit automatically defaults to prior settings in the event of a power outage.
- MERV 13 filtration: Superior filtration removes more harmful contaminants from the air such as dust, pollen and mold as well as bacteria and some viruses.
- Filter compensation technology: Compensates for increased static pressure due to filters or ducting, providing consistent powerful airflow.
- Patented multi-coil technology: Achieves highest efficiencies available in the market.
Specifications
@ 80°F | 60% RH
- Water removal: 345 pints/day.
- Efficiency: 8.0 pints/kWh.
- Energy factor: 3.8 liters/kWh.
- Current draw: 8.4A @ 208 V / 7.6A @ 230 V.
- Power: 1,700 watts.
- BTU (total): 21,500.
- BTU (heat of condensation): 15,700.
- BTU (motor load): 5,800.
@ 75°F | 50% RH
- Water removal: 221 pints/day.
- Efficiency: 6 pints/kWh.
- Energy factor: 2.8 liters/kWh.
- Dehumidifier type: Refrigerant dehumidifier.
- CFM: 900.
- Operating temperature: 56°F min – 95°F max (13.3°C min – 35°C max).
- Supply voltage: 208–230 VAC, 1 Phase, 60 Hz.
- Unit dimensions (L x W x H): 32.9 x 24.6 x 23.7 in (83.56 x 62.48 x 60.2 cm).
- Unit weight: 215 lb (97.52 kg).
- Control type: Onboard controls with low voltage terminal block.
- Air filter MERV rating: MERV 13.
- Air filter dimensions: 20 x 22 x 2 in (50.8 x 55.88 x 5.1 cm).
- Power cord: 14ga NEMA 6-15P (10 ft / 3.04 m).
- Refrigerant type: R454B.
- Refrigerant amount: 3 lb 8 oz (1.58 kg).
- Drain port connection: 3/4 in threaded NPT.
- Fans: Variable speed EC motor.
