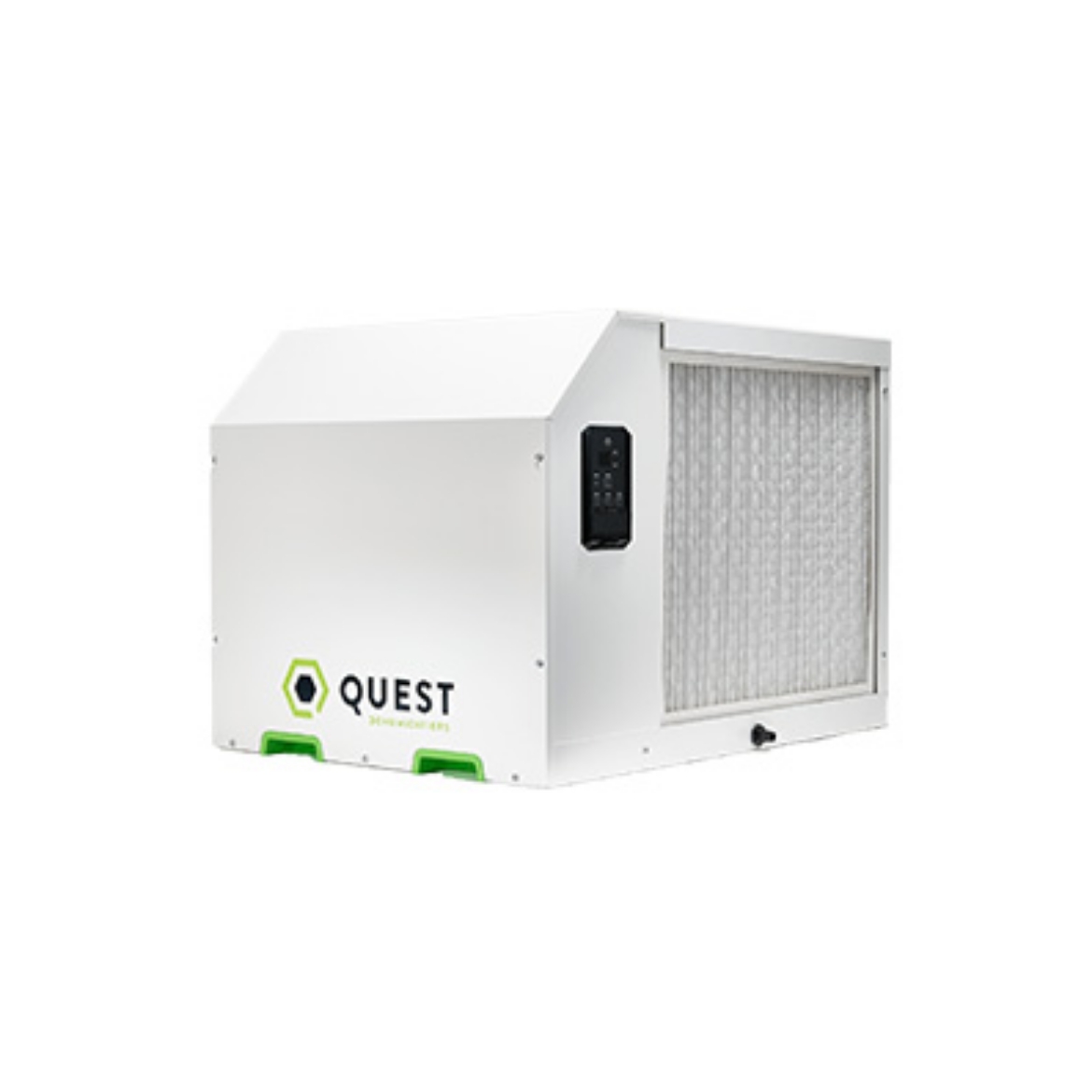

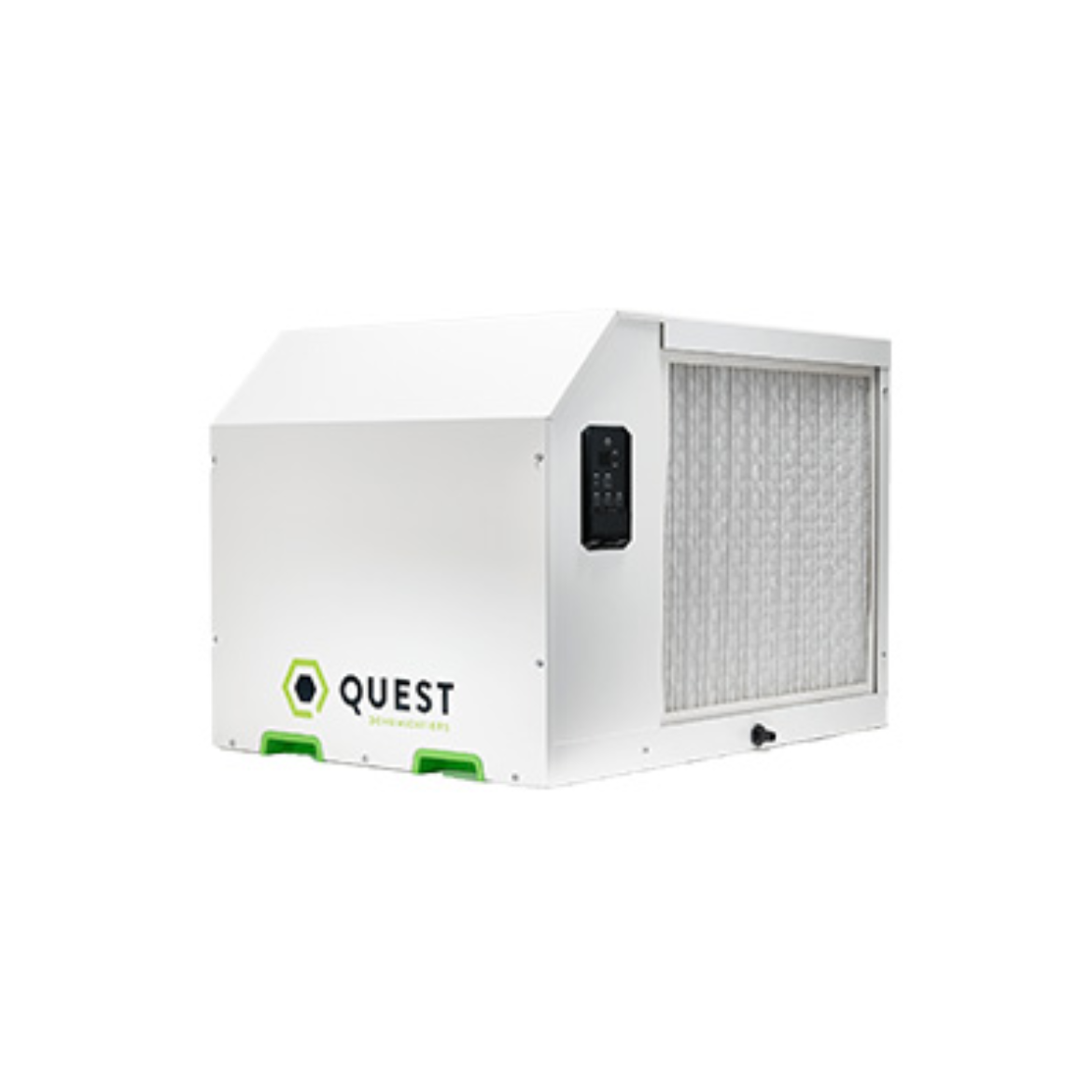

Quest 335 277 V Dehumidifier

The Quest 335 277 V Dehumidifier offers the same quality and features as their original Quest 335 208/230V units but with 277 V voltage for use in commercial and industrial facilities. The 277 V unit is an excellent fit for grow rooms, many of which traditionally have 277 V outlets already installed for lighting. As an added benefit, these higher voltage units use less amperage, freeing up electricity for other equipment in your facility.

Both Quest 335 units (208/230 V and 277 V) boast their unique patented M-CoRR™ Technology. This advanced multi-coil refrigeration design recycles excess heat to provide the highest efficiencies available on the market while reducing heat (BTUs) output into your space.

The higher the MERV rating, the better a filter is at capturing particulates from the air. The Quest 335 features industry-leading MERV-13 filtration, which is 20% more effective than MERV-11 and 65% more effective than MERV-8 in capturing harmful particulates such as mold spores, dust, allergens, bacteria, and virus carriers. This higher filtration helps you to maintain a cleaner, healthier environment for your goods, processes, and staff.

The Quest 335 277 V dehumidifier is engineered and assembled in Madison, Wisconsin. In addition, this unit meets California Title 24 requirements for both ducted (whole-home) and non-ducted (portable) installations.

Features

• Industry's lowest amp draw: More efficient units have less heat output and free up electricity for other equipment.
• Patented multi-coil technology: Achieves highest efficiencies available in the market.
• Industry-leading MERV 13 filtration: Powerful air filtration, facilitating a cleaner, healthier environment without choking your machine.
• Overhead or ground placement: Built to fit what works for your space.
• Plug-n-play: No installation required.
• High efficiency: No dehumidifier is more efficient.
• Widest operating range: Of temperature and relative humidity.
• UL rated and ETL listed: The highest safety standard.
• Digital control: Digital control interface with external control option.
• Onboard dehumidistat: Along with a low voltage terminal block.
• Integrated handles: For ease of movement.
• Long power cord: For extended reach.
• Auto restart: Unit automatically defaults to prior settings in the event of a power outage.
• MERV 13 filtration: Superior filtration removes more harmful contaminants from the air such as dust, pollen and mold as well as bacteria and some viruses.
• Filter compensation technology: Compensates for increased static pressure due to filters or ducting, providing consistent powerful airflow.

Specifications

@ 80°F | 60% RH

• Water removal: 345 pints/day.
• Efficiency: 8.0 pints/kWh.
• Energy factor: 3.8 liters/kWh.
• Current draw: 6.3 amps.
• Power: 1,700 watts.
• BTU (total): 21,500.
• BTU (heat of condensation): 15,700.
• BTU (motor load): 5,800.

@ 75°F | 50% RH

• Water removal: 221 pints/day.
• Efficiency: 6 pints/kWh.
• Energy factor: 2.8 liters/kWh.
• Current draw: 6.3 amps.

• Dehumidifier type: Refrigerant dehumidifier.
• CFM: 900.
• Operating temperature: 56°F min – 95°F max (13.3°C min – 35°C max).
• Supply voltage: 277 V.
• Unit dimensions (L x W x H): 32.9 x 24.6 x 23.7 in (83.56 x 62.48 x 60.2 cm).
• Unit weight: 215 lb (97.52 kg).
• Control type: Onboard controls with low voltage terminal block.
• Air filter MERV rating: MERV 13.
• Air filter dimensions: 20 x 22 x 2 in (50.8 x 55.88 x 5.1 cm).
• Power cord: NEMA L7-15P (10 ft / 3.04 m).
• Refrigerant type: R454B.
• Refrigerant amount: 3 lb 8 oz (1.58 kg).
• Drain port connection: 3/4 in threaded NPT.
• Fans: Variable speed EC motor.
