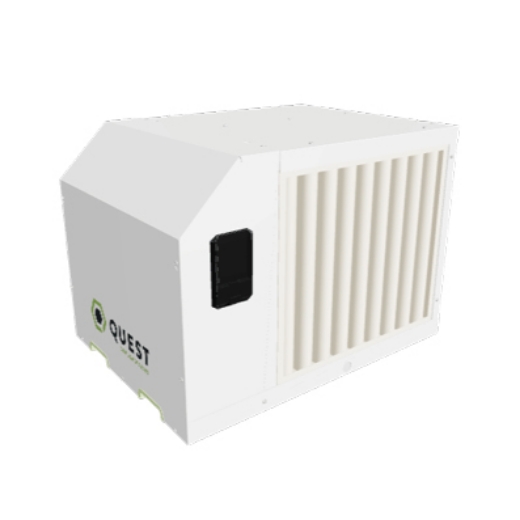

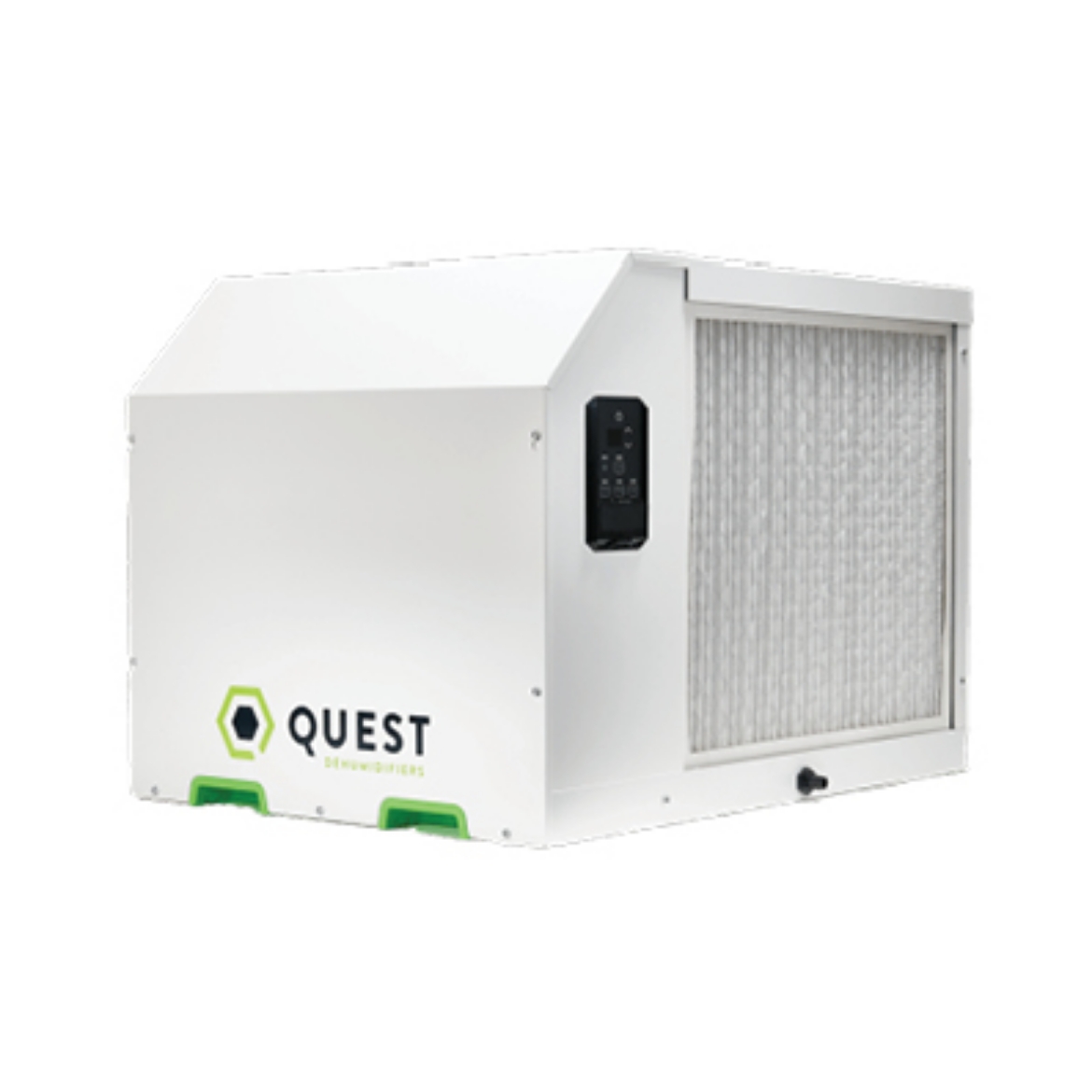

Quest 335 277 V Overhead Dehumidifier, 1/PL

A Heavy Duty, High-Efficiency Dehumidifier

The Quest 335 277 V Dehumidifier offers the same quality and features as their original Quest 335 208/230V units but with 277 V voltage for use in industrial facilities. The 277 V unit is an excellent fit for grow rooms, many of which traditionally have 277 V outlets already installed for lighting. As an added benefit, these higher voltage units use less amperage, freeing up electricity for other equipment in your facility.

Advanced Dehumidifier Technology

Both Quest 335 units (208/230 V and 277 V) boast their unique patented M-CoRR technology. This multi-coil refrigeration design recycles excess heat to provide the highest efficiencies available on the market while reducing heat (BTUs) output into your space.

Improved Air Quality

In addition to industry-leading MERV-13 filtration, the 335 features Quest’s filter compensation technology. Filter compensation technology increases fan speed as the filter becomes increasingly clogged with dust, pollen, powdery mildew, and dirt. This speed adjustment allows the same amount of air to pass through the filter without reducing the cubic feet per minute (CFM). As a result, the Quest 335 can work consistently to optimize your environment with maximum energy efficiency and consistency.

Product of the USA

The Quest 335 277V dehumidifier is engineered and assembled in Madison, Wisconsin. In addition, this unit meets California Title 24 requirements for both ducted (whole-home) and non-ducted (portable) installations.

Also available in 208-230 V [Q113703].

Features

• Overhead or Ground Placement: Built to fit what works for your space.
• Plug-n-Play: No installation required.
• High Efiiciency: No dehumidifier is more efficient.
• Widest Operating Range: Of temperature and relative humidity.
• UL Rated and ETL Listed: The highest safety standard.
• Digital control interface with external control option.
• Onboard Dehumidistat along with a low voltage terminal block.
• Integrated handles for ease of movement.
• Long power cord for extended reach.
• Auto Restart: Unit automatically defaults to prior settings in the event of a power outage.
• MERV 13 Filtration: Superior filtration removes more harmful contaminants from the air such as dust, pollen and mold as well as bacteria and some viruses.
• California Title 24 Compliant.

Specifications

@ 80 F | 60% RH

• Water Removal: 350 Pints/Day (165.6 Liters/Day).
• Efficiency: 8.5 Pints/kWh.
• Energy Factor: 4 Liters/kWh.
• Current Draw: 6.8 Amps.
• Power: 1,789 Watts.
• BTU (Total): 21,900.
• BTU (Heat of Condensation): 15,900.
• BTU (Motor Load): 6,000.

• Dehumidifier Type: Refrigerant Dehumidifier.
• CFM: 900.
• Operating Temperature: 56°F Min–95°F Max (13°C Min – 35°C Max).
• Supply Voltage: 277 V.
• Unit Dimensions (L x W x H): 32.9 x 24.6 x 23.7 inches (83.6 x 62.5 x 60.2 centimeters).
• Unit Weight: 215 lbs (97.5 kg).
• Control Type: Onboard digital controls with low voltage terminal block.
• Air Filter MERV Rating: MERV 13.
• Air Filter Dimensions: 20 x 22 x 2 inches (50.8 x 55.88 x 5.08 centimeters).
• Power Cord: NEMA L7-15P (10 feet / 3.05 meters).
• Refrigerant Type: R410A.
• Refrigerant Amount: 4 lbs 12 oz (2.16 kg).
• Drain Port Connection: 3/4? Threaded NPT.
• Fans: Variable speed EC Motor.
