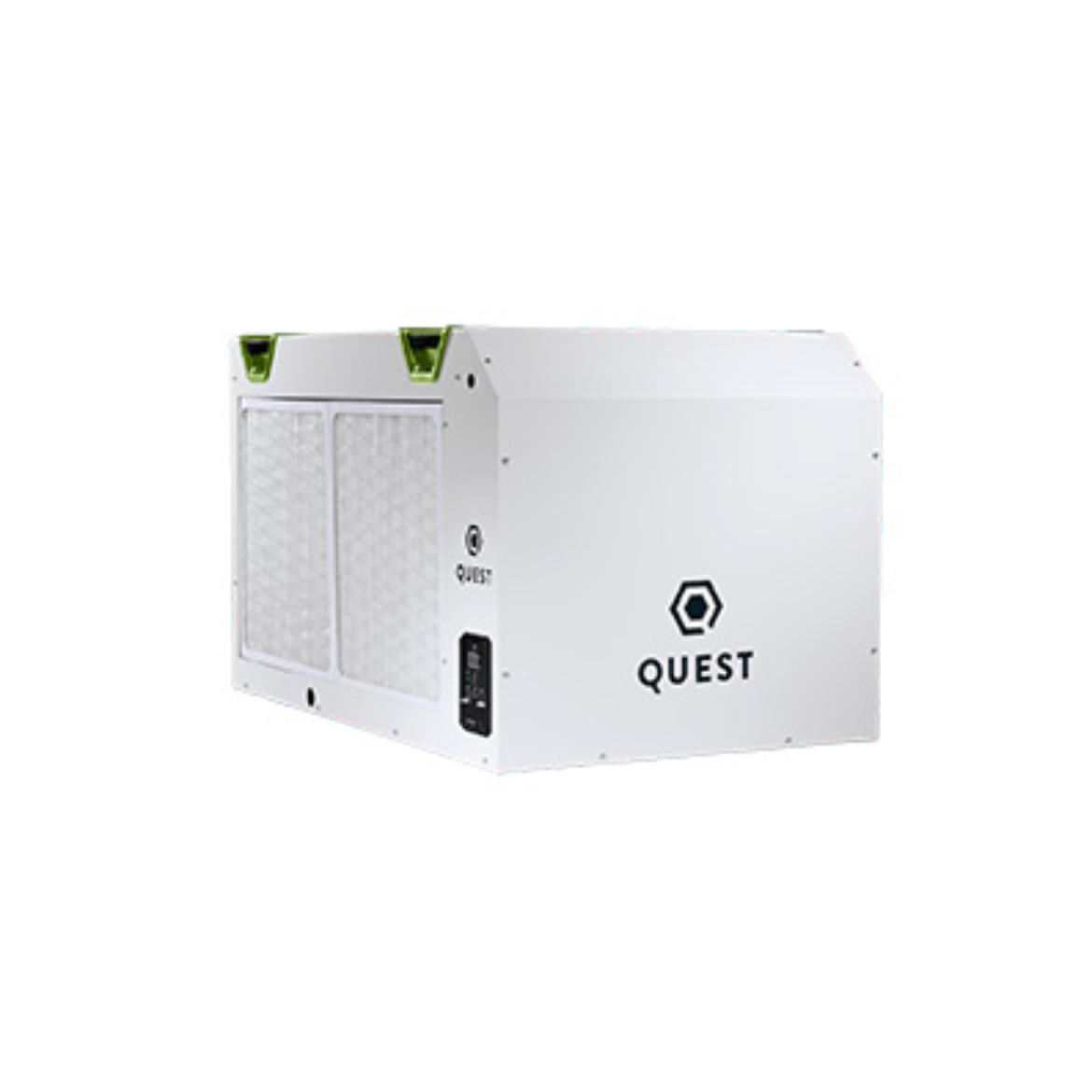

Quest 506 277 V Overhead Dehumidifier, 1/PL

Powerful and efficient, the Quest 506 277 V Dehumidifier is a high-capacity, high-efficiency unit which features their patented technology.

M-CoRR Technology

The Quest 506 277V boasts our unique patented M-CoRR technology. This multi-coil refrigeration design recycles excess heat to provide the highest efficiencies available on the market, while reducing heat (BTUs) output into your space.

Just like their original 506 230 V units, the 506 pint capacity makes it one of the most powerful commercial dehumidifiers on the market.

The 277 V voltage provides low amp draw, freeing up electricity for other equipment. Best of all these units can be installed on 277V without the additional installation of buck-boost transformers and the associated costs of wiring.

The Quest 506 277 V dehumidifier is engineered and assembled in Madison, Wisconsin. In addition, this unit meets California Title 24 requirements for both ducted (whole-home) and non-ducted (portable) installations.

Features

• Overhead or Ground Placement: Built to fit what works for your space.
• Widest operating range of temperature and relative humidity.
• UL Rated and ETL Listed: The highest safety standard.
• Integrated handles and hanging points for easier movement and installation.
• Long power cord for extended reach.
• MERV 13 Filtration: Superior filtration removes more harmful contaminants from the air such as dust, pollen, and mold, as well as bacteria and some viruses.

Specifications

@ 80 F | 60% RH

• Water Removal: 506 pints/day (239.37 liters/day).
• Efficiency: 8.1 pints/kWh.
• Energy Factor: 3.8 liters/kWh.
• Current Draw: 10 amps.
• Power: 2,700 watts.
• BTU (Total): 31,900.
• BTU (Heat of Condensation): 23,000.
• BTU (Motor Load): 8,900.

• Dehumidifier Type: Refrigerant Dehumidifier.
• CFM: 1,350 @ 0.0? WG.
• Operating Temperature: 56°F Min–95°F Max (13°C Min–35°C Max).
• Supply Voltage: 277 V.
• Unit Dimensions (W x H x L): 30.1 x 33.8 x 44.8 inches (76.5 x 85.8 x 113.7 centimeters).
• Unit Weight: 280 lbs (127 kg).
• Control Type: Requires external control.
• Air Filter MERV Rating: MERV 13.
• Air Filter Dimensions: 18 x 20 x 2 inches (45.7 cm x 50.8 cm x 5.1 cm).
• Power Cord: NEMA L7-20P.
• Refrigerant Type: R410A.
• Refrigerant Amount: 4 lb 8 oz (2.04 kg).
• Drain Port Connection: 3/4? Threaded NPT.
