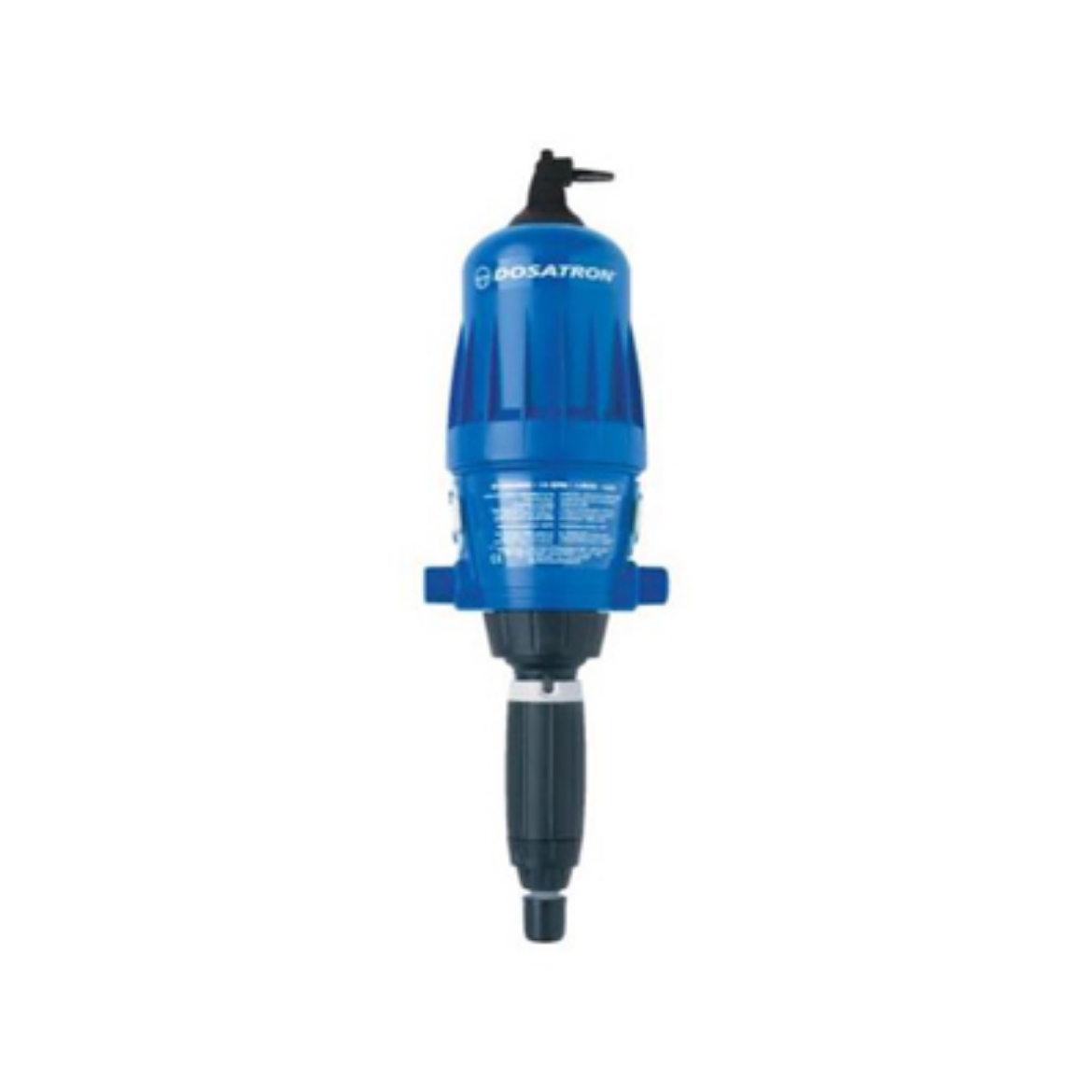

    Dosatron Water Powered Doser 14 GPM 1:3000 to 1:333, Viton Seals [D14MZ3000VFBPHY]

    Manufacturer: Dosatron
    • The best pump for mixing nutrients.
    • Dilution Range: 1:3000 to 1:333 (0.03% to 0.3%).
    • Ratio Range mL: 1.25 to 11 mL.
    • Ratio Range tsp: 0.25 to 2.25 tsp.
    • Water Flow Range: 0.05 to 14 GPM.
    • Operating Pressure Range: 4.3 to 85 PSI.
    • Dimensions: 21″ x 6 5/16″.
    • Weight: 6 lbs.
    • Connection Size: 3/4″ NPT.
    • Maximum Temperature: 104°F (40°C).
    • Includes a union for easy installation into the Nutrient Delivery System.
    SKU: Q101273
    Manufacturer part number: D14MZ3000VFBPHY
    Availability:
    Contact Us
    i h h

    The Dosatron® D14MZ3000VFBPHY is perfect for the indoor grower. This water-powered doser is directly installed into the water supply line, operating by using water pressure as the power source (no electricity needed). The water activates the Dosatron, which takes up the required percentage of concentrate. Inside the Dosatron, the concentrate is mixed with the water. The water pressure forces the solution downstream. It comes with a custom scale that reads in milliliters and teaspoons per gallon and it includes a union for easy installation into the Nutrient Delivery System.

    The operating pressure range of the D14MZ3000VFBPHY is 4.3-85 PSI and water flow range is 0.05-14 GPM. Injection capabilities of 1:3000 to 1:333 (0.03 to 0.3%) (0.384 to 0.0425 oz per gallon). Unit has 3/4-inch NPT connections.

    Included Accessories: 6-inch clear suction tube, strainer, bypass, weight, mounting bracket and operating manual.

    Recommended Accessories: 200 mesh filter, check valve, pressure, regulator, flow restrictor.

    D14MZ3000VFBPHY Maintenance Kits

    • Mini-Maintenance Kit (Part#: PJDl139MINI-H) - For regular maintenance.
    • Injection Seal Kit (Part#: PJDl139) - For yearly maintenance.
    • Rebuild Kit (Part #: MKD14MZ3000 - Extends the life of your unit.
    *
    *
    *
