Dosatron Water Powered Doser 14 GPM 1:500 to 1:50, Viton Seals [D14MZ2VFBPHY]

Manufacturer: Dosatron

The best fertilizer injector for drip irrigation.
Dilution Range: 1:500 to 1:50 (0.2% to 2%).
Ratio Range mL: 7.5 to 75 mL/gal.
Ratio Range tsp: 1.5 to 15 tsp.
Water Flow Range: 0.05 to 14 GPM.
Operating Pressure Range: 4.3 to 85 PSI.
Dimensions: 19 1/18″ x 6 5/16″.
Weight: 6 lbs.
Connection Size: 3/4″ NPT.
Maximum Temperature: 104°F (40°C).
Includes a union for easy installation into the Nutrient Delivery System.

SKU: Q101274

Manufacturer part number: D14MZ2VFBPHY

Availability:

Qty:

i h h

Overview
Contact Us

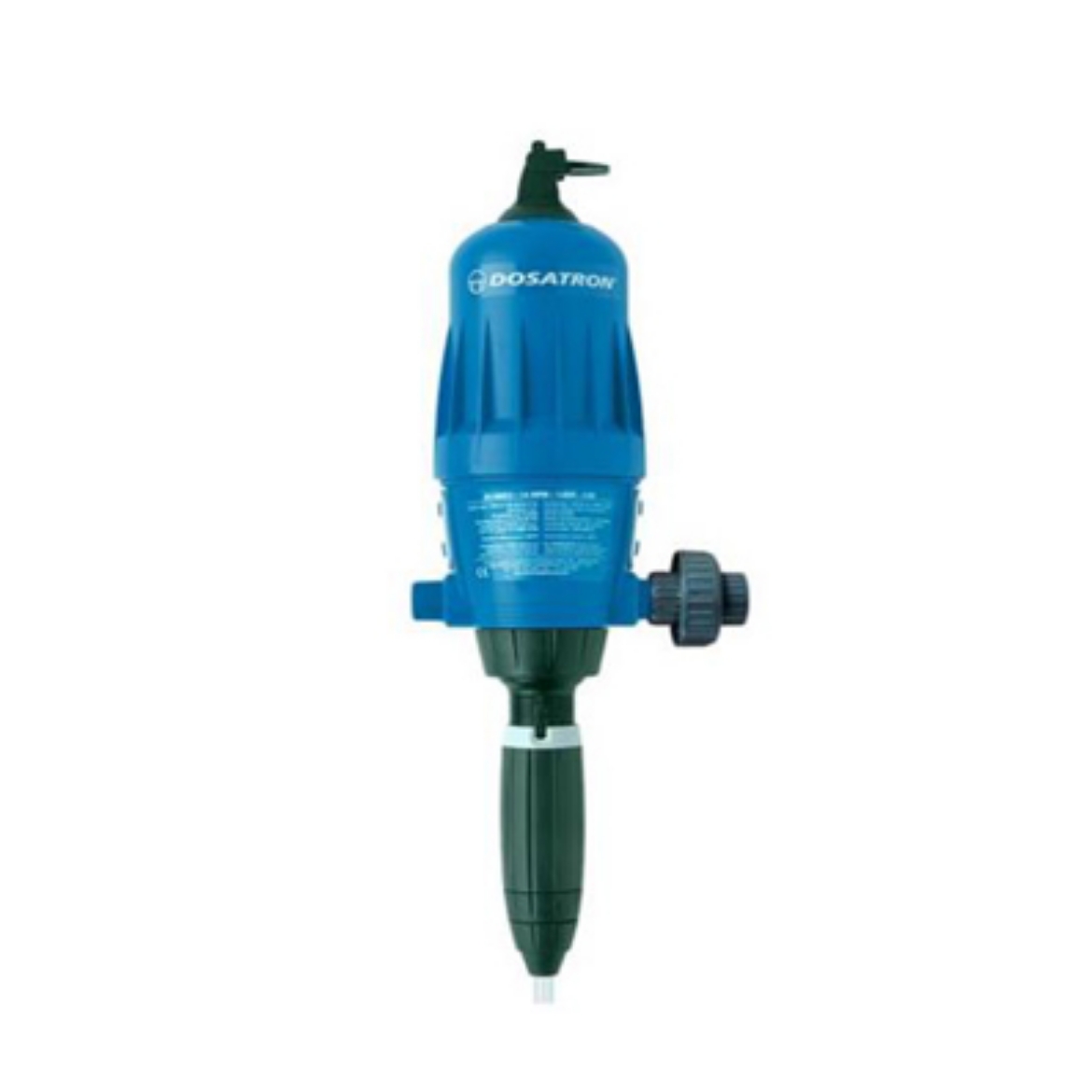

The Dosatron® D14MZ2VFBPHY is perfect for the indoor grower. This water-powered doser is directly installed into the water supply line, operating by using water pressure as the power source (no electricity needed). The water activates the Dosatron, which takes up the required percentage of concentrate. Inside the Dosatron, the concentrate is mixed with the water. The water pressure forces the solution downstream. It comes with a custom scale that reads in milliliters and teaspoons per gallon and it includes a union for easy installation into the Nutrient Delivery System.

Operating pressure range is 4.3-85 PSI and water flow range is 0.05-40 GPM. Injection capabilities of 1:500 to 1:50 (0.2-2%) / 0.256 to 2.560 oz per gallon. Unit has 3/4-inch NPT connections.

Included Accessories: 6-inch clear suction tube, strainer, bypass, weight, mounting bracket and operating manual.

Recommended Accessories: 200 mesh filter, check valve, pressure regulator, flow restrictor.

D14MZ2VFBPHY Maintenance Kits

Mini-Maintenance Kit (Part #: PJDl116MINI-H) - For regular maintenance.
Injection Seal Kit (Part #: PJDl116) - For yearly maintenance.
Rebuild Kit (Part #: MKD14MZ2) - Extends the life of your Dosatron.
