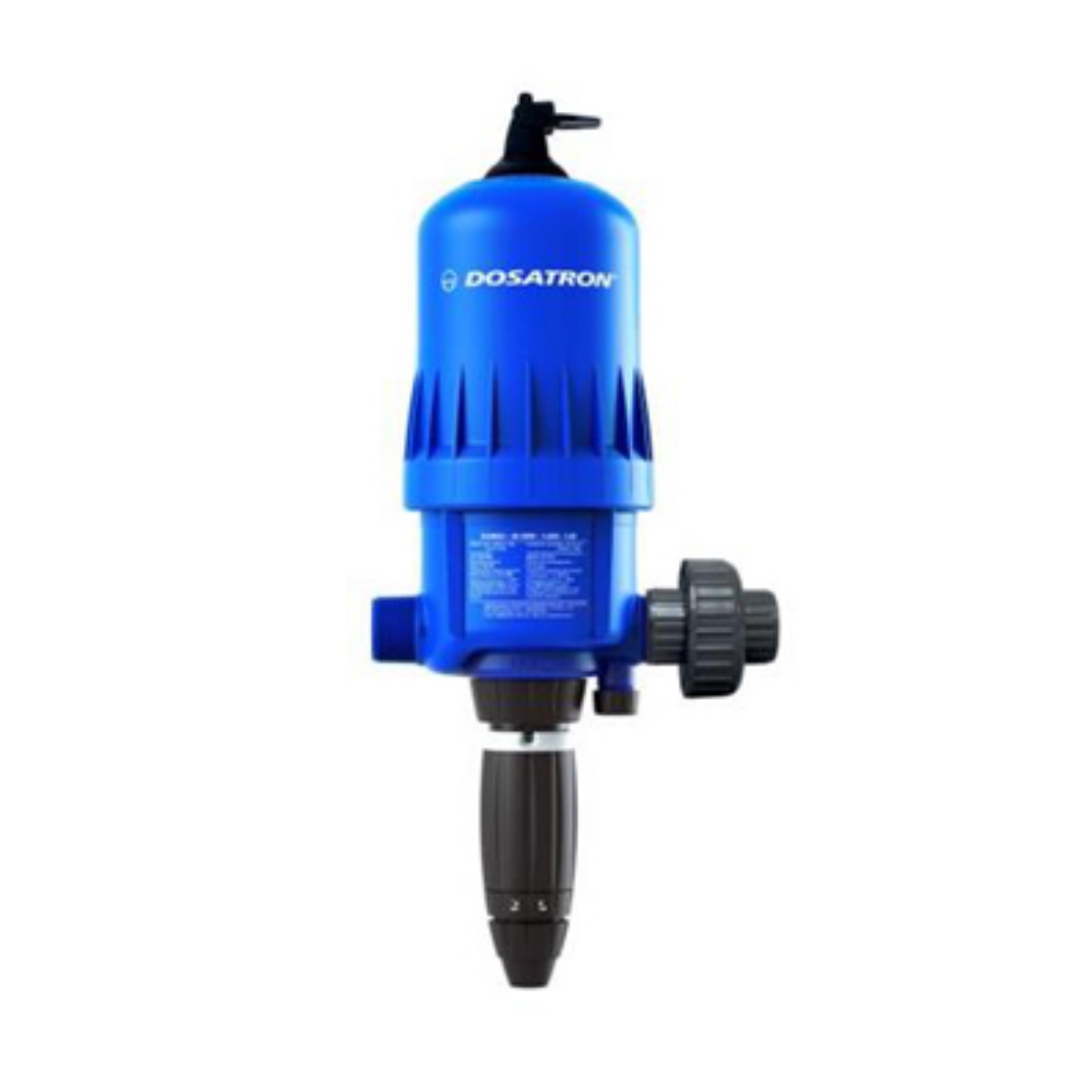

    Dosatron Water Powered Doser 40 GPM 1:500 to 1:50, Viton Seals [D40MZ2BPVFHY]

    Manufacturer: Dosatron
    • High flow nutrient dosing pump.
    • Dilution Range: 1:500 - 1:50 (0.2 to 2%).
    • Ratio Range mL: 7.5 to 75 mL.
    • Ratio Range tsp: 1.5 to 15 tsp.
    • Water Flow Range: 2.2 to 40 GPM.
    • Operating Pressure Range: 4.3 to 116 PSI.
    • Dimensions: 25 1/4″ x 8 1/2″.
    • Weight: 12 lbs.
    • Connection Size: 1 1/2″ NPT.
    • Maximum Temperature: 104°F (40°C).
    • 63% fewer parts, metal free piston.
    • Can be installed in parallel to increase the water flow.
    • Includes a union for easy installation into the Nutrient Delivery System.
    SKU: Q102179
    Manufacturer part number: D40MZ2BPVFHY
    Availability:
    Contact Us
    i h h

    The Dosatron® D40MZ2BPVFHY is perfect for the indoor grower. This water-powered doser is directly installed into the water supply line, operating by using water pressure as the power source (no electricity needed). The water activates the Dosatron, which takes up the required percentage of concentrate. Inside the Dosatron, the concentrate is mixed with the water. The water pressure forces the solution downstream. It includes a union for easy installation into the Nutrient Delivery System.

    Operating pressure range is 4.3 to 116 PSI and water flow range is 2.2 to 40 GPM. Injection capabilities of 1:500 to 1:50 (0.2-2%). Unit has 1.5-inch NPT connections.

    Included Accessories: 6-inch clear suction tube, weighted strainer, mounting bracket and operating manual.

    Recommended Accessories: 200 mesh filter, check valve, pressure regulator, flow restrictor.

    D40MZ2BPVFHY Maintenance Kits

    • Mini-Maintenance Kit (Part#: PJDl120VMINI-H) - For regular maintenance
    • Injection Seal Kit (Part#: PJDl120V) - For yearly maintenance
    *
    *
    *
