Chillers, Heaters & Purification

• Designed for use with commercial, industrial, and heavy-industrial RO systems.
• Suitable for anti-scalant, acid, or chlorine injection applications.
• Includes a 0.0-3 GPD adjustable peristaltic pump.
• Comes with a 15-gallon tank.
• Features a low-level shut-off float switch.
• Operates on 220V Single Phase 60Hz (0.9A).

• HydroLogic HyperLogic AS111 is a broad-spectrum anti-scalant concentrate.
• Designed for commercial, industrial, and heavy-industrial RO systems.
• Inhibits calcium carbonate scale build-up.
• Works effectively with HyperLogic Chemical Injector Systems.
• Prolongs membrane life.
• Cost-effective alternative to water softeners.
• Reduces system downtime and drain-to-waste from softener regeneration.

• Effectively removes silt, rust, dirt, and other suspended solids.
• Commonly used in industrial and heavy-industrial reverse osmosis (RO) systems.
• Installed in stainless steel housing before the RO unit.
• Provides OEM-level protection for costly equipment, including RO pumps.
• Helps extend the life of RO membranes.
• Filters have a 5-micron rating.
• Made of melt-blown polypropylene for ultra-fine filtration.
• Measures 2.5 x 20 inches.

• Helps remove calcium carbonate, hardness, iron, and mineral scale build-up from Industrial and Heavy-Industrial Series RO membranes.
• Regular membrane cleaning can extend membrane life, enhance permeate production, and optimize salt rejection.
• Membrane cleaning should be included in your site's SOP (standard operating procedure) for HyperLogic systems.
• Indicators for cleaning include lower permeate flow or reduced salt rejection from the RO.
• 25 lb pail.

• Achieves longer membrane life, increased permeate production, and optimal salt rejection.
• Cleaning should be part of the site's SOP (standard operating procedure) for HyperLogic systems.
• Indicators for cleaning include lower permeate flow, strong odors, or mold growth on the membrane scroll end.
• 25 lb pail.

Formerly HyperLogic HL 13564.

• Use the 1/4-inch OD tubing for micRO-75™, Stealth-RO™, or smallBoy®.
• Use the 3/8-inch OD tubing for Evolution-RO™ or Merlin-Garden Pro™.
• Length: 50 foot (15.24 meter) rolls.
• Colors: Black or Blue.

Suitable for use with reservoirs, hydroponic systems and aquariums. Features a commercial-grade titanium heat exchanger for optimum performance and corrosion resistance. High-quality Japanese compressor is extremely efficient and reliable. Heavy-duty galvanized steel housing with a durable powder-coated finish. Digital LCD display allows for easy operation. Remote temperature controller with a 30 ft cord allows user to monitor and adjust chiller settings when the unit is installed in a remote location. Auto restart and temperature memory in the event of a power failure. Uses environmentally friendly R410A refrigerant. Comes with 2 fittings to allow chiller to be plumbed with 1 in hard PVC pipe or 1 in flexible tubing.

Heater tube is fully submersible. Automatic electronic heater. Double heating tube. Very durable and reliable. Easy temperature control. Ideal for saltwater and freshwater. Temp range: 68F (20C) to 93F (34C).

Suitable for use with reservoirs, hydroponic systems and aquariums. Features a commercial-grade titanium heat exchanger for optimum performance and corrosion resistance. High-quality Japanese compressor is extremely efficient and reliable. Heavy-duty galvanized steel housing with a durable powder-coated finish. Digital LCD display allows for easy operation. Remote temperature controller with a 30 ft cord allows user to monitor and adjust chiller settings when the unit is installed in a remote location. Auto restart and temperature memory in the event of a power failure. Uses environmentally friendly R410A refrigerant. Comes with 2 fittings to allow chiller to be plumbed with 1 in hard PVC pipe or 1 in flexible tubing.

Suitable for use with reservoirs, hydroponic systems and aquariums. Features a commercial-grade titanium heat exchanger for optimum performance and corrosion resistance. High-quality Japanese compressor is extremely efficient and reliable. Heavy-duty galvanized steel housing with a durable powder-coated finish. Digital LCD display allows for easy operation. Remote temperature controller with a 30 ft cord allows user to monitor and adjust chiller settings when the unit is installed in a remote location. Auto restart and temperature memory in the event of a power failure. Uses environmentally friendly R410A refrigerant. Comes with 2 fittings to allow chiller to be plumbed with 1 in hard PVC pipe or 1 in flexible tubing.

Suitable for use with reservoirs, hydroponic systems and aquariums. Features a commercial-grade titanium heat exchanger for optimum performance and corrosion resistance. High-quality Japanese compressor is extremely efficient and reliable. Heavy-duty galvanized steel housing with a durable powder-coated finish. Digital LCD display allows for easy operation. Remote temperature controller with a 30 ft cord allows user to monitor and adjust chiller settings when the unit is installed in a remote location. Auto restart and temperature memory in the event of a power failure. Uses environmentally friendly R410A refrigerant. Comes with 2 fittings to allow chiller to be plumbed with 1 in hard PVC pipe or 1 in flexible tubing.

Heater tube is fully submersible. Automatic electronic heater. Double heating tube. Very durable and reliable. Easy temperature control. Ideal for saltwater and freshwater. Temp range: 68F (20C) to 93F (34C).

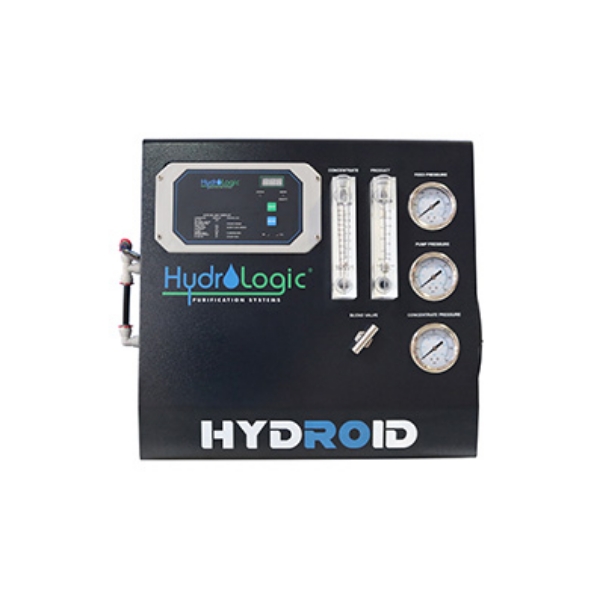

Options from 6,000 GPD to 19,000 GPD, depending on water source. Liquid filled pressure gauges for pre-filter in and out, concentrate pressure and system pressure. Stainless steel multistage high pressure RO pump with SS pump throttling valve. 5 micron 20 in x 4.5 in cartridge filter and housing sediment pre-filter. System control, recycle control and pump throttle valves.

• Options from 6,000 GPD to 19,000 GPD.
• Liquid filled pressure gauges for pre-filter in and out, concentrate pressure and system pressure.
• Stainless steel multistage high pressure RO pump with SS pump throttling valve.
• 5 micron 20 in x 4.5 in cartridge filter and housing sediment pre-filter.
• Product, concentrate and recycle flowmeters.
• ARCS treats the condensate runoff for general reuse without producing any waste.
• ARCS treats 10 GPM [14,400 GPD] up to 20 GPM [28,800 GPD].

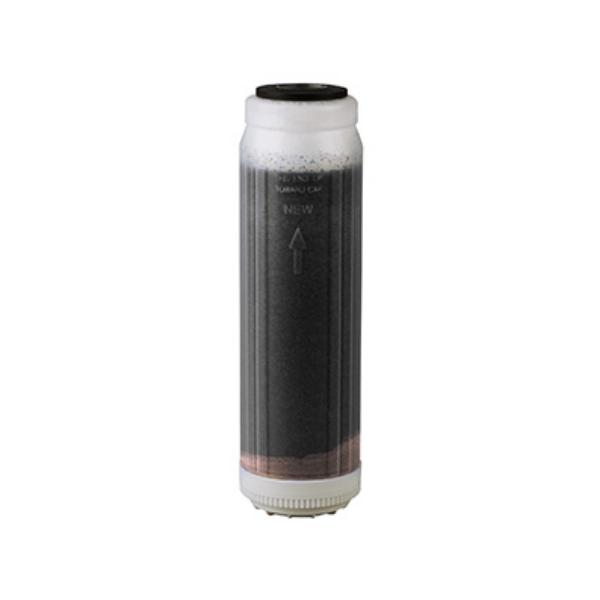

The Evolution RO1000™ KDF/Catalytic Carbon pre-filter is the standard carbon pre-filter included with system. For chlorine and chloramines reduction for city water. Also for well water for iron hydrogen sulfide and heavy metals reduction. The Evolution RO1000™ Membrane Element is the standard membrane included with system. 2 needed for system.

The Evolution RO1000™ KDF/Catalytic Carbon pre-filter is the standard carbon pre-filter included with system. For chlorine and chloramines reduction for city water. Also for well water for iron hydrogen sulfide and heavy metals reduction. The Evolution RO1000™ Membrane Element is the standard membrane included with system. 2 needed for system.

Green Coconut Carbon Filters are the carbon block pre-filter that will reduce chlorine, organic chemicals, mercury, lead, PBCs, sulfur and heavy metals. #741604 is 20 in x 4.5 in. #728845 is 20 in x 2.5 in. #741646 is 10 in x 2.5 in. #741656 is 20 in x 2.75 in.

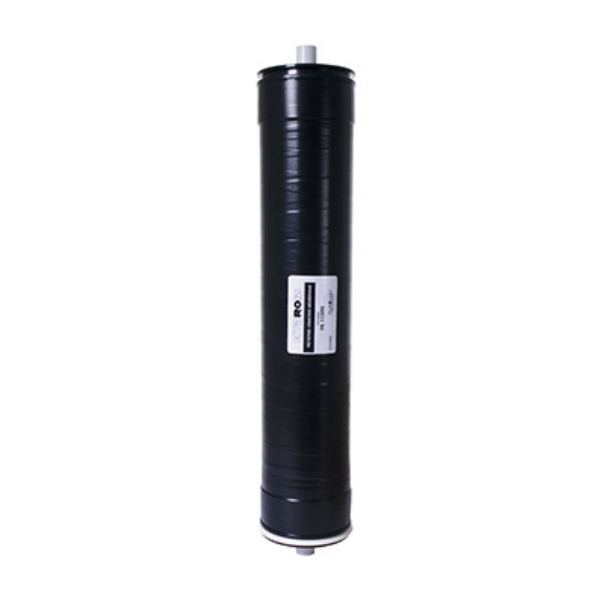

Replace membranes when product water decreases and/or ppm increase. Merlin Garden Pro and Evolution RO1000 membranes reduce 94%+ of total dissolved solids. Stealth RO100/200, Stealth RO150/300 and microRO-75 membranes reduces 98%+ of total dissolved solids. The Evolution RO1000 and Merlin Garden Pro systems need two (2) membranes. For all membranes, RO output depends on the source water temperature. At 77°, the system should produce 100% of the rated output. As the temperature drops or increases, so does the output.

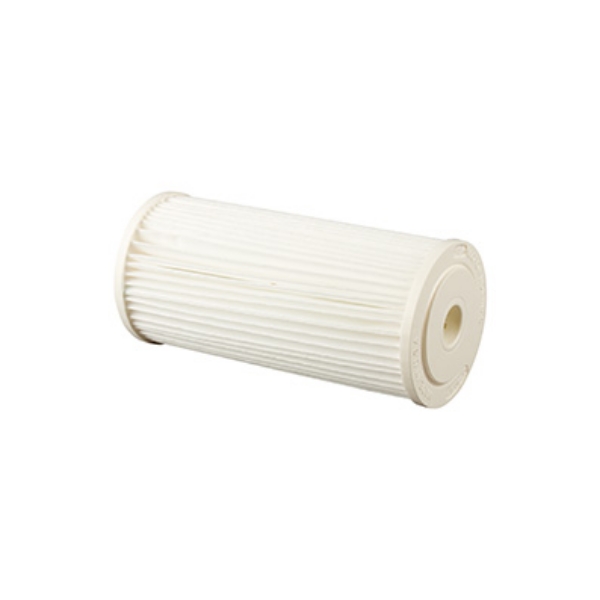

The pleated sediment filters are cleaned by rinsing regularly with a hose. The filters reduces silt, rust, dirt, sand and sediment. Change filters every 6-12 months. #741654 is 10 in x 2.5 in. #741642 is 10 in x 4.5 in. #741606 is 20 in x 4.5 in.

Green Coconut Carbon Filters are the carbon block pre-filter that will reduce chlorine, organic chemicals, mercury, lead, PBCs, sulfur and heavy metals. #741604 is 20 in x 4.5 in. #728845 is 20 in x 2.5 in. #741646 is 10 in x 2.5 in. #741656 is 20 in x 2.75 in.

This pump is designed to be installed before the Stealth RO to boost the inlet pressure. Wells and low pressure (below 40 PSI) water sources can benefit greatly from this pump. It boosts the pressure significantly, allowing the Stealth RO to run with higher flow and more efficiency while having better TDS removal. The pump is designed for long service life and runs very quietly. Comes with a high pressure switch and operates at 110V.

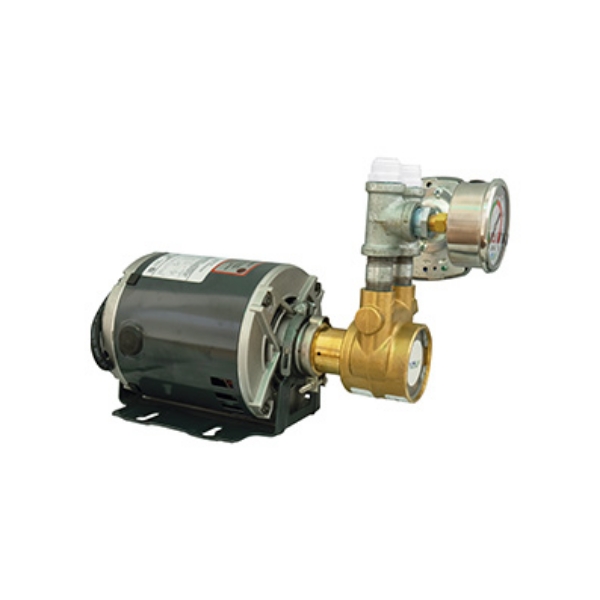

A work horse pump that will power your Evolution-RO to 80 psi (pump requires a minimum of 20 psi to operate). Heavy duty commercial booster pump designed for continuous use. Includes integrated low pressure and high pressure switches. No Electronic Shutoff Kit required when used in conjunction with the float valve Adjustable pressure dial. Direct 110V plug-in and includes pump protector (inlet filter) and 1/2 quick connect (QC) fittings. This unit does not thermally cycle.

Green Coconut Carbon Filters are the carbon block pre-filter that will reduce chlorine, organic chemicals, mercury, lead, PBCs, sulfur and heavy metals. #741604 is 20 in x 4.5 in. #728845 is 20 in x 2.5 in. #741646 is 10 in x 2.5 in. #741656 is 20 in x 2.75 in.
