Water & Aeration

• Sterile, single-use pipettes.
• Reduces risk of infectious material being passed.
• Designed for the quick and safe transfer of liquids.
• Will not shatter and break like glass pipettes.
• Packaged individually in sterile packets.
• Fits almost all needs for liquid transfer.
• 5 milliliter (0.5 ounce) pipette.

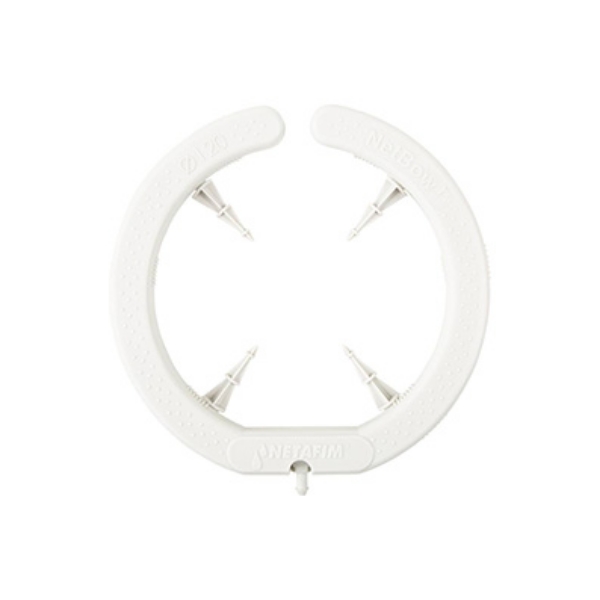

• Superior clog resistance with Netafim Typhoon™ emitters.
• Four evenly spaced emitters distribute water uniformly for optimal rootzone development.
• Quick action installation: place ring in the container, then connect the pre-cut micro tubing.
• Compatible with 2 - 15 Gallon (10 - 60 liter) containers.
• Diameter: 5 inches (120 millimeters).
• Flow rate: four outlets with flow of 0.53 GPH (2.0 L/h) each at 14.5 psi (1.0 bar).
• Chemical and UV resistance for durability.
• Colored light gray for improved light reflection.
• Max. operating pressure for hub drippers - 58.0 psi (4.0 bars).

Options from 6,000 GPD to 19,000 GPD, depending on water source. Liquid filled pressure gauges for pre-filter in and out, concentrate pressure and system pressure. Stainless steel multistage high pressure RO pump with SS pump throttling valve. 5 micron 20 in x 4.5 in cartridge filter and housing sediment pre-filter. System control, recycle control and pump throttle valves.

• Options from 6,000 GPD to 19,000 GPD.
• Liquid filled pressure gauges for pre-filter in and out, concentrate pressure and system pressure.
• Stainless steel multistage high pressure RO pump with SS pump throttling valve.
• 5 micron 20 in x 4.5 in cartridge filter and housing sediment pre-filter.
• Product, concentrate and recycle flowmeters.
• ARCS treats the condensate runoff for general reuse without producing any waste.
• ARCS treats 10 GPM [14,400 GPD] up to 20 GPM [28,800 GPD].

• Ideal injector for common liquid fertilizer programs.
• Dilution Range: 1:1000 - 1:100 (0.1% to 1%).
• Ratio Range mL: 3.75 to 37.5 mL.
• Ratio Range tsp: 0.75 to 7.5 tsp.
• Water Flow Range: 0.05 to 14 GPM.
• Operating Pressure Range: 4.3 to 85 PSI.
• Dimensions: 19 1/18″ x 6 5/16″.
• Weight: 6 lbs.
• Connection Size: 3/4″ NPT.
• Maximum Temperature: 104° F.
• Higher flow rates and greater chemical compatibility compared to existing technology.
• Easy installation; can be adapted to new or existing Lo-Flo Nutrient Delivery Systems.
• Extended dosing range achieved by swapping out the injection stem and plunger assembly.

• Ideal injector for common liquid fertilizer programs.
• Dilution Range: 1:1000 - 1:100 (0.1% to 1%).
• Water Flow Range: 2.2 to 40 GPM.
• Operating Pressure Range: 4.3 to 116 PSI.
• Dimensions: 125 1/4″ x 8 1/2″.
• Weight: 6 lbs.
• Connection Size: 1.5″ NPT.
• Maximum Temperature: 104°F.
• Higher flow rates and greater chemical compatibility compared to existing technology.
• Easy installation; can be adapted to new or existing Hi-Flo Nutrient Delivery Systems.
• Extended dosing range achieved by swapping out the injection stem and plunger assembly.

Light blocking mixing chamber sunshade for Dosatron® 3/4" mixing chambers. Prevents the light from impacting nutrient rich water, eliminating the potential for biofilm and algae growth in the chamber. Removable cover for the clear bowl portion of the mixing chamber.

Extend the life of your Dosatron® D14MZ2 - 14 GPM and D14MZ2-HY with Dosatron's Rebuild Kit.

Two-Part Kit Includes:

• Part 1: piston kit contents
• Part 2: seal kit contents, complete, detailed instructions

Injection seal kit for the Dosatron® D14MZ2 - 14 GPM. Recommended for a yearly maintenance.

Kit Includes:

• Injection sleeve o-ring.
• Check valve assembly.
• Injection stem o-ring.
• Plunger seal.

Mini maintenance kit for the Dosatron® D14MZ2 - 14 GPM. Recommended for a regular maintenance.

Kit Includes:

• Plunger seal.
• Top guide.
• Check valve cone.
• Check valve spring.
• Check valve cone o-ring.
• Dosa-Lube (Silicone).

Injection seal kit with AFLAS seals for the Dosatron® D14MZ3000 - 14 GPM.

Kit Includes:

• Injection sleeve o-ring.
• Check valve assembly.
• Injection stem o-ring.
• Plunger with seal.

Injection seal kit with Viton seals for the D14MZ3000 - 14 GPM .

Kit Includes:

• Injection sleeve o-ring.
• Check valve assembly.
• Injection stem o-ring.
• Plunger with seal.

Mini maintenance kit for the Dosatron® D14MZ3000 and D14TMZ3000 - 14 GPM.

Kit Includes:

• Plunger seal.
• Upper check valve assembly.
• Dosa-Lube (Silicone).

Mini maintenance kit for the Dosatron® D14MZ3000 and D14TMZ3000 - 14 GPM.

Kit Includes:

• Plunger seal.
• Upper check valve assembly.
• Dosa-Lube (Silicone).

• Tank Size: 5 gallons (19 liters).
• Cart Construction: Polyethylene.
• Cart Dimensions (L x W x H): 22 x 19 x 44.5 in (55.9 x 48.3 x 113 cm).
• Tire Size: 10 in (25.4 cm) no-flat tires.
• Includes 5-gallon (19 liter) bucket with lid.
• Dosatron doser not included.

Dosatron® Li'l Bud-D Cart Hook-Up Kit for the 11 and 14 GPM Dosatron Injectors.

Includes:

• Filter.
• Check valve.
• Stainless steel clamps.
• 5/8 inch hose.
• Adaptors.

Dosatron injectors, and hook-up kit sold separately.
