Fluence

Fluence Wireless Flex Dimming delivers simplicity, flexibility, and cost savings to your grow operation by replacing dimming cables to each light fixture with wireless control. Wireless Flex Dimming realizes tremendous labor costs savings from reduced installation time, eliminating potential wiring errors. Simply plug a Wireless Flex Dimming Receiver into the dimming port of each Fluence light fixture, install a Wireless Flex Dimming 0-10 V adapter, and connect the 0-10 V dimming control per zone.

Wireless Flex Dimming features qualified Bluetooth mesh technology enabled by SILVAIR that is fully compatible with any 0-10 V dimmer or environmental controllers. Wireless Flex Dimming is easy to configure and enables HPS to LED retrofit growers to add precise dimming control without installing new wiring, maximizing ROI.

• Enables the replacement of HPS lights with significant energy savings.
• Ideal for distributing light uniformly in grow environments with constrained ceiling heights.
• Also suitable for low DLI crops, and for extension of the natural photoperiod.
• Light output PPF: 876 µmol/s.
• AC power: 336 @ 277 V AC (W).
• Efficacy: 2.6 µmol/J @ 277 V AC.
• Certifications: ETL, cETL, CE, Wet Location.
• Spectrum: PhysioSpec™ BROAD R4 Indoor.
• Size (L x W x H): 24.09 x 2.91 x 3.23 inches (612 x 74 x 82 millimeters).

• Enables the replacement of HPS lights with significant energy savings.
• Ideal for distributing light uniformly in grow environments with constrained ceiling heights.
• Also suitable for low DLI crops, and for extension of the natural photoperiod.
• Light output PPF: 888 µmol/s.
• AC power: 335 @ 277 V AC (W).
• Efficacy: 2.7 µmol/J @ 277 V AC.
• Certifications: ETL, cETL, CE, Wet Location.

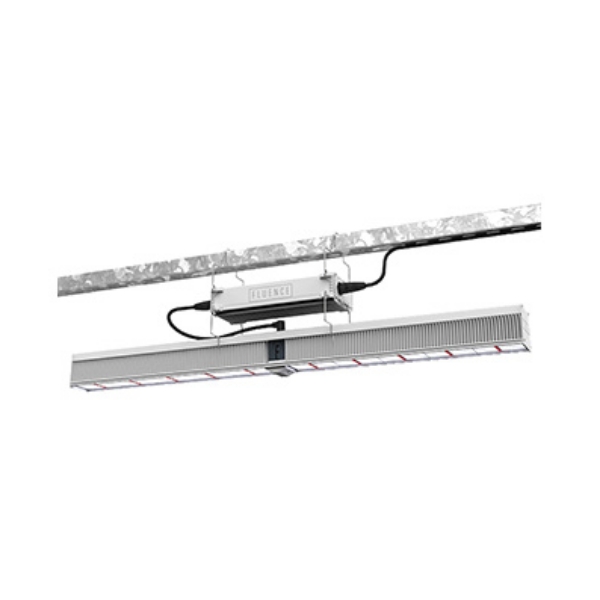

• Spectrum: PhysioSpec™ BROAD R3 Greenhouse.
• Size (L x W x H): 24.09 x 2.91 x 3.23 inches (612 x 74 x 82 millimeters).

The Fluence VYPR 3x features market-leading efficacies up to 3.7 µmol/J, enabling the replacement of HPS lights with significant energy savings. At a half of VYPR 3p’s size and power, VYPR 3x is ideal for distributing light uniformly in grow environments with constrained ceiling heights. VYPR 3x is also suitable for low DLI crops, and for extension of the natural photoperiod.

Combined with Fluence’s beam widening reflectors, VYPR 3x further improves light uniformity and reduces the number of fixtures required in a given cultivation area, lowering the capital investment and accelerating the LED adoption in horticulture lighting.

• Optimized for full-cycle leafy green, basil, strawberry and culinary herb production.
• Early-stage vegetative growth for vegetables, ornamentals, and other cultivars.
• Features a sleek form-factor, broad-spectrum light, and world-class energy efficiency.
• An average PPFD up to 375 µmol/m2/s over a 2' x 4' (61 x 122 cm) area with a 5” (12.7 cm) mounting height above canopy.
• Includes 5 lighting modules and covers 40 square feet (3.7 square meters) of canopy.
• Allows mounting as close as five inches (12.7 centimeters) from the plant canopy.
• Enables quick and easy deployment with a one-to-many design connecting up to ten modules to one power supply.
• Designed for a wide range of vertical farming applications.
• Voltage: 120 to 277 V.

• Supports full-cycle cultivation of leafy greens and microgreens.
• Features a sleek form-factor, broad-spectrum light, and world-class energy efficiency.
• An average PPFD up to 260 µmol/m2/s over a 2' x 4' (61 x 122 cm) area with an 8" (20 cm) mounting height above canopy.
• Includes seven lighting modules and covers 56 square feet (5.2 square meters) of canopy.
• Allows mounting as close as five inches (12.7 centimeters) from the plant canopy.
• Enables quick and easy deployment with a one-to-many design connecting up to ten modules to one power supply.
• Designed for a wide range of vertical farming applications.
• Voltage: 120 to 277 V.

• PhysioSpec indoor spectrum caters to various growth stages.
• Ideal for propagation to full-cycle microgreen and leafy green cultivation.
• Offers energy-efficient and space-saving benefits.
• Accelerates time-to-harvest.
• Voltage: 120 to 277 V.

• Maximizes the grow space for higher crop yields and better quality.
• Designed for single or multi-tier growers.
• A bright and flexible rack lighting solution.
• Light output PPF: 2,180 µmol/s.
• Efficacy: 2.75 µmol/J @ 277V AC.
• AC input power: 790 W @ 277 V AC.
• Certifications: IEC60598-1, UL 8800, UL 1598 Wet Location, DLC.
• Spectrum: PhysioSpec™ Broad R4.
• Length: 47 inches (1,194 millimeters).

• Designed for full-cycle, close-proximity cultivation in controlled environments.
• Tailored to multi-tiered vertical applications where even one wasted inch is one too many.
• Spectrum: PhysioSpec Indoor™.
• Size: 47 inches (119 centimeters).
• Voltage: 120 to 277 V.

• Designed for full-cycle, close-proximity cultivation in controlled environments.
• Tailored to multi-tiered vertical applications where even one wasted inch is one too many.
• Spectrum: PhysioSpec™ Indoor.
• Size: 47 inches (119 centimeters).
• Voltage: 347 to 480 V.

• Designed for full-cycle, close-proximity cultivation in controlled environments.
• Tailored to multi-tiered vertical applications where even one wasted inch is one too many.
• Spectrum: PhysioSpec™ Indoor.
• Size: 47 inches (119 centimeters).
• Lightbar only.

• Early-development, top-lighting solution for commercial cultivation.
• Full-cycle top-lighting solution for home hobbyists.
• Designed for use without CO₂ supplementation at ambient conditions (~400 ppm).
• Light output PPF: 705 µmol/s.
• Efficacy: 2.40 µmol/J @ 277 AC.
• AC input power: 294 W @ 277 V AC.
• Certifications: UL 8800, UL 1598 Wet Location, DLC.
• Spectrum: PhysioSpec Indoor™.
• Length: 47 inches (1,194 millimeters).
• Width: 42.8 inches (1,087 millimeters).

• A full-cycle top lighting LED solution for high bay growing environments.
• Ideal for greenhouse supplemental lighting or indoor sole-source lighting.
• Builds on previous generation’s performance with nearly a 45% increase in PPF levels and a 18% increase in efficacy.
• Spectrum: PhysioSpec Indoor™.
• Light Output PPF: 1,700 µmol/s.
• Efficacy: 2.7 µmol/J.
• AC Input Power: 631 W @ 277 V AC.
• AC Input Voltage: 120 - 277V AC, 347 - 480V AC, 50/60 Hz.
• Light Distribution 120°.
• Mounting Height ≥ 18 inches (45.7 centimeters) above canopy.
• Certifications: UL 8800, UL 1598 Wet-Location, DLC.
• Actual dimensions (L x W x H): 46.1 x 2.9 x 3.3 inches (117.2 x 7.4 x 8.3 centimeters).

• A full-cycle top lighting LED solution for high bay growing environments.
• Ideal for greenhouse supplemental lighting or indoor sole-source lighting.
• Builds on previous generation’s performance with nearly a 45% increase in PPF levels and a 18% increase in efficacy.
• Spectrum: PhysioSpec Indoor™.
• Light Output PPF: 1,700 µmol/s.
• Efficacy: 2.7 µmol/J.
• AC Input Power: 631 W @ 277 V AC.
• AC Input Voltage: 120 - 277V AC, 347 - 480V AC, 50/60 Hz.
• Light Distribution 120°.
• Mounting Height ≥ 18 inches (45.7 centimeters) above canopy.
• Certifications: UL 8800, UL 1598 Wet-Location, DLC.
• Actual dimensions (L x W x H): 46.1 x 2.9 x 3.3 inches (117.2 x 7.4 x 8.3 centimeters).

• A full-cycle top lighting LED solution for high bay growing environments.
• Ideal for greenhouse supplemental lighting or indoor sole-source lighting.
• Builds on previous generation’s performance with nearly a 45% increase in PPF levels and a 18% increase in efficacy.
• Spectrum: PhysioSpec Indoor™.
• Length: 46.1 inches (117.2 centimeters).
• Lightbar only.

• A full-cycle top lighting LED solution for high bay growing environments.
• Ideal for greenhouse supplemental lighting or indoor sole-source lighting.
• Builds on previous generation’s performance with nearly a 45% increase in PPF levels and a 18% increase in efficacy.
• Spectrum: PhysioSpec Greenhouse™.
• Light Output PPF: 1,700 µmol/s.
• Efficacy: 2.7 µmol/J.
• AC Input Power: 631 W @ 277 V AC.
• AC Input Voltage: 120 - 277V AC, 347 - 480V AC, 50/60 Hz.
• Light Distribution 120°.
• Mounting Height ≥ 18 inches (45.7 centimeters) above canopy.
• Certifications: UL 8800, UL 1598 Wet-Location, DLC.
• Actual dimensions (L x W x H): 46.1 x 2.9 x 3.3 inches (117.2 x 7.4 x 8.3 centimeters).

• A full-cycle top lighting LED solution for high bay growing environments.
• Ideal for greenhouse supplemental lighting or indoor sole-source lighting.
• Builds on previous generation’s performance with nearly a 45% increase in PPF levels and a 18% increase in efficacy.
• Spectrum: PhysioSpec Greenhouse™.
• Light Output PPF: 1,700 µmol/s.
• Efficacy: 2.7 µmol/J.
• AC Input Power: 631 W @ 277 V AC.
• AC Input Voltage: 120 - 277V AC, 347 - 480V AC, 50/60 Hz.
• Light Distribution 120°.
• Mounting Height ≥ 18 inches (45.7 centimeters) above canopy.
• Certifications: UL 8800, UL 1598 Wet-Location, DLC.
• Actual dimensions (L x W x H): 46.1 x 2.9 x 3.3 inches (117.2 x 7.4 x 8.3 centimeters).

• A full-cycle top lighting LED solution for high bay growing environments.
• Ideal for greenhouse supplemental lighting or indoor sole-source lighting.
• Builds on previous generation’s performance with nearly a 45% increase in PPF levels and a 18% increase in efficacy.
• Spectrum: PhysioSpec Indoor™.
• Light Output PPF: 1,700 µmol/s.
• Efficacy: 2.7 µmol/J.
• AC Input Power: 631 W @ 277 V AC.
• AC Input Voltage: 120 - 277V AC, 347 - 480V AC, 50/60 Hz.
• Light Distribution 120°.
• Mounting Height ≥ 18 inches (45.7 centimeters) above canopy.
• Certifications: UL 8800, UL 1598 Wet-Location, DLC.
• Actual dimensions (L x W x H): 46.1 x 2.9 x 3.3 inches (117.2 x 7.4 x 8.3 centimeters).

The Fluence Dimmer is a reliable, user-friendly dimmer that controls the light intensity from 0-100%. This device allows growers to control the light intensity of their Fluence light fixtures via an easy-to-use up/down arrow function, and clearly shows the user their light output intensity percentage via a digital display.

This dimmer is meant to control the overall light intensity and maintain a set point of your Fluence LED light fixtures. It is not a relay or digital schedule timer to control photoperiod.

• Optimized for young plant propagation of vegetable and ornamental crops.
• Ideal for tissue culture, seedlings, and cutting/cloning propagation.
• Features a sleek form-factor, broad-spectrum light, and world-class energy efficiency.
• An average PPFD up to 160 µmol/m2/s over a 2' x 4' (61 x 122 cm) area with a 12" (30 cm) mounting height above canopy.
• Includes 10 lighting modules and covers 80 square feet (7.43 square meters) of canopy.
• Allows mounting as close as five inches (12.7 centimeters) from the plant canopy.
• Enables quick and easy deployment with a one-to-many design connecting up to ten modules to one power supply.
• Designed for a wide range of vertical farming applications.
• Voltage: 120 to 277 V.

• Optimized for young plant propagation of vegetable and ornamental crops.
• Ideal for tissue culture, seedlings, and cutting/cloning propagation.
• Features a sleek form-factor, broad-spectrum light, and world-class energy efficiency.
• An average PPFD up to 160 µmol/m2/s over a 2' x 4' (61 x 122 cm) area with a 12" (30 cm) mounting height above canopy.
• Includes 10 lighting modules and covers 80 square feet (7.43 square meters) of canopy.
• Allows mounting as close as five inches (12.7 centimeters) from the plant canopy.
• Enables quick and easy deployment with a one-to-many design connecting up to ten modules to one power supply.
• Designed for a wide range of vertical farming applications.
• Voltage: 347 to 480 V.

• Optimized for full-cycle leafy green, basil, strawberry and culinary herb production.
• Early-stage vegetative growth for vegetables, ornamentals, and other cultivars.
• Features a sleek form-factor, broad-spectrum light, and world-class energy efficiency.
• An average PPFD up to 375 µmol/m2/s over a 2' x 4' (61 x 122 cm) area with a 5” (12.7 cm) mounting height above canopy.
• Includes 5 lighting modules and covers 40 square feet (3.7 square meters) of canopy.
• Allows mounting as close as five inches (12.7 centimeters) from the plant canopy.
• Enables quick and easy deployment with a one-to-many design connecting up to ten modules to one power supply.
• Designed for a wide range of vertical farming applications.
• Voltage: 120 to 277 V.

• Optimized for full-cycle leafy green, basil, strawberry and culinary herb production.
• Early-stage vegetative growth for vegetables, ornamentals, and other cultivars.
• Features a sleek form-factor, broad-spectrum light, and world-class energy efficiency.
• An average PPFD up to 375 µmol/m2/s over a 2' x 4' (61 x 122 cm) area with a 5” (12.7 cm) mounting height above canopy.
• Includes 5 lighting modules and covers 40 square feet (3.7 square meters) of canopy.
• Allows mounting as close as five inches (12.7 centimeters) from the plant canopy.
• Enables quick and easy deployment with a one-to-many design connecting up to ten modules to one power supply.
• Designed for a wide range of vertical farming applications.
• Voltage: 347 to 480 V.

• Supports full-cycle cultivation of leafy greens and microgreens.
• Features a sleek form-factor, broad-spectrum light, and world-class energy efficiency.
• An average PPFD up to 260 µmol/m2/s over a 2' x 4' (61 x 122 cm) area with an 8" (20 cm) mounting height above canopy.
• Includes seven lighting modules and covers 56 square feet (5.2 square meters) of canopy.
• Allows mounting as close as five inches (12.7 centimeters) from the plant canopy.
• Enables quick and easy deployment with a one-to-many design connecting up to ten modules to one power supply.
• Designed for a wide range of vertical farming applications.
• Voltage: 347 to 480 V.

Adapts T-cable Drop or Trunk Termination to Push Lock M16 Dimming Port.

• Cable Length: 6 inch (152 millimeter).
• Input Connector: Screw Lock Male M12 3-pin.
• Output Connector: Push Lock Female m16 3-pin.
• Cable Type: AWM UL 21996/UL 22190 300 V 2 x 20 AWG/ 0.5 mm², Plus Drain.

• Available in 6 spectral options in a 22” (559 mm) slim form factor for tight grow environments.
• Well-suited for research, vertical farms, side-canopy, and intra-canopy use.
• PhysioSpec™ Spectrum: Indoor.
• Photon Flux (360-780nm): 93 µmol/s.
• Efficacy (360-780nm) @ 277 V AC: 2.33 µmol /J.
• Certifications: cETL & UL 1598 Damp Location.
• Voltage: 120 to 277 V.

• Available in 6 spectral options in a 22” (559 mm) slim form factor for tight grow environments.
• Well-suited for research, vertical farms, side-canopy, and intra-canopy use.
• PhysioSpec™ Spectrum: Greenhouse.
• Photon Flux (360-780nm): 93 µmol/s.
• Efficacy (360-780nm) @ 277 V AC: 2.33 µmol /J.
• Certifications: cETL & UL 1598 Damp Location.
• Voltage: 120 to 277 V.

• Available in 6 spectral options in a 44” (1,118 mm) slim form factor for tight grow environments.
• Perfect for side canopy lighting over a 4-foot area.
• Physiospec™ Spectrum: Greenhouse.
• Photon Flux (360-780nm): 185 µmol/s.
• Efficacy (360-780nm) @ 277 V AC: 2.34 µmol /J.
• Certifications: cETL & UL 1598 Damp Location.
• Voltage: 120 to 277 V.
