Fluence

• Optimized for full-cycle leafy green, basil, strawberry and culinary herb production.
• Early-stage vegetative growth for vegetables, ornamentals, and other cultivars.
• Features a sleek form-factor, broad-spectrum light, and world-class energy efficiency.
• An average PPFD up to 375 µmol/m2/s over a 2' x 4' (61 x 122 cm) area with a 5” (12.7 cm) mounting height above canopy.
• Includes 5 lighting modules and covers 40 square feet (3.7 square meters) of canopy.
• Allows mounting as close as five inches (12.7 centimeters) from the plant canopy.
• Enables quick and easy deployment with a one-to-many design connecting up to ten modules to one power supply.
• Designed for a wide range of vertical farming applications.
• Voltage: 120 to 277 V.

• Optimized for full-cycle leafy green, basil, strawberry and culinary herb production.
• Early-stage vegetative growth for vegetables, ornamentals, and other cultivars.
• Features a sleek form-factor, broad-spectrum light, and world-class energy efficiency.
• An average PPFD up to 375 µmol/m2/s over a 2' x 4' (61 x 122 cm) area with a 5” (12.7 cm) mounting height above canopy.
• Includes 5 lighting modules and covers 40 square feet (3.7 square meters) of canopy.
• Allows mounting as close as five inches (12.7 centimeters) from the plant canopy.
• Enables quick and easy deployment with a one-to-many design connecting up to ten modules to one power supply.
• Designed for a wide range of vertical farming applications.
• Voltage: 347 to 480 V.

• Supports full-cycle cultivation of leafy greens and microgreens.
• Features a sleek form-factor, broad-spectrum light, and world-class energy efficiency.
• An average PPFD up to 260 µmol/m2/s over a 2' x 4' (61 x 122 cm) area with an 8" (20 cm) mounting height above canopy.
• Includes seven lighting modules and covers 56 square feet (5.2 square meters) of canopy.
• Allows mounting as close as five inches (12.7 centimeters) from the plant canopy.
• Enables quick and easy deployment with a one-to-many design connecting up to ten modules to one power supply.
• Designed for a wide range of vertical farming applications.
• Voltage: 120 to 277 V.

• Supports full-cycle cultivation of leafy greens and microgreens.
• Features a sleek form-factor, broad-spectrum light, and world-class energy efficiency.
• An average PPFD up to 260 µmol/m2/s over a 2' x 4' (61 x 122 cm) area with an 8" (20 cm) mounting height above canopy.
• Includes seven lighting modules and covers 56 square feet (5.2 square meters) of canopy.
• Allows mounting as close as five inches (12.7 centimeters) from the plant canopy.
• Enables quick and easy deployment with a one-to-many design connecting up to ten modules to one power supply.
• Designed for a wide range of vertical farming applications.
• Voltage: 347 to 480 V.

• Available in 6 spectral options in a 22” (559 mm) slim form factor for tight grow environments.
• Well-suited for research, vertical farms, side-canopy, and intra-canopy use.
• PhysioSpec™ Spectrum: Indoor.
• Photon Flux (360-780nm): 93 µmol/s.
• Efficacy (360-780nm) @ 277 V AC: 2.33 µmol /J.
• Certifications: cETL & UL 1598 Damp Location.
• Voltage: 120 to 277 V.

• Available in 6 spectral options in a 22” (559 mm) slim form factor for tight grow environments.
• Well-suited for research, vertical farms, side-canopy, and intra-canopy use.
• PhysioSpec™ Spectrum: Greenhouse.
• Photon Flux (360-780nm): 93 µmol/s.
• Efficacy (360-780nm) @ 277 V AC: 2.33 µmol /J.
• Certifications: cETL & UL 1598 Damp Location.
• Voltage: 120 to 277 V.

• Available in 6 spectral options in a 44” (1,118 mm) slim form factor for tight grow environments.
• Perfect for side canopy lighting over a 4-foot area.
• Physiospec™ Spectrum: Greenhouse.
• Photon Flux (360-780nm): 185 µmol/s.
• Efficacy (360-780nm) @ 277 V AC: 2.34 µmol /J.
• Certifications: cETL & UL 1598 Damp Location.
• Voltage: 120 to 277 V.

• Available in 6 spectral options in a 44” (1,118 mm) slim form factor for tight grow environments.
• Perfect for side canopy lighting over a 4-foot area.
• Physiospec™ Spectrum: Antho.
• Photon Flux (360-780nm): 158 µmol/s.
• Efficacy (360-780nm) @ 277 V AC: 1.82 µmol /J.
• Certifications: cETL & UL 1598 Damp Location.
• Voltage: 120 to 277 V.

• Available in 6 spectral options in a 44” (1,118 mm) slim form factor for tight grow environments.
• Perfect for side canopy lighting over a 4-foot area.
• Physiospec™ Spectrum: Pfr.
• Photon Flux (360-780nm): 162 µmol/s.
• Efficacy (360-780nm) @ 277 V AC: 2.49 µmol /J.
• Certifications: cETL & UL 1598 Damp Location.
• Voltage: 120 to 277 V.

• Available in 6 spectral options in a 66” (1,676 mm) slim form factor for tight grow environments.
• The longest RAY family member is ideal for a variety of applications.
• Physiospec™ Spectrum: Indoor.
• Certifications: cETL & UL 1598 Damp Location.
• Voltage: 120 to 277 V.

• Available in 6 spectral options in a 22” (559 mm) slim form factor for tight grow environments.
• Well-suited for research, vertical farms, side-canopy, and intra-canopy use.
• PhysioSpec™ Spectrum: Antho.
• Photon Flux (360-780nm): 79 µmol/s.
• Efficacy (360-780nm) @ 277 V AC: 1.84 µmol /J.
• Certifications: cETL & UL 1598 Damp Location.
• Voltage: 120 to 277 V.

• Available in 6 spectral options in a 22” (559 mm) slim form factor for tight grow environments.
• Well-suited for research, vertical farms, side-canopy, and intra-canopy use.
• Physiospec™ Spectrum: UV.
• Photon Flux (360-780nm): 33 µmol/s.
• Efficacy (360-780nm) @ 277 V AC: 0.85 µmol /J.
• Certifications: cETL & UL 1598 Damp Location.
• Voltage: 120 to 277 V.

• Available in 6 spectral options in a 22” (559 mm) slim form factor for tight grow environments.
• Well-suited for research, vertical farms, side-canopy, and intra-canopy use.
• Physiospec™ Spectrum: Pr.
• Photon Flux (360-780nm): 91 µmol/s.
• Efficacy (360-780nm) @ 277 V AC: 2.46 µmol /J.
• Certifications: cETL & UL 1598 Damp Location.
• Voltage: 120 to 277 V.

• Available in 6 spectral options in a 22” (559 mm) slim form factor for tight grow environments.
• Well-suited for research, vertical farms, side-canopy, and intra-canopy use.
• Physiospec™ Spectrum: Pfr.
• Photon Flux (360-780nm): 81 µmol/s.
• Efficacy (360-780nm) @ 277 V AC: 2.53 µmol /J.
• Certifications: cETL & UL 1598 Damp Location.
• Voltage: 120 to 277 V.

• Available in 6 spectral options in a 44” (1,118 mm) slim form factor for tight grow environments.
• Perfect for side canopy lighting over a 4-foot area.
• Physiospec™ Spectrum: UV.
• Photon Flux (360-780nm): 66 µmol/s.
• Efficacy (360-780nm) @ 277 V AC: 0.85 µmol /J.
• Certifications: cETL & UL 1598 Damp Location.
• Voltage: 120 to 277 V.

• Available in 6 spectral options in a 44” (1,118 mm) slim form factor for tight grow environments.
• Perfect for side canopy lighting over a 4-foot area.
• Physiospec™ Spectrum: Pr.
• Photon Flux (360-780nm): 182 µmol/s.
• Efficacy (360-780nm) @ 277 V AC: 2.46 µmol /J.
• Certifications: cETL & UL 1598 Damp Location.
• Voltage: 120 to 277 V.

• Early-development, top-lighting solution for commercial cultivation.
• Full-cycle top-lighting solution for home hobbyists.
• Designed for use without CO₂ supplementation at ambient conditions (~400 ppm).
• Light output PPF: 860 µmol/s.
• Efficacy: 2.51 µmol/J @ 277 AC.
• AC input power: 342 W @ 277 V AC.
• Certifications: UL 8800, UL 1598 Wet Location, DLC.
• Spectrum: PhysioSpec Indoor™.
• Length: 47 inches (1,194 millimeters).
• Width: 42.8 inches (1,087 millimeters).
• PSU Power Supply: 347-400 V.

• Early-development, top-lighting solution for commercial cultivation.
• Full-cycle top-lighting solution for home hobbyists.
• Designed for use without CO₂ supplementation at ambient conditions (~400 ppm).
• Light output PPF: 705 µmol/s.
• Efficacy: 2.40 µmol/J @ 277 AC.
• AC input power: 294 W @ 277 V AC.
• Certifications: UL 8800, UL 1598 Wet Location, DLC.
• Spectrum: PhysioSpec Indoor™.
• Length: 47 inches (1,194 millimeters).
• Width: 42.8 inches (1,087 millimeters).

• A full-cycle top lighting LED solution for high bay growing environments.
• Ideal for greenhouse supplemental lighting or indoor sole-source lighting.
• Builds on previous generation’s performance with nearly a 45% increase in PPF levels and a 18% increase in efficacy.
• Spectrum: PhysioSpec Greenhouse™.
• Light Output PPF: 1,700 µmol/s.
• Efficacy: 2.7 µmol/J.
• AC Input Power: 631 W @ 277 V AC.
• AC Input Voltage: 120 - 277V AC, 347 - 480V AC, 50/60 Hz.
• Light Distribution 120°.
• Mounting Height ≥ 18 inches (45.7 centimeters) above canopy.
• Certifications: UL 8800, UL 1598 Wet-Location, DLC.
• Actual dimensions (L x W x H): 46.1 x 2.9 x 3.3 inches (117.2 x 7.4 x 8.3 centimeters).

• A full-cycle top lighting LED solution for high bay growing environments.
• Ideal for greenhouse supplemental lighting or indoor sole-source lighting.
• Builds on previous generation’s performance with nearly a 45% increase in PPF levels and a 18% increase in efficacy.
• Spectrum: PhysioSpec Greenhouse™.
• Light Output PPF: 1,700 µmol/s.
• Efficacy: 2.7 µmol/J.
• AC Input Power: 631 W @ 277 V AC.
• AC Input Voltage: 120 - 277V AC, 347 - 480V AC, 50/60 Hz.
• Light Distribution 120°.
• Mounting Height ≥ 18 inches (45.7 centimeters) above canopy.
• Certifications: UL 8800, UL 1598 Wet-Location, DLC.
• Actual dimensions (L x W x H): 46.1 x 2.9 x 3.3 inches (117.2 x 7.4 x 8.3 centimeters).

• A full-cycle top lighting LED solution for high bay growing environments.
• Ideal for greenhouse supplemental lighting or indoor sole-source lighting.
• Builds on previous generation’s performance with nearly a 45% increase in PPF levels and a 18% increase in efficacy.
• Spectrum: PhysioSpec Indoor™.
• Light Output PPF: 1,700 µmol/s.
• Efficacy: 2.7 µmol/J.
• AC Input Power: 631 W @ 277 V AC.
• AC Input Voltage: 120 - 277V AC, 347 - 480V AC, 50/60 Hz.
• Light Distribution 120°.
• Mounting Height ≥ 18 inches (45.7 centimeters) above canopy.
• Certifications: UL 8800, UL 1598 Wet-Location, DLC.
• Actual dimensions (L x W x H): 46.1 x 2.9 x 3.3 inches (117.2 x 7.4 x 8.3 centimeters).

• A full-cycle top lighting LED solution for high bay growing environments.
• Ideal for greenhouse supplemental lighting or indoor sole-source lighting.
• Builds on previous generation’s performance with nearly a 45% increase in PPF levels and a 18% increase in efficacy.
• Spectrum: PhysioSpec Indoor™.
• Length: 46.1 inches (117.2 centimeters).
• Lightbar only.

• Designed for full-cycle, close-proximity cultivation in controlled environments.
• Tailored to multi-tiered vertical applications where even one wasted inch is one too many.
• Spectrum: PhysioSpec™ Indoor.
• Size: 47 inches (119 centimeters).
• Lightbar only.

• Early-development, top-lighting solution for commercial cultivation.
• Full-cycle top-lighting solution for home hobbyists.
• Designed for use without CO₂ supplementation at ambient conditions (~400 ppm).
• Light output PPF: 860 µmol/s.
• Efficacy: 2.51 µmol/J @ 277 AC.
• AC input power: 342 W @ 277 V AC.
• Certifications: UL 8800, UL 1598 Wet Location, DLC.
• Spectrum: PhysioSpec Indoor™.
• Length: 47 inches (1,194 millimeters).
• Width: 42.8 inches (1,087 millimeters).
• PSU Power Supply: 120-277 V.

• Early-development, top-lighting solution for commercial cultivation.
• Full-cycle top-lighting solution for home hobbyists.
• Designed for use without CO₂ supplementation at ambient conditions (~400 ppm).
• Spectrum: PhysioSpec Indoor™.
• Length: 32.5 inches (826 millimeters).
• Lightbar only.

• A full-cycle top lighting LED solution for high bay growing environments.
• Ideal for greenhouse supplemental lighting or indoor sole-source lighting.
• Builds on previous generation’s performance with nearly a 45% increase in PPF levels and a 18% increase in efficacy.
• Spectrum: PhysioSpec Indoor™.
• Light Output PPF: 1,700 µmol/s.
• Efficacy: 2.7 µmol/J.
• AC Input Power: 631 W @ 277 V AC.
• AC Input Voltage: 120 - 277V AC, 347 - 480V AC, 50/60 Hz.
• Light Distribution 120°.
• Mounting Height ≥ 18 inches (45.7 centimeters) above canopy.
• Certifications: UL 8800, UL 1598 Wet-Location, DLC.
• Actual dimensions (L x W x H): 46.1 x 2.9 x 3.3 inches (117.2 x 7.4 x 8.3 centimeters).

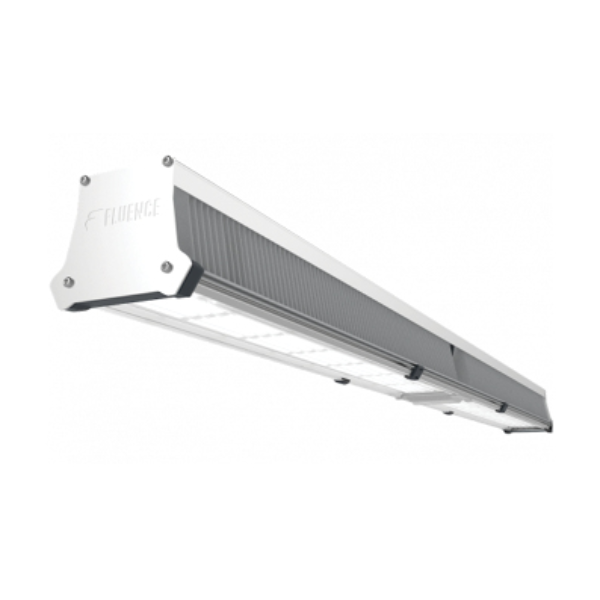

The Fluence VYPR 2x LED is the perfect greenhouse or indoor high-ceiling grow light for low DLI crops and operations looking to extend their photoperiod. Ideal for close-range deployments to maximize uniformity in low ceiling rooms, it emits PPF up to 900 µmol/s and has an energy-efficiency rating of 2.6 µmol/J.

From broad white to high red, Fluence PhysioSpec™ offers BROAD and DUAL spectrum options on VYPR Series. This flexibility prioritizes the grower’s needs in optimizing spectral content and light levels for any crop, at any growth stage, in any geographic location.

With six spectra available, VYPR Series top lights offer higher efficacies (up to 3.8 µmol/J) and higher photosynthetic photon flux (PPF) (up to 2,330 µmol/s) per fixture over comparable lighting technologies.

VYPR is a passively cooled device, relying solely on ambient conditions (and breakthrough engineering) for heat dissipation. VYPR is suitable for operation in still ambient temperatures from -40°C (-40°F) to 40°C (104°F); however, it is recommended at least one ft3/s of airflow to ensure efficient cooling. VYPR 2p has an operating temperature of 50°C (122°F) above ambient.

VYPR is designed as a greenhouse grow light or a sole-source indoor light, it should not be deployed outdoors or in direct sunlight.

The Fluence VYPR 2x LED is the perfect greenhouse or indoor high-ceiling grow light for low DLI crops and operations looking to extend their photoperiod. Ideal for close-range deployments to maximize uniformity in low ceiling rooms, it emits PPF up to 900 µmol/s and has an energy-efficiency rating of 2.6 µmol/J.

From broad white to high red, Fluence PhysioSpec™ offers BROAD and DUAL spectrum options on VYPR Series. This flexibility prioritizes the grower’s needs in optimizing spectral content and light levels for any crop, at any growth stage, in any geographic location.

With six spectra available, VYPR Series top lights offer higher efficacies (up to 3.8 µmol/J) and higher photosynthetic photon flux (PPF) (up to 2,330 µmol/s) per fixture over comparable lighting technologies.

VYPR is a passively cooled device, relying solely on ambient conditions (and breakthrough engineering) for heat dissipation. VYPR is suitable for operation in still ambient temperatures from -40°C (-40°F) to 40°C (104°F); however, it is recommended at least one ft3/s of airflow to ensure efficient cooling. VYPR 2p has an operating temperature of 50°C (122°F) above ambient.

VYPR is designed as a greenhouse grow light or a sole-source indoor light, it should not be deployed outdoors or in direct sunlight.

• Early-development, top-lighting solution for commercial cultivation.
• Full-cycle top-lighting solution for home hobbyists.
• Designed for use without CO₂ supplementation at ambient conditions (~400 ppm).
• Light output PPF: 705 ™mol/s.
• Efficacy: 2.40 ™mol/J @ 277 AC.
• AC input power: 294 W @ 277 V AC.
• Certifications: UL 8800, UL 1598 Wet Location, DLC.
• Spectrum: PhysioSpec Indoor™.
• Length: 47 inches (1,194 millimeters).
• Width: 42.8 inches (1,087 millimeters).

• Early-development, top-lighting solution for commercial cultivation.
• Full-cycle top-lighting solution for home hobbyists.
• Designed for use without CO₂ supplementation at ambient conditions (~400 ppm).
• Size: 40 inches (101 centimeters).
• Voltage: 120 to 277 volts.

• Early-development, top-lighting solution for commercial cultivation.
• Full-cycle top-lighting solution for home hobbyists.
• Designed for use without CO₂ supplementation at ambient conditions (~400 ppm).
• Size: 40 inches (101 centimeters).
• Voltage: 347 to 480 volts.

• Early-development, top-lighting solution for commercial cultivation.
• Full-cycle top-lighting solution for home hobbyists.
• Designed for use without CO₂ supplementation at ambient conditions (~400 ppm).
• Spectrum: PhysioSpec Indoor™.
• Length: 47 inches (1,194 millimeters).
• Lightbar only.

• A full-cycle top lighting LED solution for high bay growing environments.
• Ideal for greenhouse supplemental lighting or indoor sole-source lighting.
• Builds on previous generation’s performance with nearly a 45% increase in PPF levels and a 18% increase in efficacy.
• Spectrum: PhysioSpec Indoor™.
• Light Output PPF: 1,700 µmol/s.
• Efficacy: 2.7 µmol/J.
• AC Input Power: 631 W @ 277 V AC.
• AC Input Voltage: 120 - 277V AC, 347 - 480V AC, 50/60 Hz.
• Light Distribution 120°.
• Mounting Height ≥ 18 inches (45.7 centimeters) above canopy.
• Certifications: UL 8800, UL 1598 Wet-Location, DLC.
• Actual dimensions (L x W x H): 46.1 x 2.9 x 3.3 inches (117.2 x 7.4 x 8.3 centimeters).

The Fluence RAPTR Series is a high-output top light ideal for 1:1 HPS replacement in controlled environment agriculture. Designed to deliver maximum intensity with industry-leading efficacy, RAPTR is available with two optical distributions and a range of Physiospec™ spectrums tailored for high intensity indoor horticulture and high-efficiency greenhouse applications.

Fluence Wireless Flex Dimming delivers simplicity, flexibility, and cost savings to your grow operation by replacing dimming cables to each light fixture with wireless control. Wireless Flex Dimming realizes tremendous labor costs savings from reduced installation time, eliminating potential wiring errors. Simply plug a Wireless Flex Dimming Receiver into the dimming port of each Fluence light fixture, install a Wireless Flex Dimming 0-10 V adapter, and connect the 0-10 V dimming control per zone.

Wireless Flex Dimming features qualified Bluetooth mesh technology enabled by SILVAIR that is fully compatible with any 0-10 V dimmer or environmental controllers. Wireless Flex Dimming is easy to configure and enables HPS to LED retrofit growers to add precise dimming control without installing new wiring, maximizing ROI.

• Enables the replacement of HPS lights with significant energy savings.
• Ideal for distributing light uniformly in grow environments with constrained ceiling heights.
• Also suitable for low DLI crops, and for extension of the natural photoperiod.
• Light output PPF: 876 µmol/s.
• AC power: 336 @ 277 V AC (W).
• Efficacy: 2.6 µmol/J @ 277 V AC.
• Certifications: ETL, cETL, CE, Wet Location.
• Spectrum: PhysioSpec™ BROAD R4 Indoor.
• Size (L x W x H): 24.09 x 2.91 x 3.23 inches (612 x 74 x 82 millimeters).

• Enables the replacement of HPS lights with significant energy savings.
• Ideal for distributing light uniformly in grow environments with constrained ceiling heights.
• Also suitable for low DLI crops, and for extension of the natural photoperiod.
• Light output PPF: 888 µmol/s.
• AC power: 335 @ 277 V AC (W).
• Efficacy: 2.7 µmol/J @ 277 V AC.
• Certifications: ETL, cETL, CE, Wet Location.
• Spectrum: PhysioSpec™ BROAD R3 Greenhouse.
• Size (L x W x H): 24.09 x 2.91 x 3.23 inches (612 x 74 x 82 millimeters).

The Fluence VYPR 3x features market-leading efficacies up to 3.7 µmol/J, enabling the replacement of HPS lights with significant energy savings. At a half of VYPR 3p’s size and power, VYPR 3x is ideal for distributing light uniformly in grow environments with constrained ceiling heights. VYPR 3x is also suitable for low DLI crops, and for extension of the natural photoperiod.

Combined with Fluence’s beam widening reflectors, VYPR 3x further improves light uniformity and reduces the number of fixtures required in a given cultivation area, lowering the capital investment and accelerating the LED adoption in horticulture lighting.

• AC/Pushlock/Male/3-Pin/M19.
• DC/Pushlock/Female/2-Pin/M19.
• DIM/Pushlock/Male/3-Pin/M12.
• Power supply only.
