Water & Aeration

• Pressure compensating with CNL check valve feature.
• Standard with Super Flex UV white PE tubing.

• Automatically collects real-time EC and irrigation volume data from feed and runoff.
• Provides an up-to-the-minute, accurate view of irrigation execution without manual monitoring.
• Tracks volume of water applied, runoff volume, and EC data at both ends.
• Continuously measures both inflow and outflow, unlike manual methods.
• Enables real-time adjustments to irrigation strategy based on root zone conditions.
• Tracks feed EC, substrate EC, and drain EC for a holistic view of nutrient movement.
• Uses real-time runoff data to track field capacity, avoiding imprecise VWC estimates.

SPECIAL ORDER

• 2-Litre-Per-Hour Dripper
• 24 inch (68.6 centimeter) Tube
• CNL Assembly C/W

KDF/Catalytic Carbon Filters reduce iron, sulfur, chlorine, chloramines and heavy metals. Great for city or well water! Bacteriostatic qualities do not allow microbes to breed in filter. Doubles standard green carbon filter. #741622 is 10 in x 2.5 in. #741624 is 20 in x 2.5 in. #741626 is 20 in x 4.5 in.

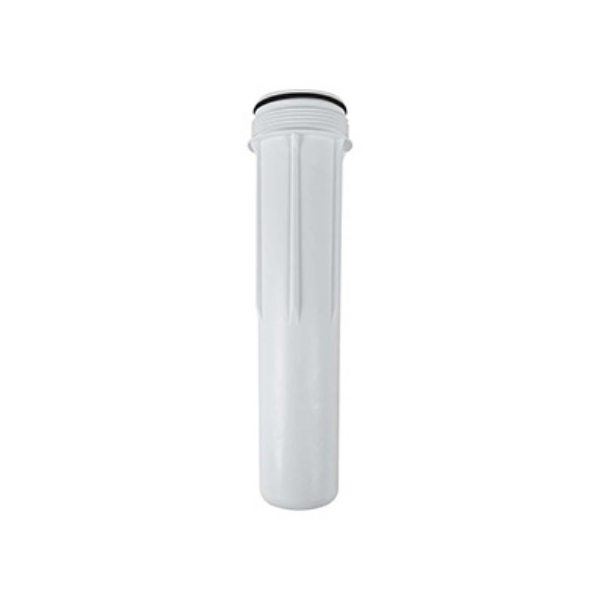

The Evolution RO1000™ KDF/Catalytic Carbon pre-filter is the standard carbon pre-filter included with system. For chlorine and chloramines reduction for city water. Also for well water for iron hydrogen sulfide and heavy metals reduction. The Evolution RO1000™ Membrane Element is the standard membrane included with system. 2 needed for system.

• The best pump for mixing nutrients.
• Dilution Range: 1:3000 to 1:333 (0.03% to 0.3%).
• Ratio Range mL: 1.25 to 11 mL.
• Ratio Range tsp: 0.25 to 2.25 tsp.
• Water Flow Range: 0.05 to 14 GPM.
• Operating Pressure Range: 4.3 to 85 PSI.
• Dimensions: 21″ x 6 5/16″.
• Weight: 6 lbs.
• Connection Size: 3/4″ NPT.
• Maximum Temperature: 104° F.
• Includes a union for easy installation into the Nutrient Delivery System.

• Ideal injector for common liquid fertilizer programs.
• Dilution Range: 1:1000 - 1:100 (0.1% to 1%).
• Ratio Range mL: 3.75 to 37.5 mL.
• Ratio Range tsp: 0.75 to 7.5 tsp.
• Water Flow Range: 0.05 to 14 GPM.
• Operating Pressure Range: 4.3 to 85 PSI.
• Dimensions: 19 1/18″ x 6 5/16″.
• Weight: 6 lbs.
• Connection Size: 3/4″ NPT.
• Maximum Temperature: 104° F.
• Higher flow rates and greater chemical compatibility compared to existing technology.
• Easy installation; can be adapted to new or existing Lo-Flo Nutrient Delivery Systems.
• Extended dosing range achieved by swapping out the injection stem and plunger assembly.

Dosatron®'s Water-Powered Nutrient Delivery System Lo-Flo Monitor Kit measures and displays the well-blended outgoing solution providing peace of mind.

Features: Union, close nipples, nipples, tee, pressure gauge, pressure gauge tee, cross, check valve, fittings, ball valves, hose adapter, monitor, probe holder assembly, and seal thread tape.

• Dilution Range: 1:100 to 1:10 (1% to 10%).
• Injection Range mL: 37.5 to 375 mL/gal.
• Injection Range tsp: 7.5 to 75 tsp/gal.
• Water Flow Range: 0.05 to 14 GPM.
• Operating Pressure Range: 7 to 85 PSI.
• Available Housing Materials: Polypropylene.
• Dimensions: 19 1/18 x 6 5/16 in (48.40 cm x 16.03 cm).
• Weight: 6 lbs (2.72 kg).
• Connection Size: 3/4 in NPT.
• Maximum Temperature: 104°F (40°C).

Injection seal kit for the Dosatron® D14MZ1000 - 14 GPM.

Kit Contains:

• (1) PJDI234 Check valve assembly.
• (1) JDI100 Injection sleeve O-ring.
• (1) JDI208 Plunger seal.
• (1) JDI120 Injection stem O-ring.

• The best fertilizer injector for drip irrigation.
• Dilution Range: 1:500 to 1:50 (0.2% to 2%).
• Ratio Range mL: 7.5 to 75 mL/gal.
• Ratio Range tsp: 1.5 to 15 tsp.
• Water Flow Range: 0.05 to 14 GPM.
• Operating Pressure Range: 4.3 to 85 PSI.
• Dimensions: 19 1/18″ x 6 5/16″.
• Weight: 6 lbs.
• Connection Size: 3/4″ NPT.
• Maximum Temperature: 104°F (40°C).
• Includes a union for easy installation into the Nutrient Delivery System.

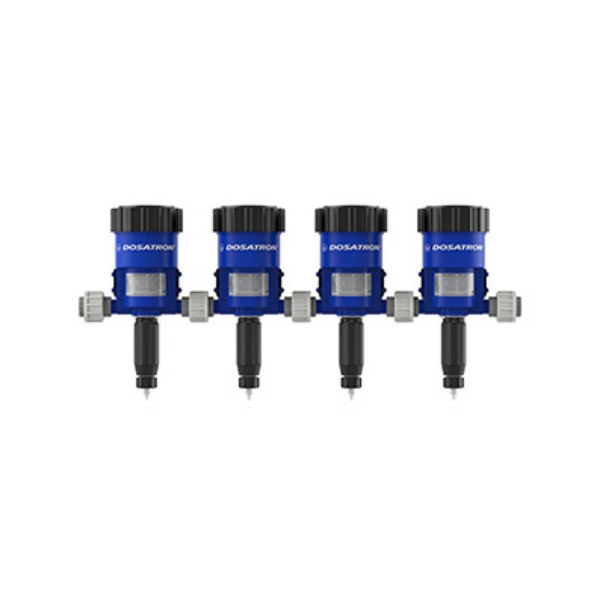

The Dosatron® Hobby Cultivator Expansion Unit allows you to adapt your multi-pump system by adding more pumps based on the needs of your application.

• Ideal injector for common liquid fertilizer programs.
• Dilution Range: 1:1000 - 1:100 (0.1% to 1%).
• Water Flow Range: 2.2 to 40 GPM.
• Operating Pressure Range: 4.3 to 116 PSI.
• Dimensions: 125 1/4″ x 8 1/2″.
• Weight: 6 lbs.
• Connection Size: 1.5″ NPT.
• Maximum Temperature: 104°F.
• Higher flow rates and greater chemical compatibility compared to existing technology.
• Easy installation; can be adapted to new or existing Hi-Flo Nutrient Delivery Systems.
• Extended dosing range achieved by swapping out the injection stem and plunger assembly.

• Includes all necessary parts for the inlet of your Nutrient Delivery System.
• Best suited for systems with consistent inlet pressure or a constant pressure pump.
• Ideal for use with a booster pump or a pump with VFD control.
• A pressure regulator is recommended for inlet pressures above 85 PSI.

Features: Union, check valve, elbows, nipples, tee, hose adapter, ball valves, coupler, filter, pressure gauge, seal thread tape.

To Complete the Lo-Flo Nutrient Delivery System, you will also need Dosatron Injectors, Mixing Chamber Kit(s), pH/ EC Monitor Kit or END Kit, and a Water Hammer Arrestor Kit.
