Lighting

• Removable light bars for improved installation and maintenance.
• Fully sealed light bars for easier cleaning and greater resistance to the harshest environments.
• PPF Output [µmol/s]: 2,200
• Efficacy [µmol/J]: 2.76
• Wattage: 800W
• Voltage: 120-277V
• Dimensions [LxWxH]: 47 x 43 x 2.36 in [119.38 x 109.22 x 5.99 cm]
• Weight: 11.9 kg [26.3 lb]
• Spectrum: R4a

• Removable light bars for improved installation and maintenance.
• Fully sealed light bars for easier cleaning and greater resistance to the harshest environments.
• PPF Output [µmol/s]: 2,260
• Efficacy [µmol/J]: 2.76
• Wattage: 800W
• Voltage: 208-480V
• Dimensions [LxWxH]: 47 x 43 x 2.36 in [119.38 x 109.22 x 5.99 cm]
• Weight: 11.9 kg [26.3 lb]
• Spectrum: R4a

• Mounting hardware for Fluence SPYDR fixtures.
• Two (2) pieces per kit.

Increase A-grade buds, reduce trim waste, and boost overall crop value with Fluence PYTHN—the purpose-built under-canopy lighting solution.

• Wide 145° distribution provides optimal light uniformity for under-canopy applications.
• Modular installation reduces costs with snap-in connections and flexible configurations.
• Targeted light quality specifically engineered for lower canopy development.
• Efficacy: Up to 3.4 µmol/J.
• IP Rating: IP66-rated, chemical-resistant enclosure.
• Dimming: 0-10V with RJ11 interface.
• Dimensions (LxWxH): 44.88 x 3.23 x 4.13 inches (114 x 8.2 x 10.5 centimeters).
• Spectrum: Broad R8
• Voltage: 347-400V

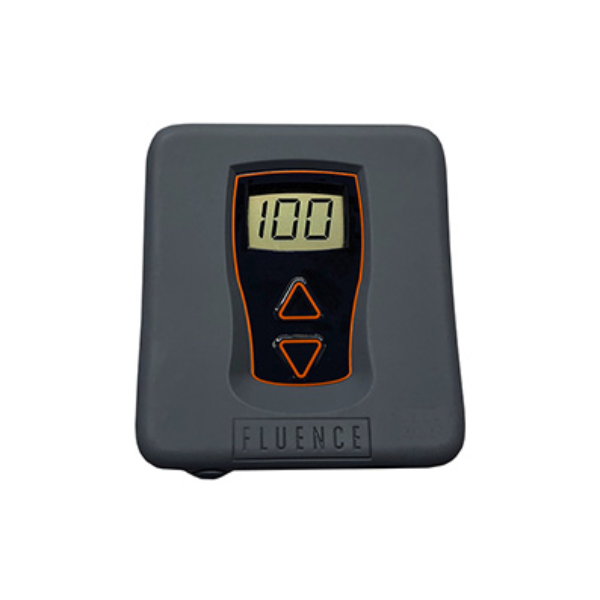

The Fluence Dimmer is a reliable, user-friendly dimmer that controls the light intensity from 0-100%. This device allows growers to control the light intensity of their Fluence light fixtures via an easy-to-use up/down arrow function, and clearly shows the user their light output intensity percentage via a digital display.

This dimmer is meant to control the overall light intensity and maintain a set point of your Fluence LED light fixtures. It is not a relay or digital schedule timer to control photoperiod.

• 2 LED Clone Bars per package.
• Perfect replacement for T5 fluorescent light fixture.
• 60% more efficient, running off 18 watts.
• Tested in nursery applications.
• Color temperature: 9,000° K.
• Delivers 35 µmol/s at an efficient 2.0 µmol/j.120° wide light distribution.
• 18W per strip (0.15 amps on 120V).
• Daisy chain up to 100 strips on a 20 amp circuit.
• Two strips in array per shelf.
• Easy installation with hanging clip and zip tie slot.
• IP66 wet rated; fully waterproof with water-resistant housing and connectors.
• Rated for 54,000 hours.
• Standard 5-year warranty.
• Mounting hardware and 120 V power cord included.

• Designed as a direct replacement for HID fixtures, with plug-and-play installation for instant LED conversions.
• Wide, even light distribution indiscernible from HPS light throw, with better uniformity.
• Compact design fits most HPS layouts, reducing the pain when replacing hundreds at a time.
• Broad white light with enhanced blue spectrum which may intensify terpene and cannabinoid profiles.
• Dimmable down to 35% with the Gavita EL3 Master controller (sold separately).
• Delivers 2000 µmol s-1 PAR and an efficient 3.0 µmol/j.
• Premium diodes and drivers.
• Broad Range driver to accommodate a larger voltage range of 208 - 480 V.
• IP65 wet rating and ANSI/CAN/UL 8800 compliant.
• Assembled in the USA using foreign components.
• Weight: 34.5 pounds (15.65 kilograms).

Gavita® Controller Cables attach to Gavita Master controller to the Gavita E-Series ballast. These come in 5, 16 and 25 ft configurations to best fit your specific application.

• Includes the HR96 Reflector for maximum efficiency and uniformity.
• Designed with broad light dispersion in mind.
• Highly efficient passive ballast cooling for longer fixture life.
• Sealed housing with a Gore-Tex® ventilation plug.
• Controllable output up to 1,150 watts.
• Equipped with a dimming knob for manual light output adjustment.
• Features a Repeater Bus interface for control with a Gavita EL Controller (sold separately).
• Connect up to 100 fixtures in a single daisy chain series, up to five daisy chains per EL controller output.
• A single EL controller output can control up to five 100-fixture daisy chains.

• The Gavita® CT 1930e is the first LED to directly replace HPS.
• Fits seamlessly into existing HPS layouts.
• Highly energy-efficient delivering serious growing power.
• Designed as a 1:1 layout replacement for the Gavita Pro 1000e DE HPS.
• Compatible with wiring and electrical requirements for most indoor growing environments.
• Limits the cost and downtime required to convert facilities of every size.
• Delivers more light in a broader spectrum with up to 20% energy savings compared to Gavita 1000 W DE and single-ended HPS fixtures.*
• Compatible with Gavita EL Master Controllers (sold separately) and most building automation systems.
• Embedded controller technology enables control of up to 2,000 fixtures per EL Master control channel.
• Voltage: 277-480 V.

*based on average wattage of each fixture.

• The world’s most powerful metal halide (MH) grow light.
• Ideal for all phases of plant growth.
• Perfect for experienced growers who demand high-quality plant production.
• Keeps plants compact, producing large, colorful fruits, vegetables, and flowers.
• Shortens the vegetative state by one week, allowing for one extra crop per year.
• As close as you can get to natural sunlight.

• Designed to maximize plant growth by optimizing the three necessary lighting components.
• Provides a quality spectrum that maximizes plant quality and high yields.
• Included e-ballast provides a consistent and stable power supply to the lamp for reliability of operation.
• Reflector focuses all available light produced by the lamp and targets the canopy of the plants with a uniform distribution of photons.
• Will provide the highest quality plants and yields for many years with proper system maintenance.
• Includes HORTILUX 600W Ceramic HPS and HORTILUX 600W Blue Metal Halide lamps.

• Supports full-cycle cultivation of leafy greens and microgreens.
• Features a sleek form-factor, broad-spectrum light, and world-class energy efficiency.
• An average PPFD up to 260 µmol/m2/s over a 2' x 4' (61 x 122 cm) area with an 8" (20 cm) mounting height above canopy.
• Includes seven lighting modules and covers 56 square feet (5.2 square meters) of canopy.
• Allows mounting as close as five inches (12.7 centimeters) from the plant canopy.
• Enables quick and easy deployment with a one-to-many design connecting up to ten modules to one power supply.
• Designed for a wide range of vertical farming applications.
• Voltage: 120 to 277 V.

• High-performance top lighting designed for commercial growers.
• Ideal for those wanting to push high-PPFD cultivation.
• Suitable for experimental applications or treatments.
• Light output PPF: 1,700 µmol/s.
• Efficacy: 2.7 µmol/J @ 277 AC.
• AC input power: 631 W @ 277 V AC.
• Certifications: UL 8800, UL 1598 Wet Location, DLC.
• Spectrum: PhysioSpec Indoor™.
• Size: 47 inches (119 centimeters).
• Voltage: 120 to 277 volts.

• A full-cycle top lighting LED solution for high bay growing environments.
• Ideal for greenhouse supplemental lighting or indoor sole-source lighting.
• Builds on previous generation’s performance with nearly a 45% increase in PPF levels and a 18% increase in efficacy.
• Spectrum: PhysioSpec Greenhouse™.
• Light Output PPF: 1,700 µmol/s.
• Efficacy: 2.7 µmol/J.
• AC Input Power: 631 W @ 277 V AC.
• AC Input Voltage: 120 - 277V AC, 347 - 480V AC, 50/60 Hz.
• Light Distribution 120°.
• Mounting Height ≥ 18 inches (45.7 centimeters) above canopy.
• Certifications: UL 8800, UL 1598 Wet-Location, DLC.
• Actual dimensions (L x W x H): 46.1 x 2.9 x 3.3 inches (117.2 x 7.4 x 8.3 centimeters).

• A full-cycle top lighting LED solution for high bay growing environments.
• Ideal for greenhouse supplemental lighting or indoor sole-source lighting.
• Builds on previous generation’s performance with nearly a 45% increase in PPF levels and a 18% increase in efficacy.
• Spectrum: PhysioSpec Greenhouse™.
• Light Output PPF: 1,700 µmol/s.
• Efficacy: 2.7 µmol/J.
• AC Input Power: 631 W @ 277 V AC.
• AC Input Voltage: 120 - 277V AC, 347 - 480V AC, 50/60 Hz.
• Light Distribution 120°.
• Mounting Height ≥ 18 inches (45.7 centimeters) above canopy.
• Certifications: UL 8800, UL 1598 Wet-Location, DLC.
• Actual dimensions (L x W x H): 46.1 x 2.9 x 3.3 inches (117.2 x 7.4 x 8.3 centimeters).
