AC / Dehumidification / Humidification

This excellent quality humidifier features a multi-directional fogging head. The coverage is from 160 to 320 sq ft, depending on humidification requirements and ceiling height. Maximum output is 75 pints per day. Commercial-grade motor for years of use. Connects directly to your water supply with your own hookup (uses 1/4 in tubing). Operates at 62 dBA. Measures 12.2 in tall x 12.2 in diameter. 110 V/60 Hz/0.9 Amps. We recommend using a Titan Controls® Eos® 1 with this product!

The Ideal-Air™ Pro Series Ultra Sonic Humidifier is designed with ultra-sonic transducers to supply ultra-fine water particles. This is to help form a more balanced humidity field over your plant's entire canopy. Ideal-Air™ Pro Series Ultra Sonic Humidifier plates are made from cold-rolled steel and a stainless steel box with a standard water inlet with overflow safety switch, reservoir drain outlet, sediment filter, LED display and humidity control (30%–90%). This unit is designed to produce up to 150 pints per day of ultra-fine mist. 115 V, 60 Hz and 2.7 Amps. We recommend all Ultra Sonic Humidifiers be ducted, using 4 in PVC or 4 in DWV plastic pipe works best. Units should not be run without ducting or the top of the unit may be covered in water and shut off. Please don’t fill the unit through the discharge piping outlets. Doing this will overfill the tank and prevent the unit from creating humidity. The unit should only be filled through the provided hose and float valve to ensure proper water level and correct operation.

"The Ideal-Air Dehumidifiers are now rated at AHAM standards (80°F, 60% Relative Humidity). There is no change to the unit itself, only to the temperature and humidity at which the reading is being taken from. Previously they were rated at a higher temperature and humidity level based on hydroponic industry standard usage (86°F, 80% Relative Humidity). They will now be rated at AHAM standards based on the recent US Department of Energy ruling. Rated at 120 pints per day at 86°F/80% RH, now rated 60 Pint @ 80°F, 60% RH Quick maintenance with easy filter access that is removable and washable. Low temperature defrosting. Easy to move with built-in handles and wheels. Features a LED display panel. Removable water tank with an automatic shutoff when the reservoir is full. Internal condensate pump for easy water disposal. Can also be plumbed for permanent drainage. Tank reservoir capacity is 10 liters or 21 pints. 7 Amps/680 W/271 CFM. 115 V."

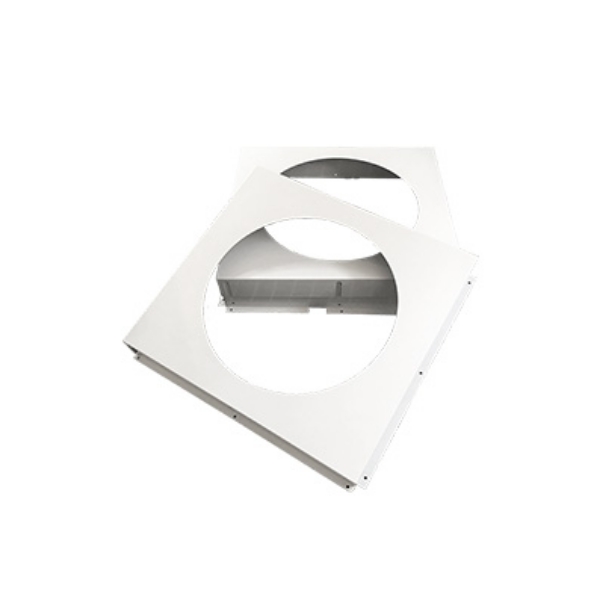

Duct Kit for Quest 335 and 335 277 V.

Compatible Products:

• Quest 335 [4042500].
• Quest 335 277 V [4042600].

• World's Most Energy-Efficient: The Quest 506 208/230V dehumidifier removes 500 pints per day at 9.2 pints per kilowatt hour, surpassing the Quest 335.
• Advanced M-CoRR™ Technology: Utilizes patented multi-coil refrigeration design to recycle excess heat, providing high efficiency and reduced heat output.
• Environmentally Friendly: Uses R-454B refrigerant with a significantly lower Global Warming Potential (GWP), contributing to a more sustainable future.

@ 80°F | 60% RH

• Capacity: 500 Pints/Day
• Efficiency: 9.2 Pints/kWh
• Supply Voltage: 208-230 V
• Current Draw: 9.9 Amps (230 V) | 10.9 Amps (208 V)

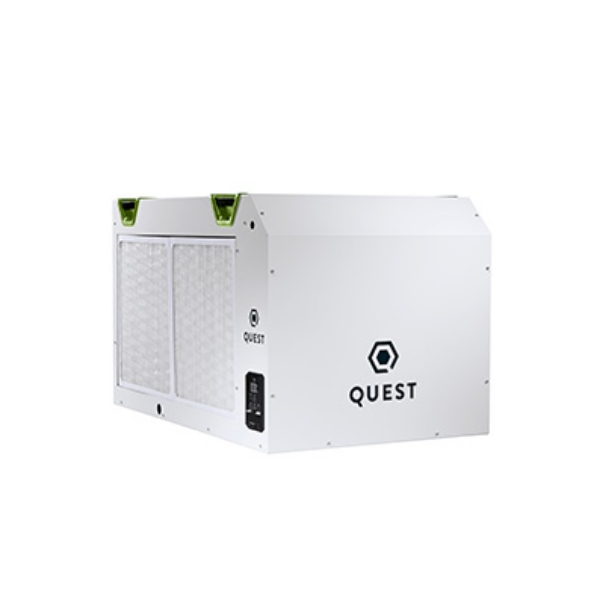

• World's Most Energy-Efficient: The Quest 506 277V dehumidifier removes 500 pints per day at 9.2 pints per kilowatt hour, surpassing the Quest 335.
• Advanced M-CoRR™ Technology: Utilizes patented multi-coil refrigeration design to recycle excess heat, providing high efficiency and reduced heat output.
• Environmentally Friendly: Uses R-454B refrigerant with a significantly lower Global Warming Potential (GWP), contributing to a more sustainable future.

@ 80°F | 60% RH

• Capacity: 500 Pints/Day
• Efficiency: 9.2 Pints/kWh
• Supply Voltage: 277V
• Current Draw: 8.2 Amps

@ 80°F | 60% RH

• Water removal: 730 pints | 345 liters | 91.3 gallons
• Efficiency: 8.3 pints/kWh
• Supply voltage: 480 V, 3 phase, 60 Hz
• Amps: 4.9
• Energy factor: 3.9 L/kWh
• Operating temp: 56°F min – 95°F max
• Air filter: MERV-13 (Qty 2)
• Dimensions (L x W x H): 44.8 x 28.9 x 27.4 in (113.8 x 73.4 x 69.6 cm)

• Superior MERV13 filtration removes harmful contaminants like dust, pollen, mold, bacteria, and some viruses.
• Helps prevent cross-contamination and unhealthy conditions.
• Essential for maintaining safer air quality in your environment.
• Protects internal components of Quest dehumidifiers ensuring long-lasting performance and equipment durability.
• Size: 18 x 18 x 2 inches (45.72 x 45.72 x 5.08 cm).

• High-capacity dehumidification: Designed for areas needing higher-capacity equipment to eliminate condensation and related safety hazards.
• Flexible water removal: Features an internal condensate pump capable of lifting and moving water up to 17 feet vertically and 30 feet horizontally.
• User-friendly controls: Equipped with an onboard digital dehumidistat adjustable from 20 to 80% RH, with positive "On" and "Off" settings.

@ 80 F / 60% RH

• Capacity: 195 Pints/Day
• Efficiency: 6.1 Pints/kWh
• Supply Voltage: 115 V
• Current Draw: 12 Amps

• Superior MERV13 filtration removes harmful contaminants like dust, pollen, mold, bacteria, and some viruses.
• Helps prevent cross-contamination and unhealthy conditions.
• Essential for maintaining safer air quality in your environment.
• Protects internal components of Quest dehumidifiers ensuring long-lasting performance and equipment durability.
• Size: 16 x 20 x 2 inches (40.64 x 50.8 x 5.08 cm).

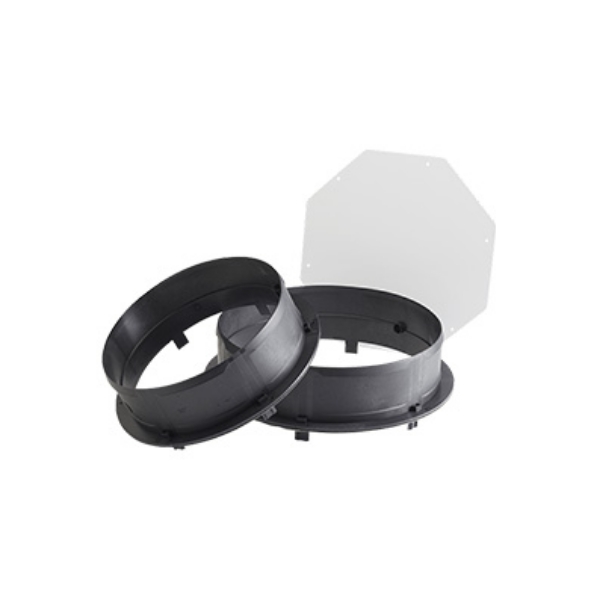

Includes:

• 10 inch (25.4 cm) Round Supply Collar (1).
• 12 inch (30.48 cm) Round Return Collar (1).
• Block off plate.

Compatible Products:

• Quest Hi-E Dry 120 [4036730].
• Quest Hi-E Dry 195 [4036710].

• Offers flexibility in dehumidifier installation.
• Conveniently removes condensate from your dehumidifier.
• Moves water up to 12 feet vertically and 20 feet total.
• Features a 2-quart reservoir.

• High-capacity commercial dehumidifier featuring patented M-CoRR technology.
• Provides industry-leading efficiency by recycling excess heat and minimizing heat output.
• Operates on 277V with low amp draw, eliminating the need for costly buck-boost transformers.

@ 80 F | 60% RH

• Capacity 506 Pints/Day
• Efficiency 8.1 Pints/kWh
• Supply Voltage 277V
• Current Draw 10 Amps

• A high-efficiency unit designed for industrial facilities, including grow rooms.
• Uses advanced M-CoRR technology to provide maximum efficiency while reducing heat output.
• Features filter compensation technology for consistent air flow, even as filters clog

@ 80 °F | 60% RH

• Capacity: 350 Pints/Day.
• Efficiency: 8.5 Pints/kWh.
• Supply Voltage: 277 V.
• Current Draw: 6.8 Amps.

• A 100-pint dehumidifier designed for small spaces and projects.
• Features M-CoRR technology for maximum energy efficiency, saving you money.
• Equipped with premium MERV-13 filtration for healthier air and better control over your environment.

@ 80 °F | 60% RH

• Capacity: 100 Pints/Day.
• Efficiency: 7.5 Pints/kWh.
• Supply Voltage: 110-120 V, 60 Hz.
• Current Draw: 5 Amps.
